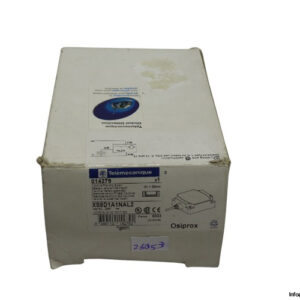

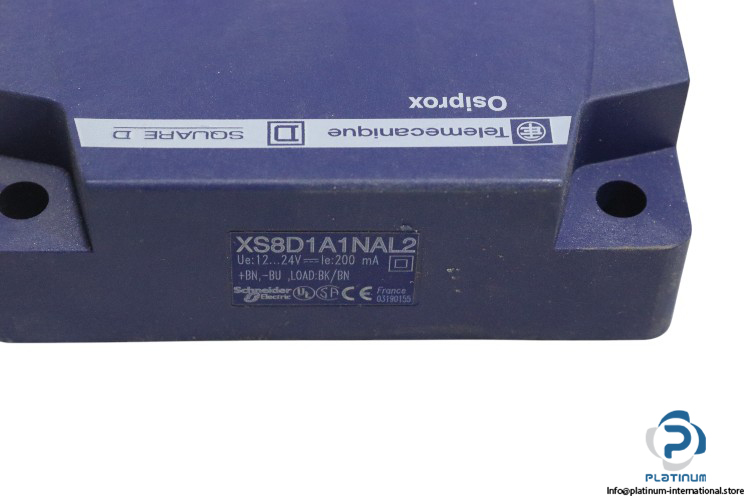

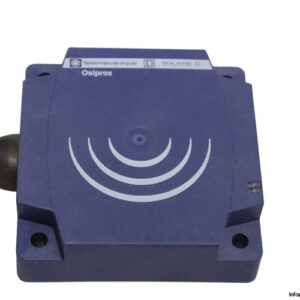

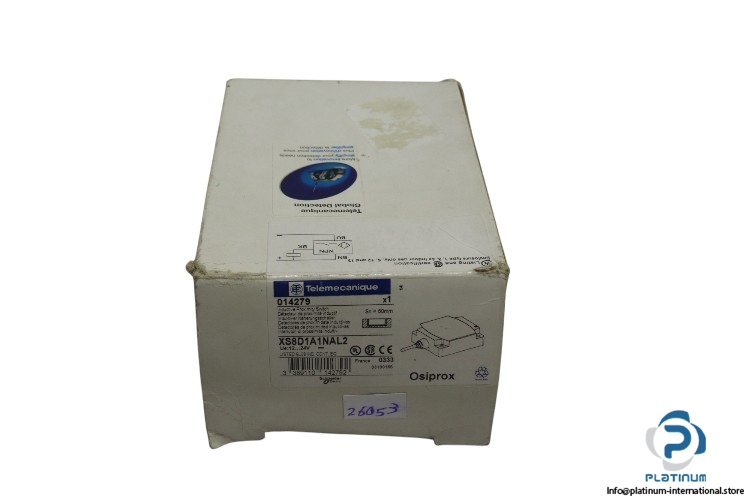

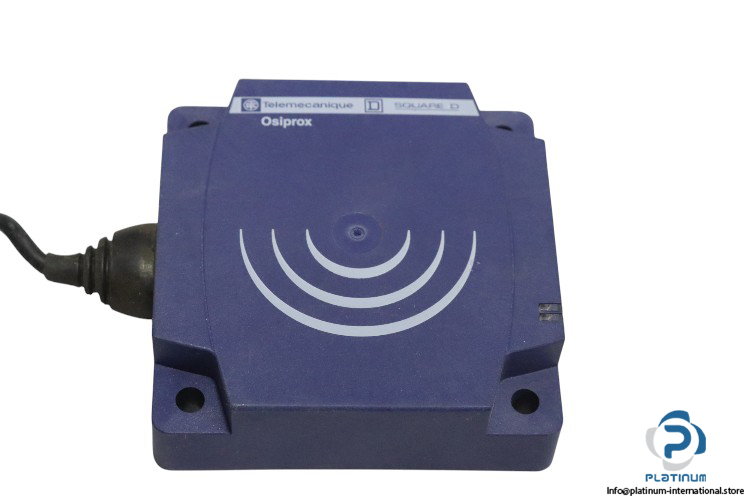

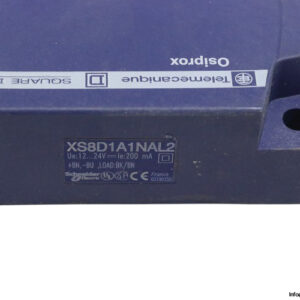

Telemecanique / Schneider Electric XS8D1A1NAL2 “ Inductive Proximity Switch Sensor
The Telemecanique XS8D1A1NAL2 is a high-performance inductive proximity switch sensor from the Osiprox XS series, designed for general-purpose applications. With a nominal sensing distance of 60 mm and NPN output, it offers reliable detection in harsh industrial environments.
- Manufacturer: Telemecanique / Schneider Electric
- Type: Inductive Proximity Switch Sensor
- Model: XS8D1A1NAL2

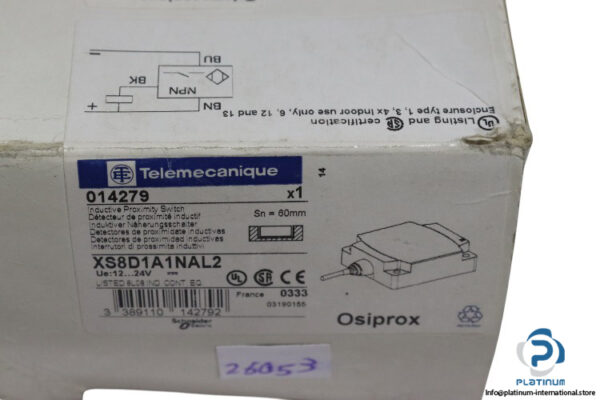

- Order No.: 014279
Technical Information:
- Range of Product: Osiprox XS
- Series Name: General Purpose
- Nominal Sensing Distance (Sn): 60 mm
- Voltage Limits: 12 to 24 V DC
- Switching Capacity (Ie): 200 mA
- Current Consumption, No-Load: 10 mA
- Detector Acceptance: Non Flush Mountable
- Output Type: NPN
- Output Function: 1 Normally Open
- Switching Frequency: 150 Hz
- Body Type: Fixed
- Material: Plastic
- Enclosure Material: PBT

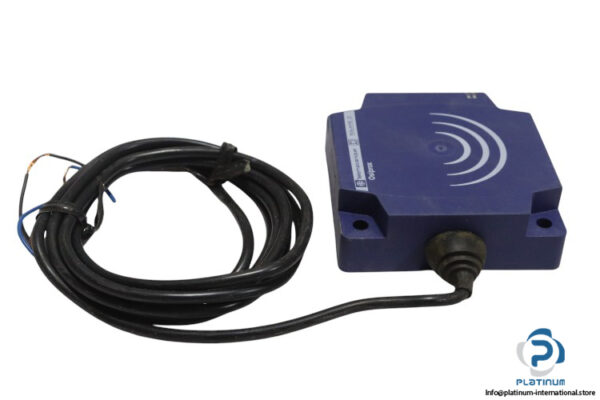

- Connection: Cable 2m, 3 Wire
- Dimensions: 26 x 80 x 80 mm
- Degree of Protection: IP68
- Ambient Temperature: -25 to 70 °C
