Manufacturer: SCHNEIDER TELEMECANIQUE

Type: Photoelectric Sensor

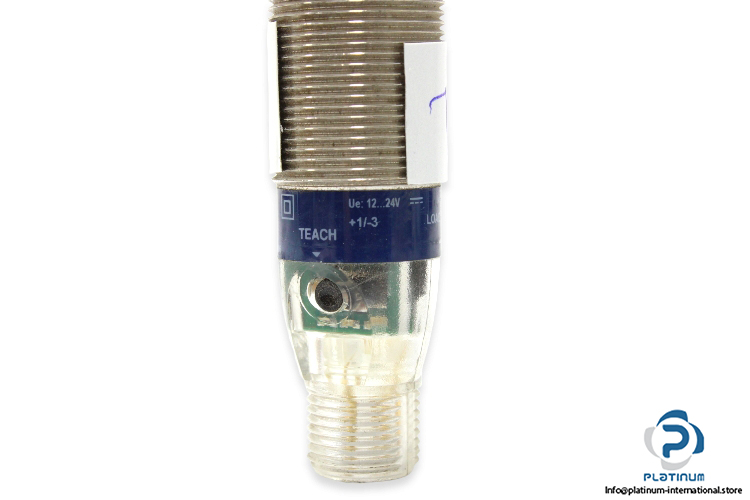

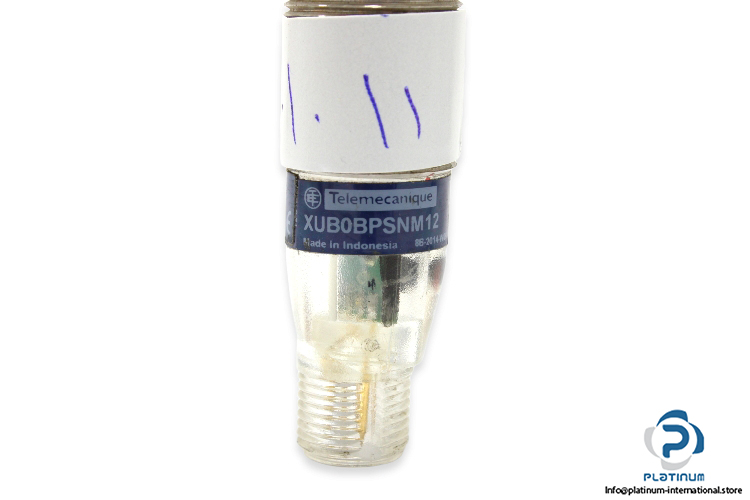

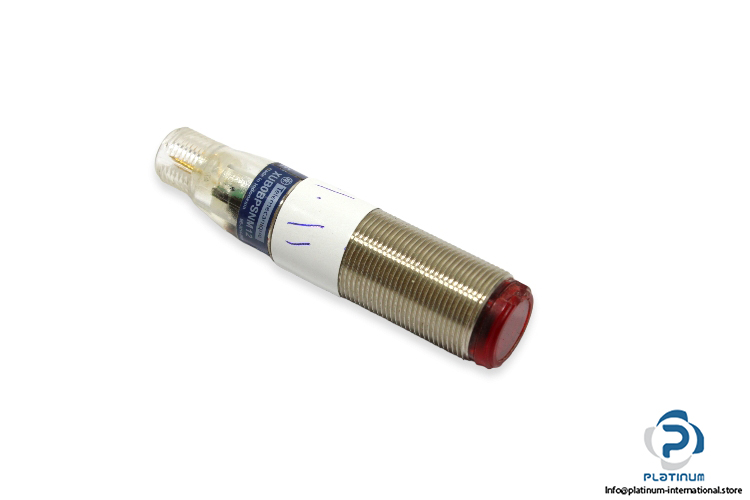

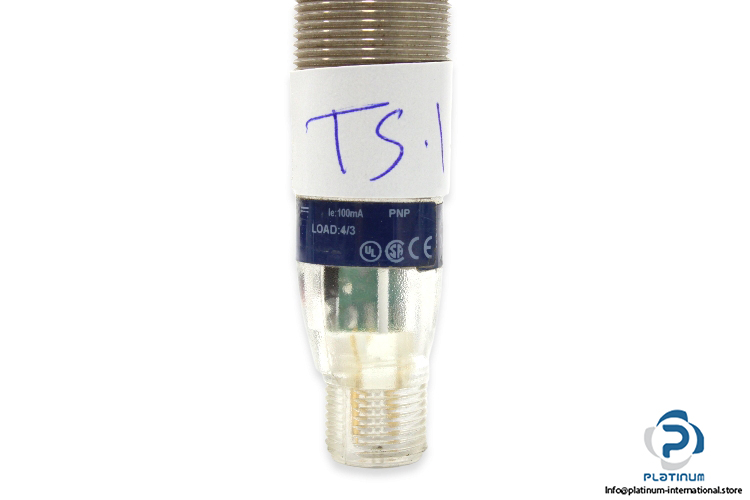

Model: XUB0BPSNM12

Sensing Range: 0 … 20 m

• 3 m polarised reflex need reflector XUZC50
• 20 m thru beam need a transmitter XUB0BKSNM12T
• 12 m diffuse with background suppression
• 3 m diffuse

Operating Voltage: 12 … 24 V DC

Electrical Design: PNP

Switching Output: Normally open/Normally closed

Max. Delay Response: 2 ms

Connector type: M18,

Dimensions: M12 Connector,4-pin

Housing Material: Nickel-plated brass

Operating Temperature: -25 … 70°C
