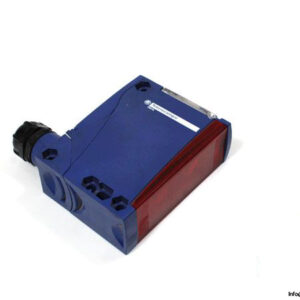

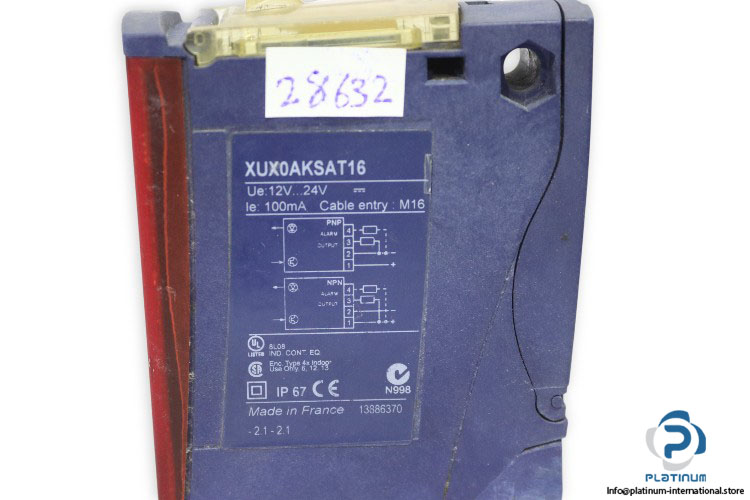

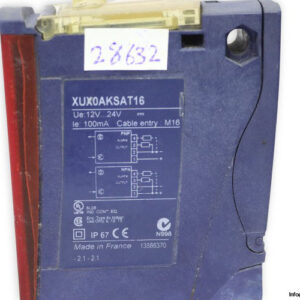

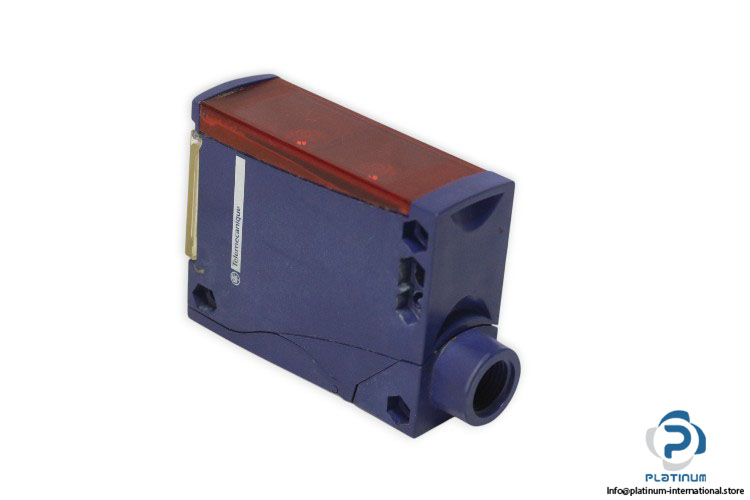

TELEMECANIQUE XUX0AKSAT16 MULTIMODE SENSOR

The Telemecanique XUX0AKSAT16 is a compact and versatile multimode sensor, engineered to deliver precise detection with multiple sensing modes including polarized reflex, thru-beam, and diffuse. Its robust design and high protection class make it suitable for demanding industrial environments.

Manufacturer: Telemecanique
Type: Multimode Sensor
Model: XUX0AKSAT16

Technical Information

• Sensing Range: 0 / 40 m
• 11 m Polarized Reflex: Requires Reflector XUZC50
• 40 m Thru Beam: Requires Transmitter XUX0AKSAT16T
• 1.3 m Diffuse: With Background Suppression
• 2 m Diffuse
• Sensor Design: Compact 92 x 71
• Operating Voltage: 12 / 24 V DC
• Rated Switching Current: 100 mA
• Switching Output: Normally Open (NO) / Normally Closed (NC) Programmable
• Cable Entry: 1x M16x1.5 Cable Gland
• Housing Material: Plastic
• Protection Class: IP65 / IP67
• Ambient Temperature: -25 / 55 °C
• Dimensions: 92 x 31 x 77 mm
