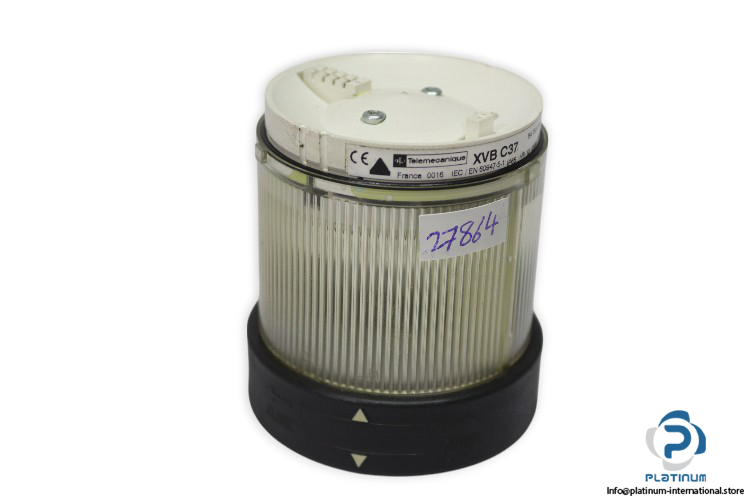

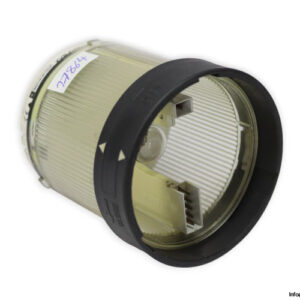

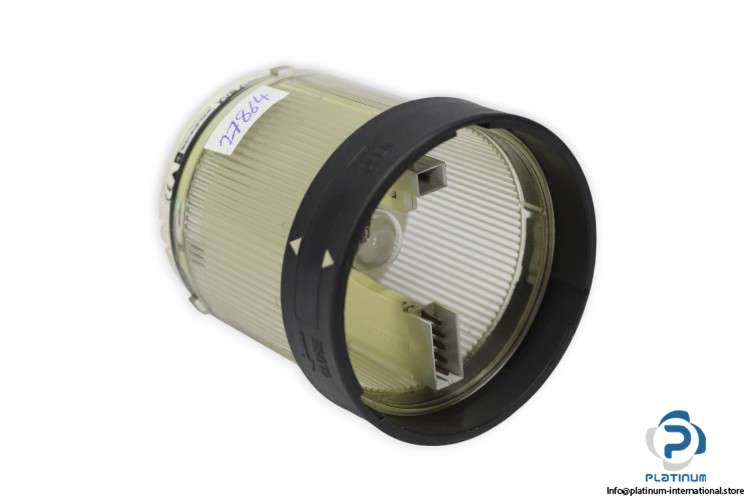

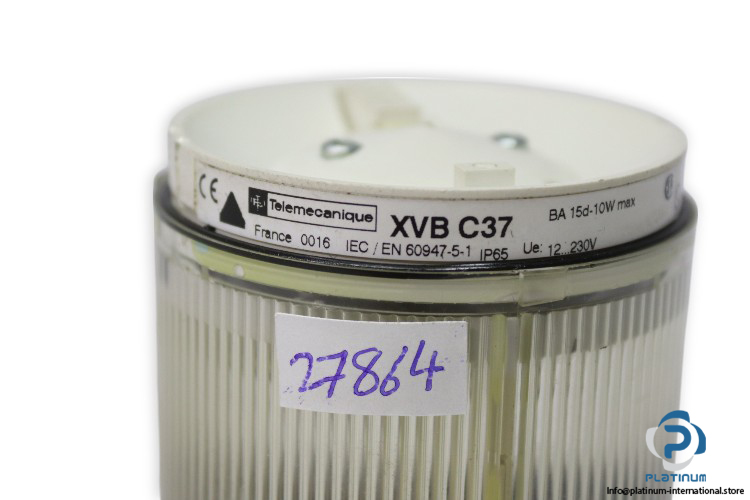

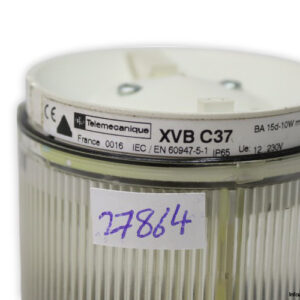

Manufacturer: TELEMECANIQUE

Type: Indicator Bank

Model: XVB C37

Part No.: BA 15d-10W / 0016

Range of Product: Harmony XVB Universal

Beacon or Indicator Bank Unit Type: Illuminated Unit

Signalling Type: Steady

Mounting Diameter: 70 mm

Component Name: XVBC

Material: Polycarbonate

Light Source: Bulb not included, clear

Bulb Type: Incandescent BA 15d / Protected LED

Rated Supply Voltage (Us): 250 V

Maximum Power: 7 W

Rated Insulation Voltage (Ui): 250 V

Rated Impulse Withstand Voltage (Uimp): 4 kV

Connections “ Terminals: Screw Clamp Terminals

Ambient Temperature for Operation: (-25 / 50 °C) LED, (-25 / 70 °C) Incandescent

This TELEMECANIQUE XVB C37 indicator bank unit from the Harmony XVB Universal series is built for reliable visual signaling in industrial applications. With a 70 mm mounting diameter and rugged polycarbonate construction, it accommodates both incandescent and protected LED bulbs. Ideal for steady signaling tasks, it supports high-voltage operation up to 250 V and offers robust insulation and impulse withstand capability. Screw clamp terminals ensure secure connections in variable environments.
