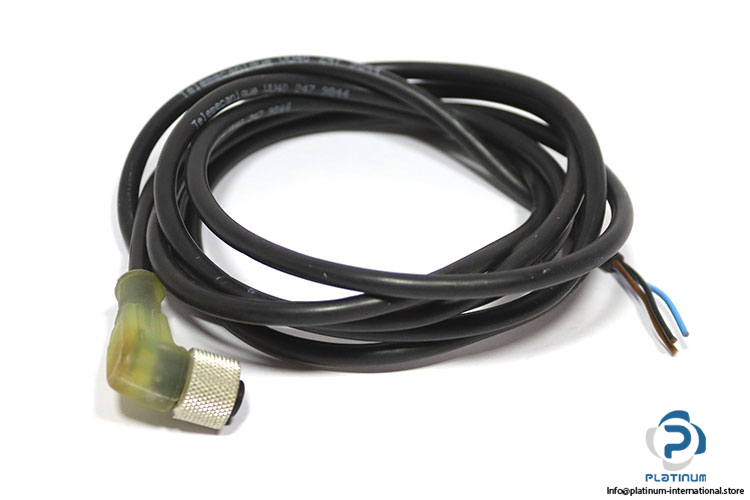

Telemecanique XZC-P1340L2 Sensor / Actuator Cable

The Telemecanique XZC-P1340L2 is a durable and reliable sensor and actuator cable designed for industrial automation systems. It features an angled M12 connector, PVC cable construction, and IP67 protection, ensuring stable signal transmission even in harsh environments.

Manufacturer: Telemecanique
Type: Sensor Cables / Actuator Cable

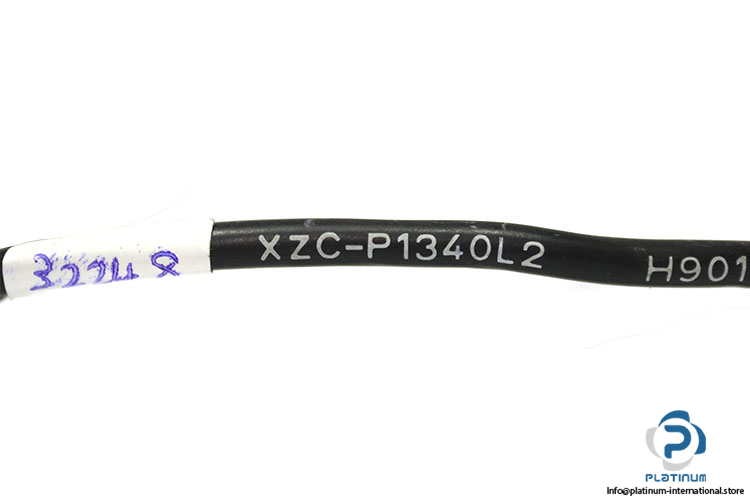

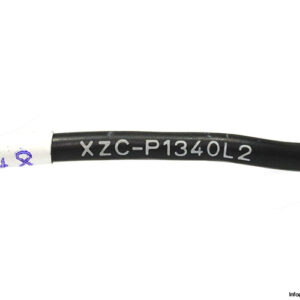

Model: XZC-P1340L2

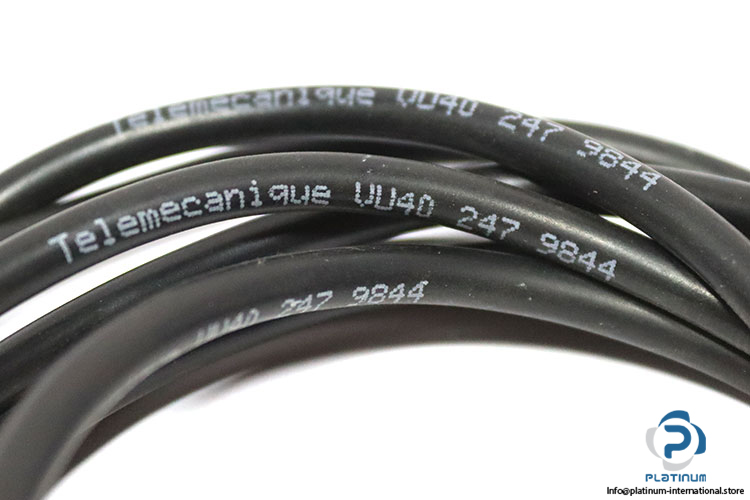

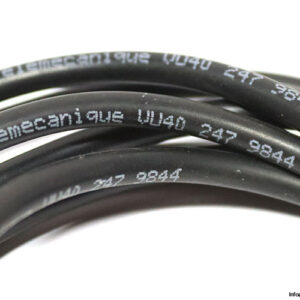

Code: H901, VU40 247 9844

Technical Information

• Pre Wired Connectors: XZ

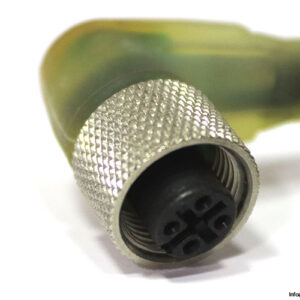

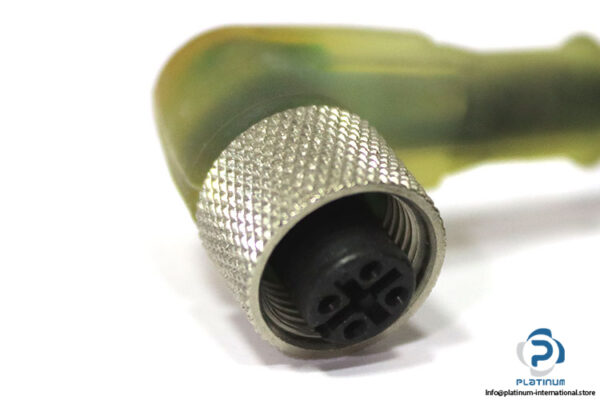

• Electrical Connection: M12 female, 4 pin, angled
• Protection Class: IP67
• Cable Type: PVC cable
• Cable Connector Fixing: Screw on
• Collar Material: Metal
• Status LED: 2 PNP LEDs
• Cable Length: 2 meters
• Cable Outer Diameter: 5.2 millimeters
• Cable Composition: 3 x 0.34 square millimeters
• Wire Insulation Material: PUR
• Rated Operational Voltage: 10 to 30 V DC
• Rated Current: 4 A
• Contact Resistance: 5000 micro ohm
• Minimum Insulating Resistance: 1 G ohm
• Ambient Operating Temperature: minus 40 to 80 degree Celsius static
