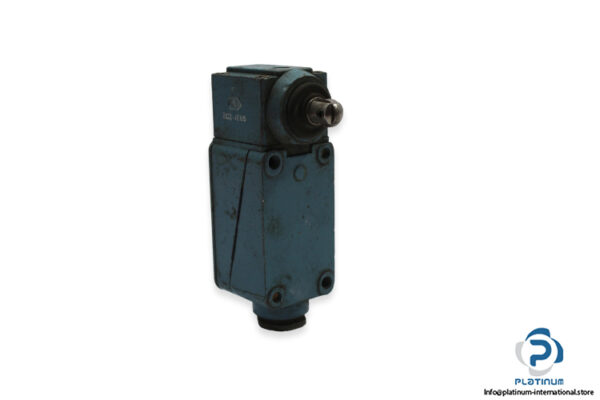

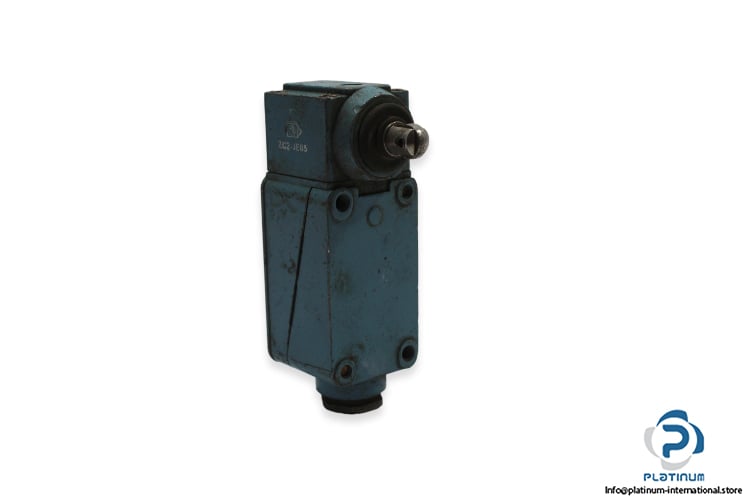

Manufacturer: TELEMECANIQUE

Type: Limit Switch

Device Short Name: ZC2J

Head Model: ZC2-JE85

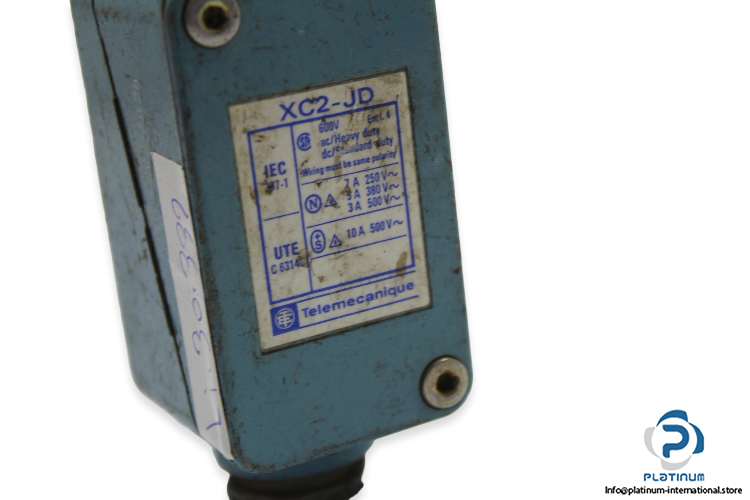

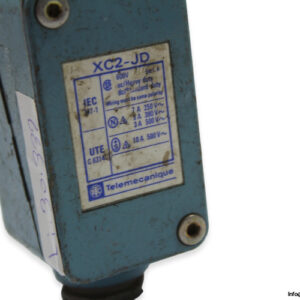

Product Compatibility: XC2-JD

Plug-in Body Model: ZC2-JD28 / ZC2-JD2

Contacts type and composition: 2 C/O

Contact Operation: Snap action

Actuator Type:

Switching Voltage max.: 240 V AC, 250 V DC

Contact Current max.: 3 A AC, 0.27 A DC

Electrical connection: Screw-clamp terminals 1 x 0.75…2 x 1.5 mm²

Protection Class: IP65

Ambient Operating Temperature: -40…70 °C
