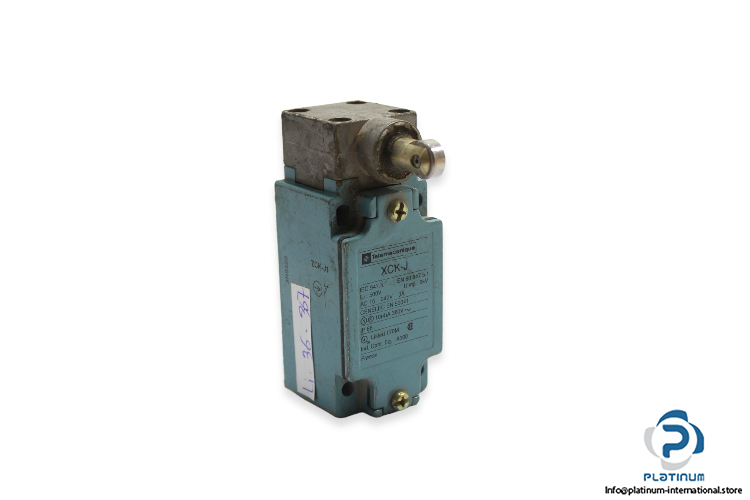

Manufacturer: Schneider Telemecanique
Type: Limit Switch
Device Short Name: ZCKJ

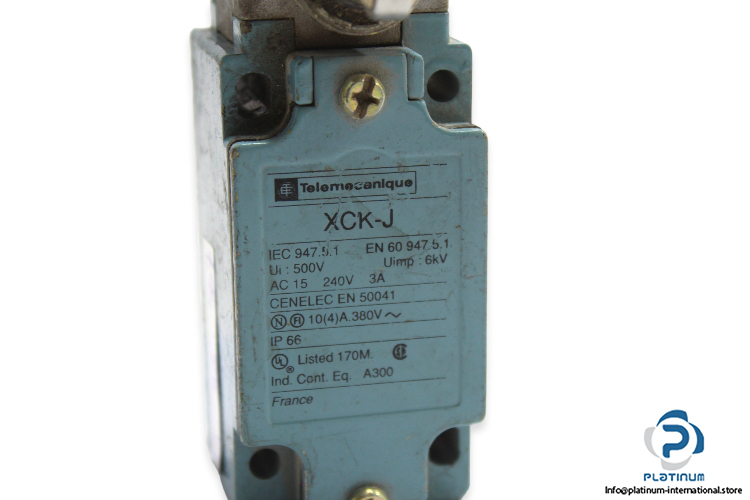

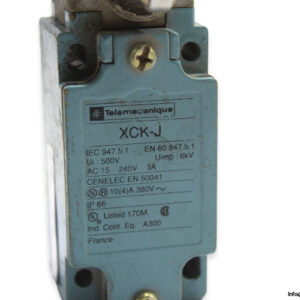

Product Compatibility: XCK-J

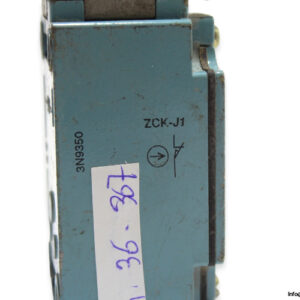

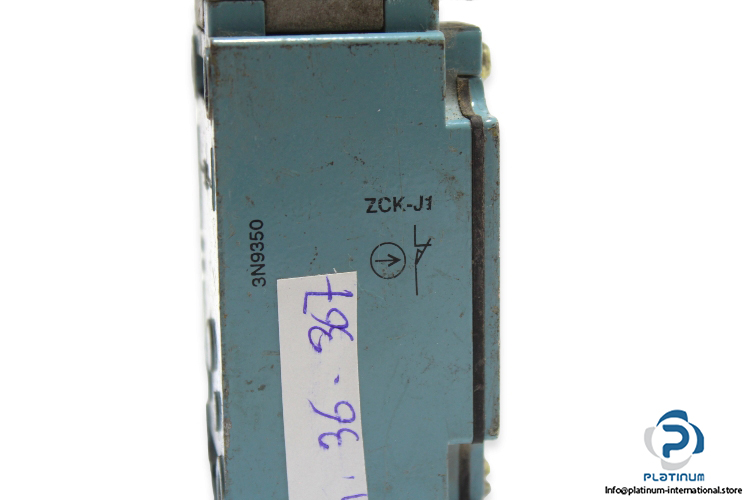

Body Model: ZCK-J1

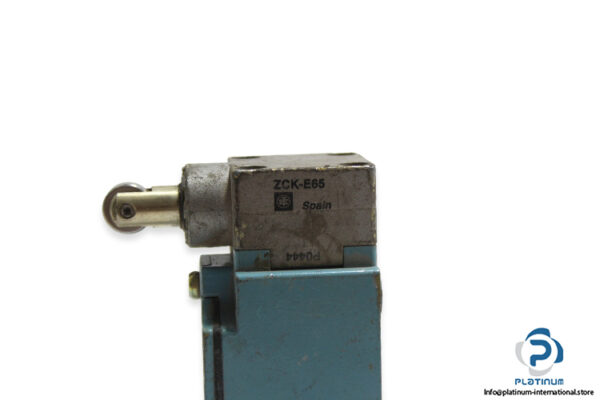

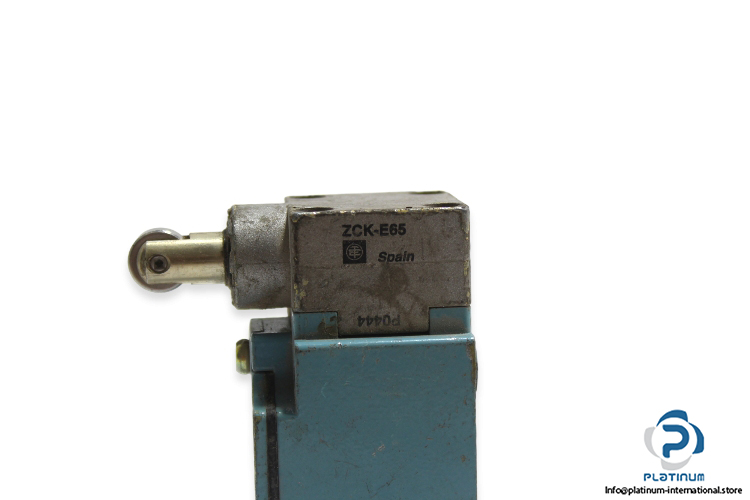

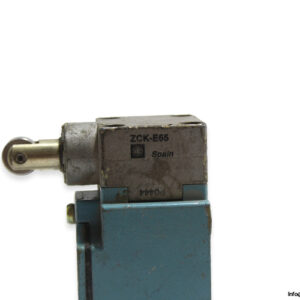

Head Model: ZCK-E65

Output Configuration: 1 Normally Open + 1 Normally Closed
Contact Operation: Snap Action
Actuator Type: Roller plunger
Switching Voltage Max.: 380 V AC
Contact Current Max.: 10 A
Number of Poles: 2
Connection: 1 entry tapped for Pg13.5 cable gland
Protection Class: IP66
Ambient Operating Temperature: -25 … 70 °C
Housing Material: Metal
Dimensions: 40 x 44 x 81.5 mm
