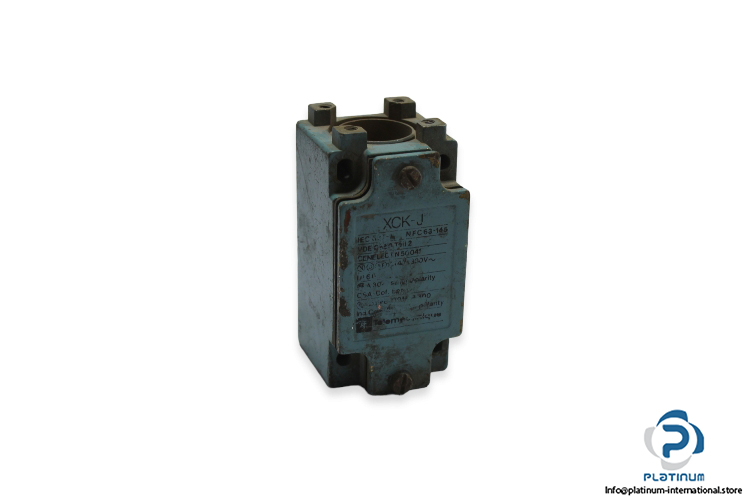

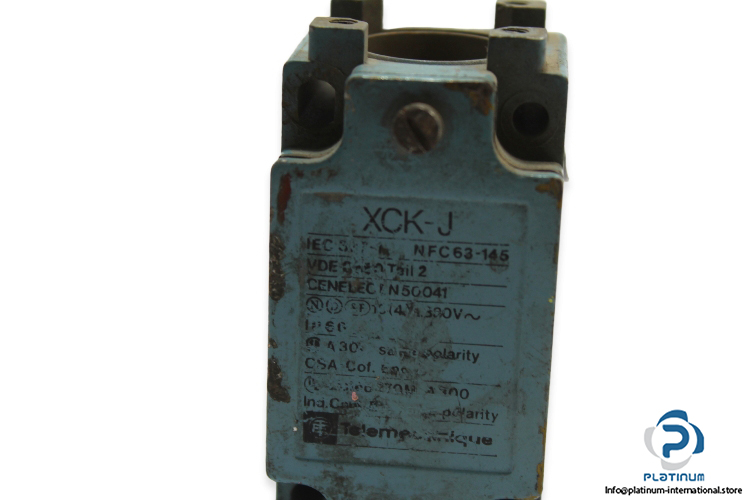

Manufacturer: TELEMECANIQUE

Type: Limit Switch

Device short name: ZCKJ

Product Compatibility: XCKJ

Model: ZCK-J6



Output Configuration: 1 NC + 1 NO

Contact Operation: Slow-break

Actuator Type:

Switching Voltage max.: 240 V AC, 250 V DC

Contact Current max.: 3 A AC, 0.27 A DC

Connection: Screw-clamp terminals 1 x 0.5…2 x 2.5 mm²

Protection Class: IP66

Ambient Operating Temperature: -25…70 °C
