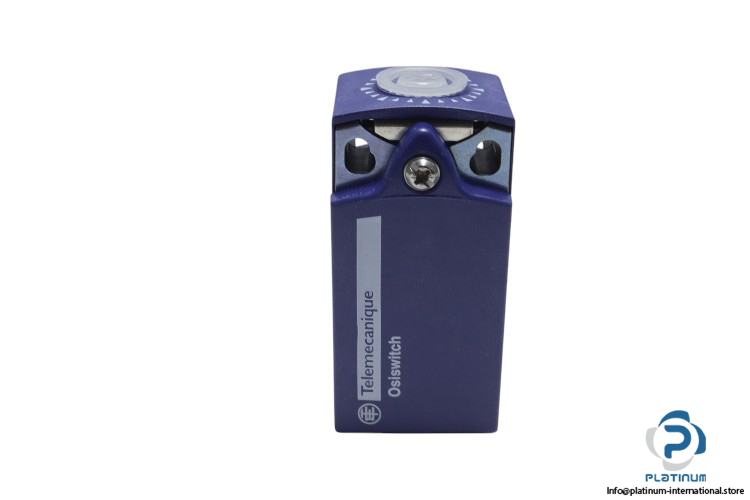

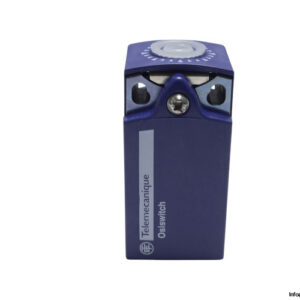

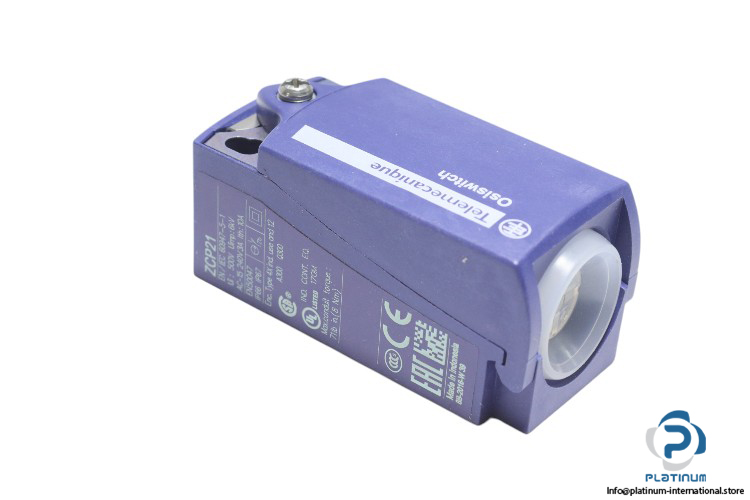

Telemecanique ZCP21 Limit Switch Body
The Telemecanique ZCP21 is a high-quality limit switch body designed for reliable mechanical position detection in industrial automation systems. Built with durable materials and compliant with international standards, it ensures precise operation and long service life.
Manufacturer: Telemecanique
Type: Limit Switch Body
Model: ZCP21

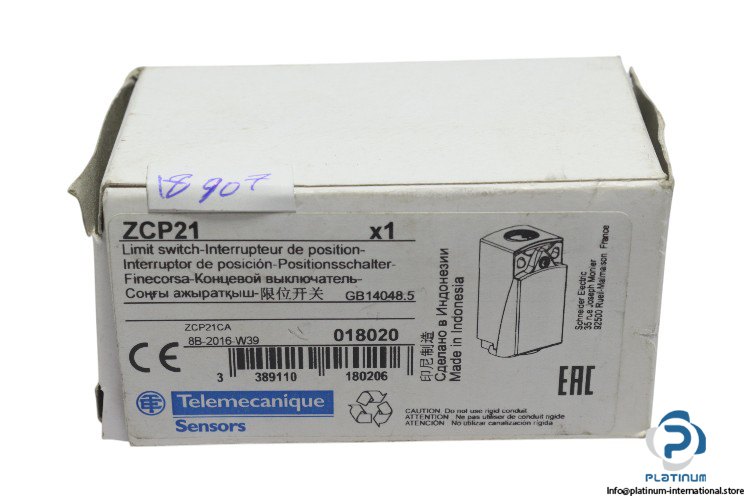

Part No.: 018020
Serial No.: 3 389110 180206

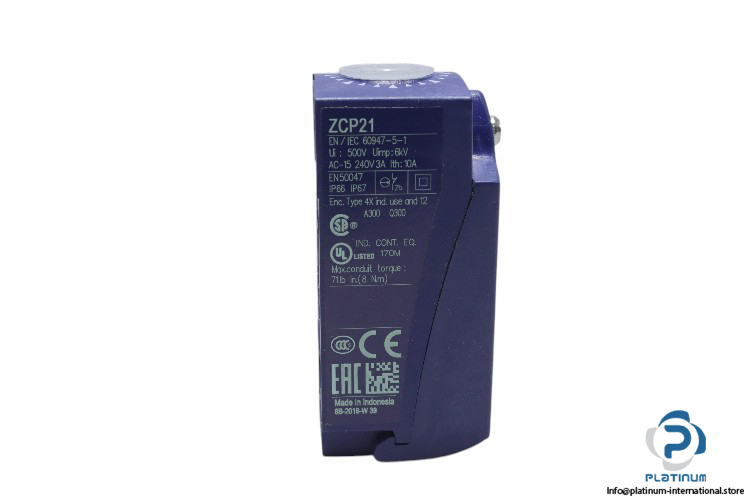

Technical Information
- Output Configuration: 1 Normally Open, 1 Normally Closed
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Thermal Current: 10 A
- Operational Current AC-15 at 240 V AC: 3 A
- Connection: Screw-clamp terminals, clamping capacity 1 x 0.34 to 2 x 1.5 mm²
- Standard: EN50047, EN/IEC60947-5-1
- Protection Class: IP66, IP67
- Ambient Operating Temperature: -25 to 70°C
- Housing Material: Plastic
