Manufacturer: Teli
Type: CCD Camera
Model: TV0441A2

Supply Voltage: 12 V DC
Current: 0.23 A

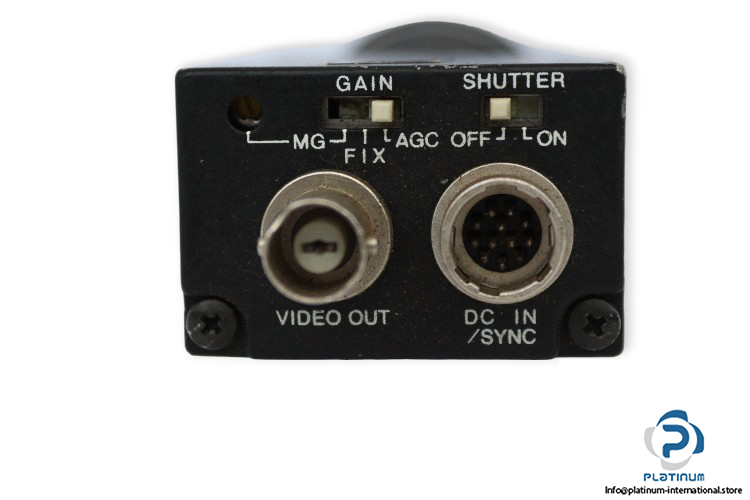

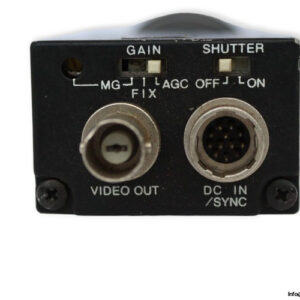

Connection: Video Out; one Pole/ DC IN SYNC; 12 Pins
TV System: CS8320BC
Image Sensor Active Pixel: 752 (H) X 582 (V)
Chip Size: 8.6 X 8.3 µm
Active Image Area: 6.4 (H) X 4.8 (V) mm
No. of Scanning Line: 625 Line
Aperture Range: 1 : 1.3

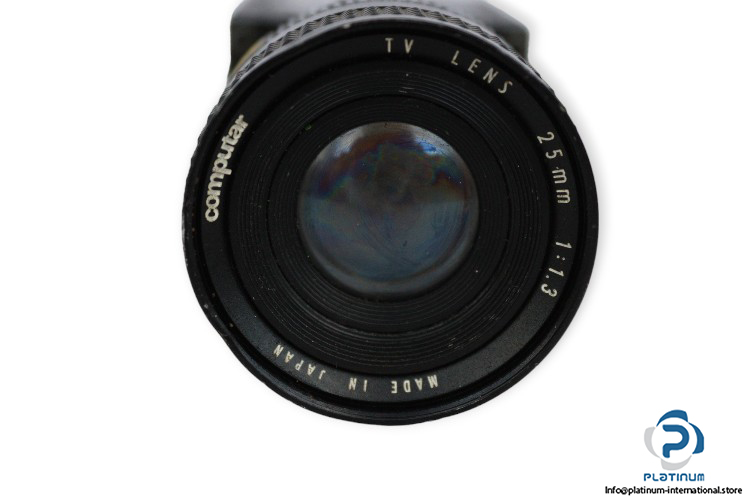

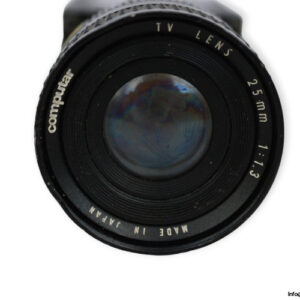

Focal Length: 25 mm
Scanning Frequency: 15.625 kHz ( Horizontal)/ 50 Hz (Vertical)
Resolution: 560 TV Lines (Horizontal)/ 575 TV Lines (Vertical)
Dimension: 78 X 29 X 44 mm
