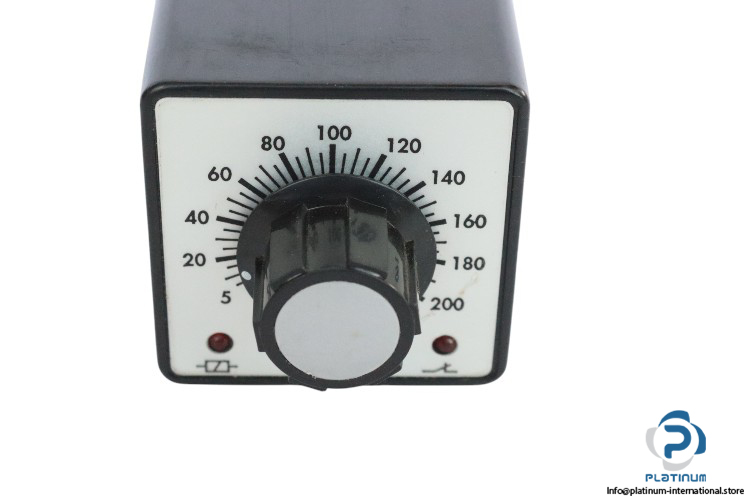

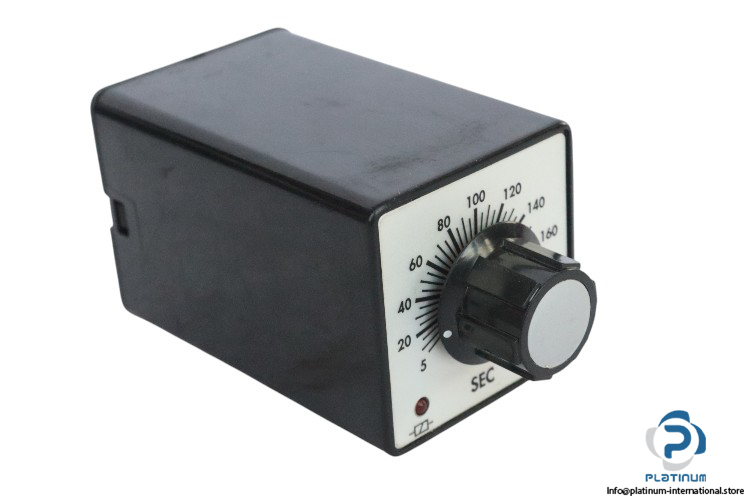

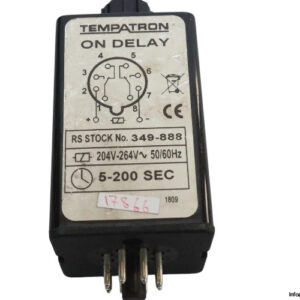

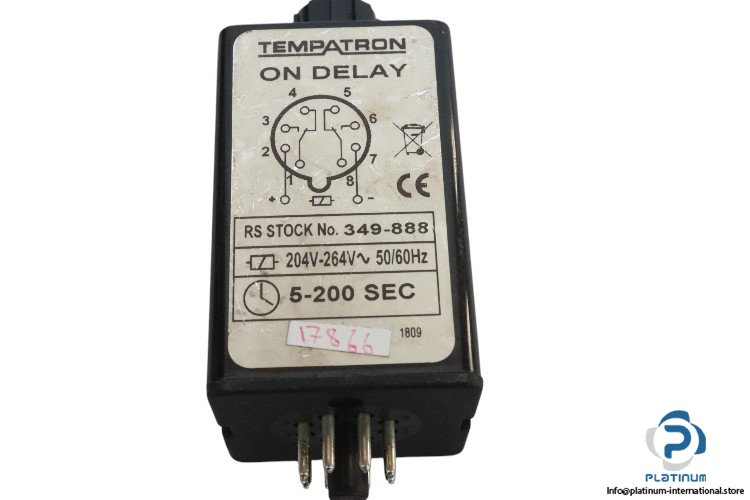

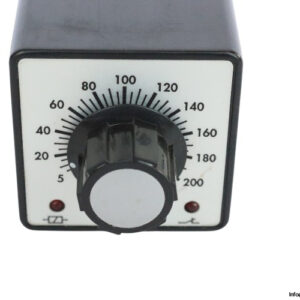

Tempatron Timer Relay 2BDE200SLP240VAC

Tempatron Timer Relay 2BDE200SLP240VAC is designed for industrial applications where precise timing control is required. It offers reliable performance and versatile features for timing functions with a wide voltage range and temperature resistance.

• Manufacturer: Tempatron
• Type: Timer Relay
• Product No.: 2BDE200SLP240VAC
• Part No.: 349888
• Series: 2B

Technical Data:

• Supply Voltage: 204 to 264 V AC
• Auxiliary Power Voltage: 240 V AC
• Frequency: 50/60 Hz
• Relay Output: 2 pole changeover contacts
• Power: 4 VA
• Time Functions: Delay on Energies
• Time Range: 5 to 200s
• Potentiometer: Local Potentiometer
• Housing: Plug in
• Number of Poles: 2
• Number of Pins: 8
• Operating Temperature: -10 to 60°C
• Enclosure Code: Case IP40
• Dimensions: 92 x 48 x 48 mm
