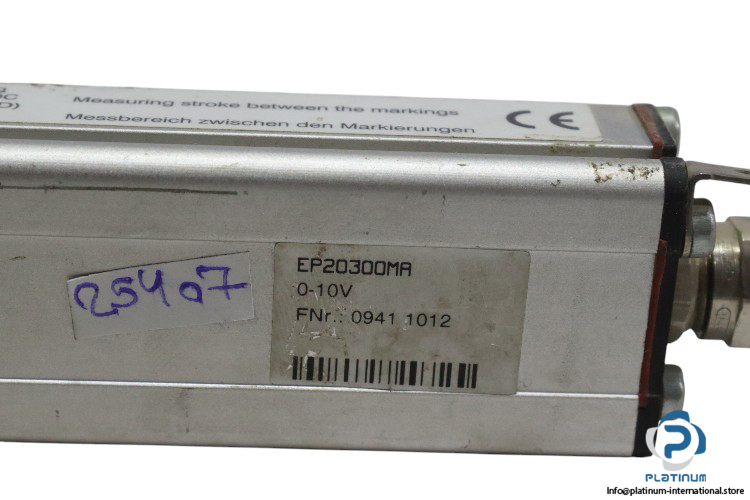

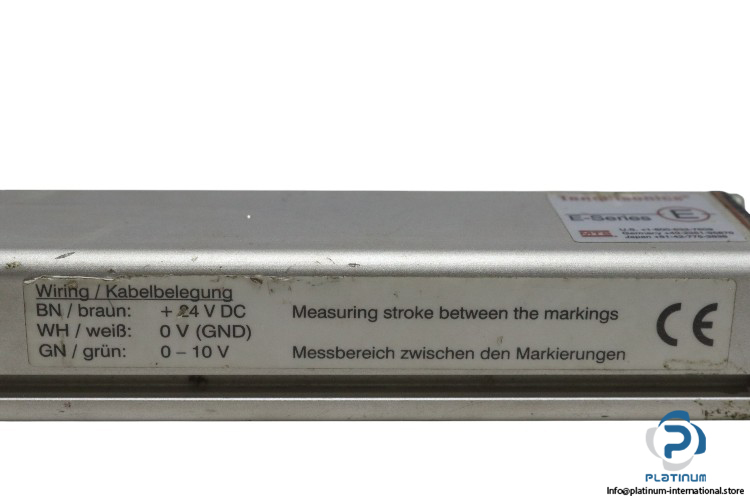

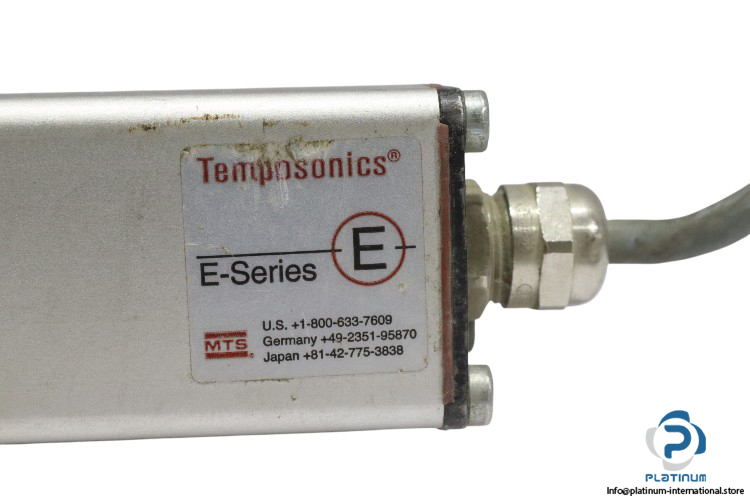

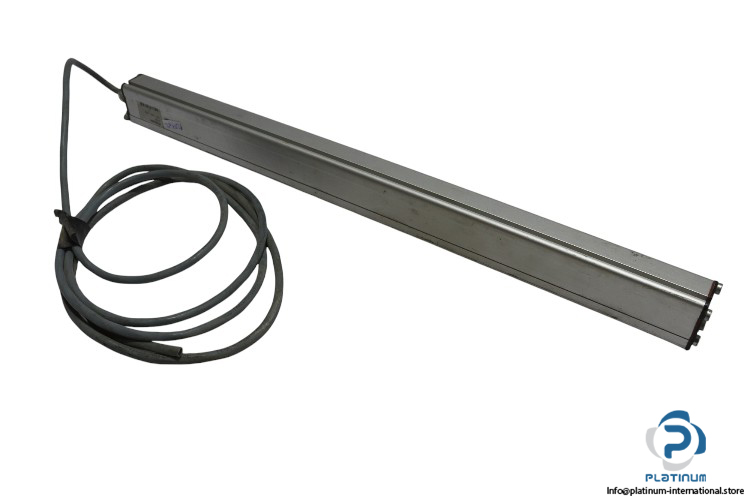

TEMPOSONICS EP20300MA Magnetostrictive Linear Position Sensor
The TEMPOSONICS EP20300MA Magnetostrictive Linear Position Sensor provides precise linear position measurement with high resolution and durability. Featuring a rugged aluminum housing and an IP67 protection class, it is designed for industrial applications that require reliability in harsh environments.
Manufacturer: TEMPOSONICS
Type: Magnetostrictive Linear Position Sensor
Model: EP20300MA
Part No: 0941 1012
Technical Information:
- Resolution: 0.02 micro m
- Stroke Length: 300 mm
- Rated Supply Voltage: 24 V DC
- Rated Current Consumption: 50 to 140 mA
- Analog Output Ratings: 0 to 10 V DC, 4 to 20 mA
- Connection: Cable Connector, M12, 5-Pin
- Material: Aluminum
- Protection Class: IP67
- Temperature Range: -40 to 75 °C
- Dimensions: 446 x 35.6 x 27 mm
