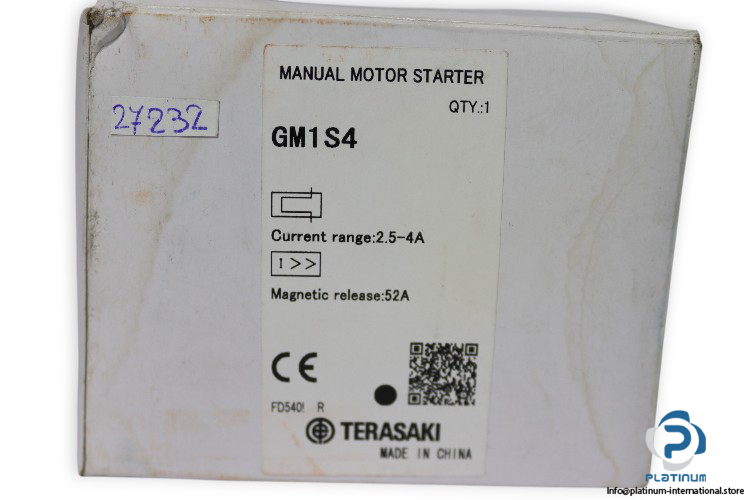

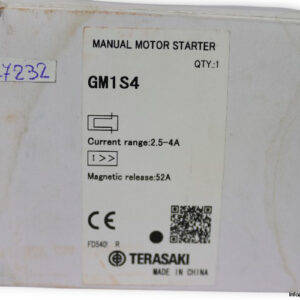

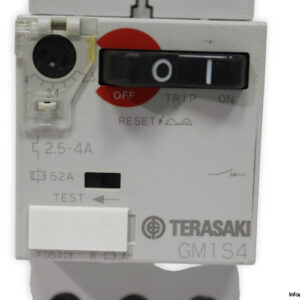

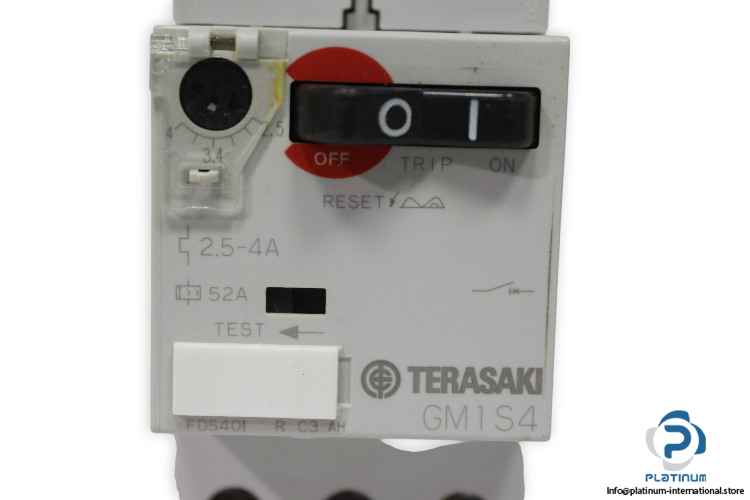

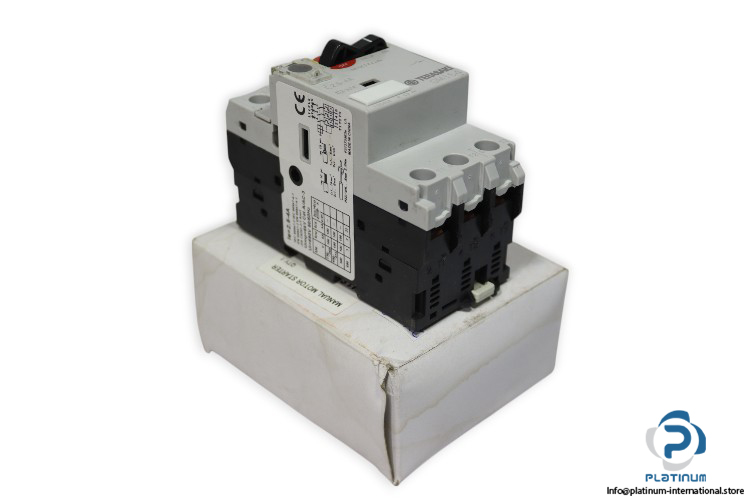

TERASAKI GM1S4 MANUAL MOTOR STARTER

The Terasaki GM1S4 is a compact and high-performance manual motor starter engineered for reliable motor protection and short-circuit performance. It is suitable for industrial electrical systems requiring precision current adjustment, robust breaking capacity, and compliance with international standards. Manufacturer: Terasaki
Type: Manual Motor Starter
Model: GM1S4
Ref. Code: FD5401 R

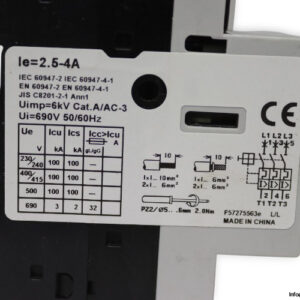

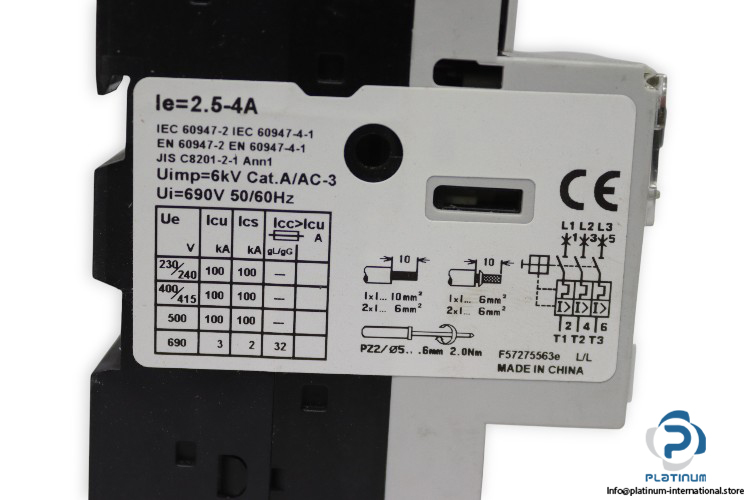

Technical Information

No. of Poles: 3
Rated Insulation Voltage (Ui): 690 V
Rated Frequency: 50/60 Hz
Rated Impulse Withstand Voltage (Uimp): 6 kV
Thermal Trip Adjustment Range: 2.5 to 4 A
Magnetic Release Current: 52 A
Power: 1.5 kW at (380“440 V AC)
Operational Short-Circuit Current Breaking Capacity (Ics): 415 V AC, 100 kA
Standard: IEC 60947-2, IEC 60947-4-1, EN 60947-2, EN 60947-4-1
