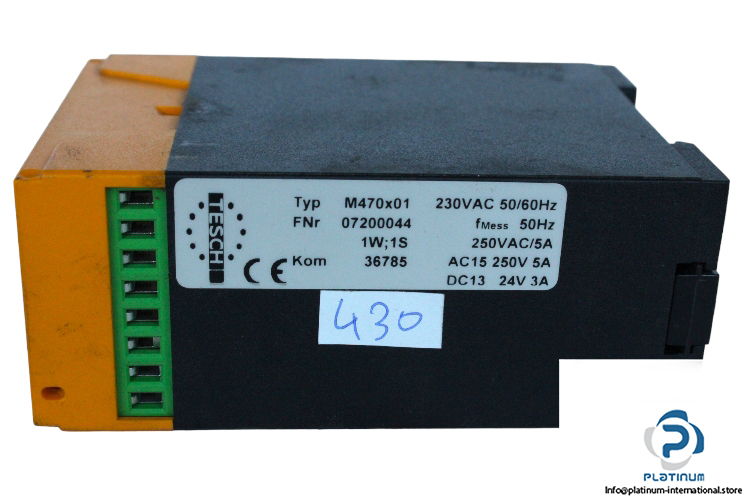

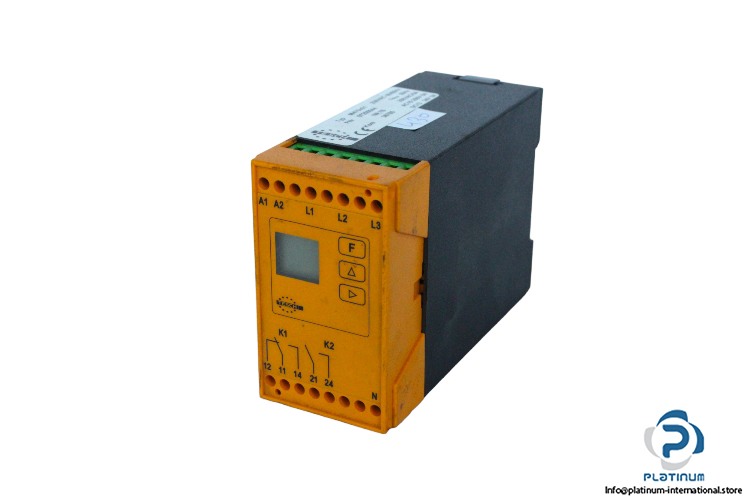

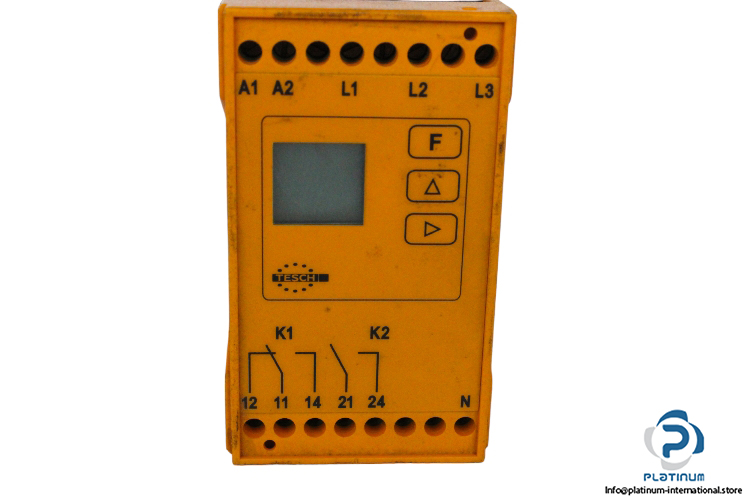

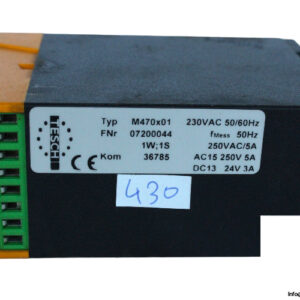

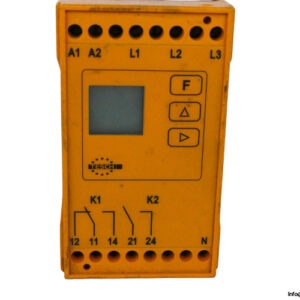

Manufacturer: Tesch

Type: Measuring Relay

Model: M470x01

Order No.: 072 00044

Nominal voltage: 230 V AC

Rated Frequency: 50 … 60 Hz

Frequency Mess: 50 Hz

Switching voltage max.: 250 V AC

Switching Current max. : 5 A

Output: 1 change-over contact, 1 normally open contact

Contact rating

AC-15: 250 V AC,5 A

DC-13: 24 V DC,3 A

Ambient temperature: -5 … +60 °C

Degree of protection: IP20

Connecting terminals: Terminal box with wire protection

Dimension: 45 x 109.5 x 75 mm
