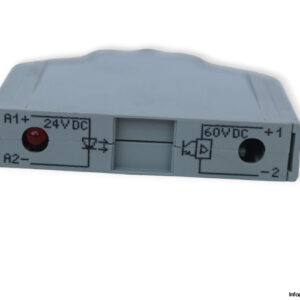

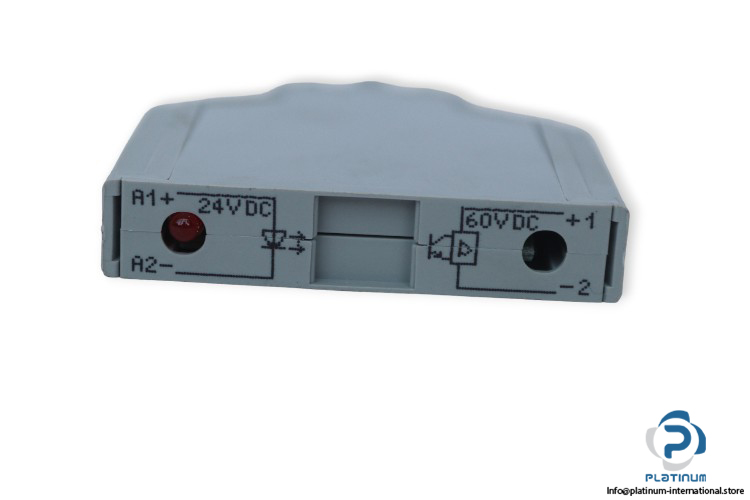

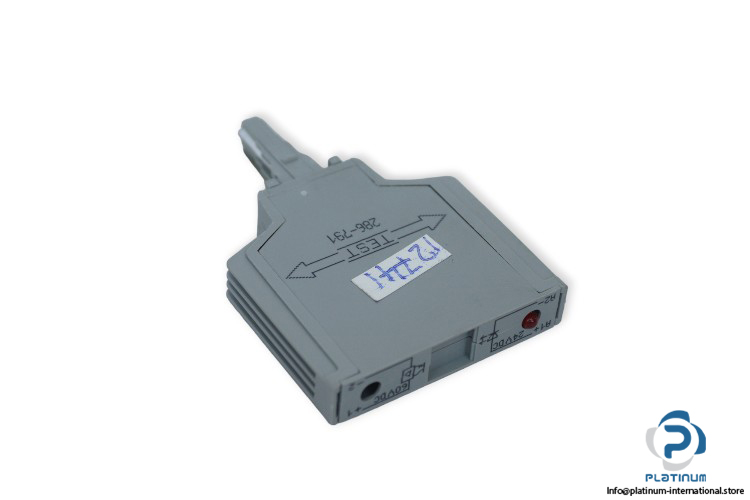

Optocoupler Module

The Optocoupler Module offers reliable isolation and signal transmission with a wide range of operational voltages and current handling capabilities. Designed with a 2-wire connection, it ensures seamless integration in a variety of systems, featuring IP20 protection and a red status indicator for easy monitoring.

• Type: Optocoupler Module

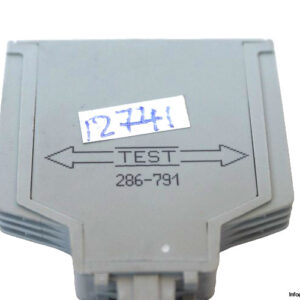

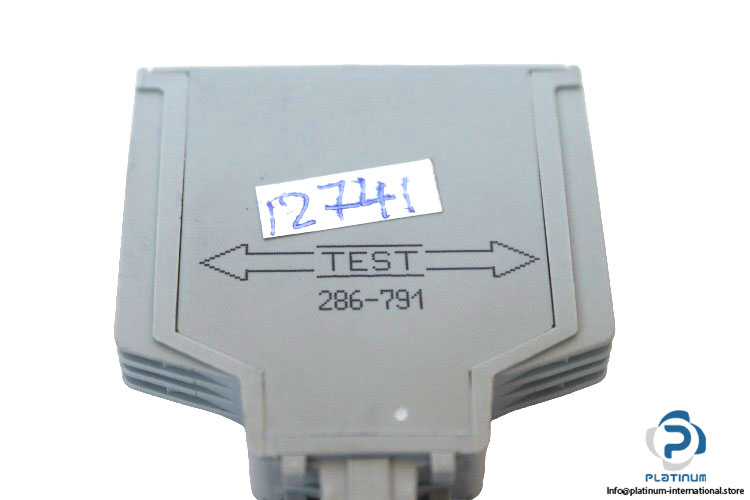

• Part No.: 286791

Technical Information:

• Nominal Input Voltage: 24 V DC
• Nominal Input Current at Un: 14 mA
• Output Voltage Range: 20 to 60 V DC
• Limiting Continuous Current: 0.1 A
• Connection: 2-wire connection
• Rated Voltage: 300 V
• Protection Type: IP20
• Frequency: 3 kHz
• Indicator: Red status indicator
• Module Width: 10 mm
• Color: Gray
• Ambient Operation Temperature: -25 to +40 °C
• Dimensions: 10 x 52 x 83 mm
