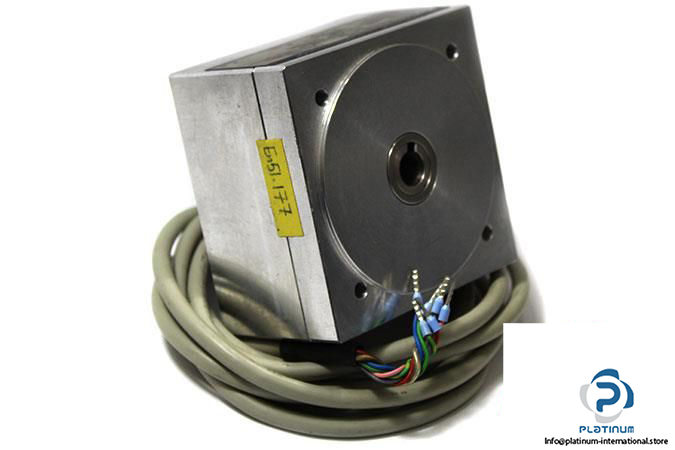

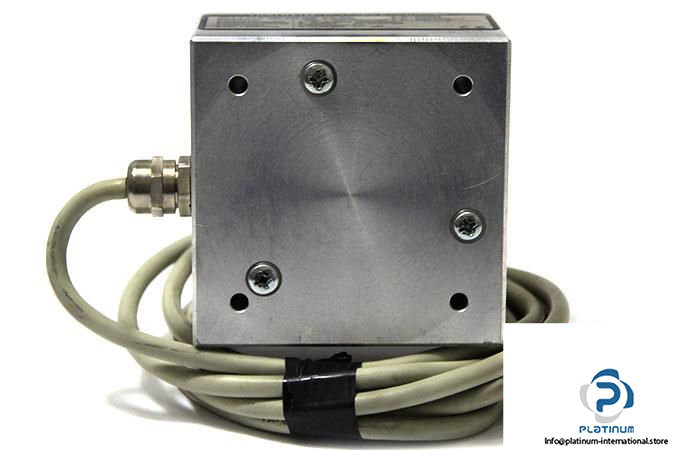

BAUMER THALHEIM ITD 3 A 4Y2 INCREMENTAL ENCODER
The Baumer Thalheim ITD 3 A 4Y2 is a high-precision incremental encoder designed for accurate motion control and positioning in demanding industrial environments. With a rugged design, this encoder offers reliable performance across various automation systems.
Manufacturer: Baumer Thalheim
Type: Incremental Encoder
Model: ITD 3 A 4Y2

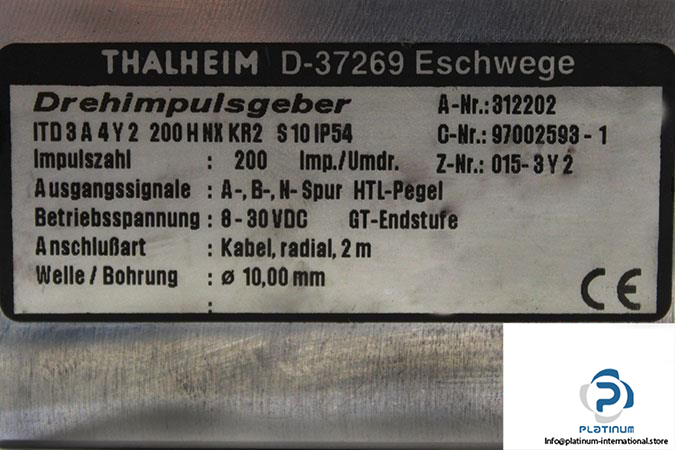

MRN: ITD 3 A 4Y2 200 H NX KR2 S 10 IP54
A No: 312202
C No: 97002593-1
Z No: 015-3y2
Technical Information

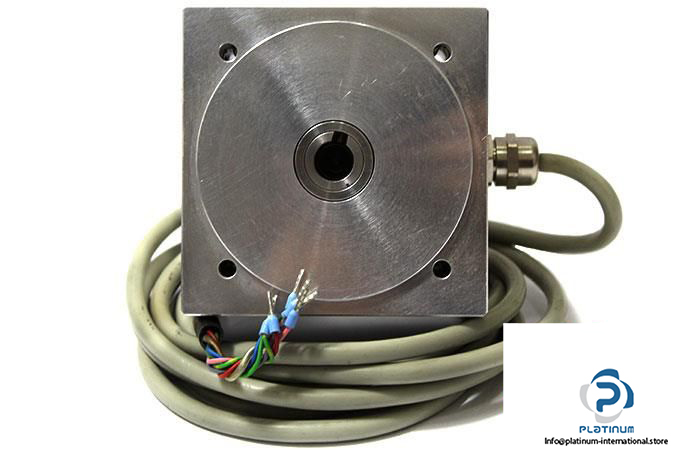

- Shaft Design: Hollow Shaft
- Shaft Diameter: 10 mm
- Voltage Supply: 8 / 30 VDC
- Resolution: 200 pulses per revolution (PPR)
- Output Circuit: Push-pull (HTL)

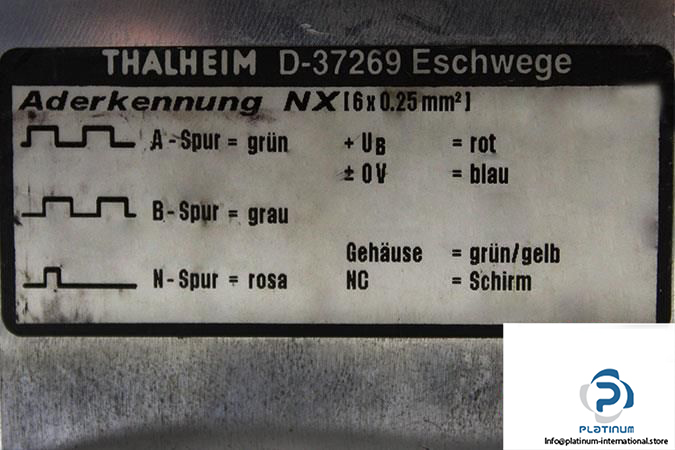

- Connection Type: Cable 6×0.25 mm, Radial, 2m
- Protection Class: IP54
- Temperature Range: -20 / 75 °C
