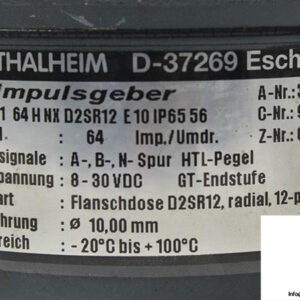

BAUMER THALHEIM ITD 4 A 4Y1 INCREMENTAL ENCODER
The Baumer Thalheim ITD 4 A 4Y1 is a high-precision incremental encoder engineered for robust industrial use. With a 64 PPR resolution and HTL push-pull output, it ensures reliable signal transmission under demanding conditions. Designed with a compact hollow shaft and radial connector, this encoder is suitable for space-constrained installations in automation and motion control systems.
Manufacturer: Baumer Thalheim
Type: Incremental Encoder
Model: ITD 4 A 4Y1

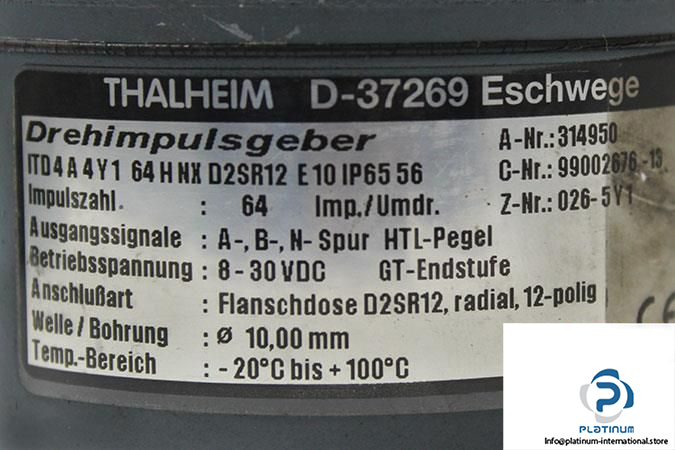

MRN: ITD 4 A 4Y1 64 H NX D2SR12 E 10 IP65 56
Technical Information

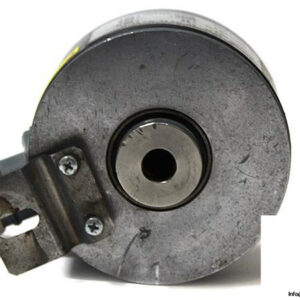

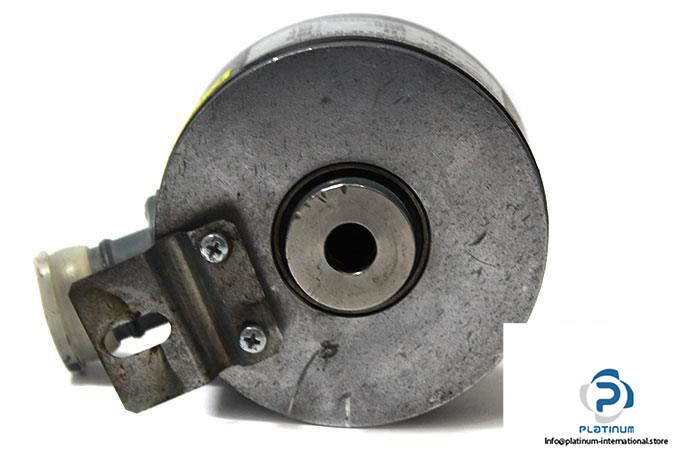

- Shaft Design: Hollow shaft
- Shaft Diameter: 10 mm
- Voltage Supply: 8 / 30 VDC
- Resolution: 64 pulses per revolution (PPR)
- Output Circuit: Push-pull (HTL)

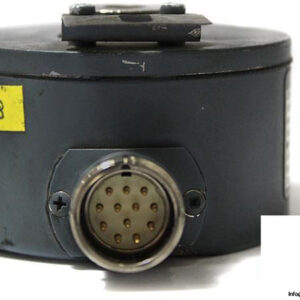

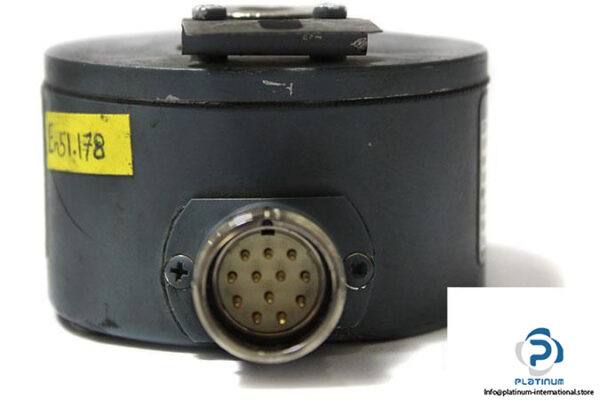

- Type of Connection: D2SR12, radial, 12 poles
- Protection Class: IP54
- Temperature Range: -20 / 100 °C
