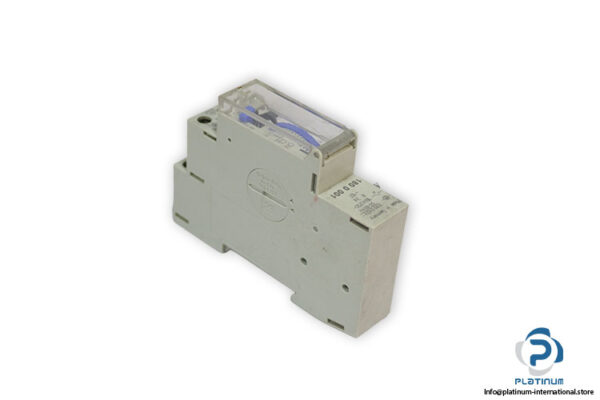

THEBEN SUL 180 a Time Switch

A high-precision quartz-controlled time switch designed for reliable daily scheduling in industrial, commercial, and building automation systems. Ideal for lighting control, HVAC equipment, and electrical loads requiring accurate switching cycles. Manufacturer: THEBEN
Type: Time Switch

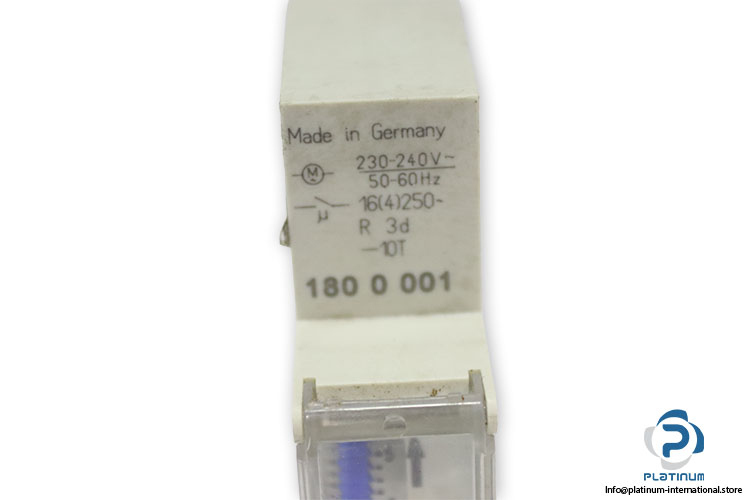

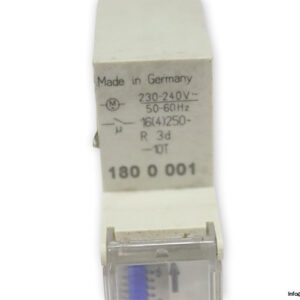

ID No.: 1800 0 001

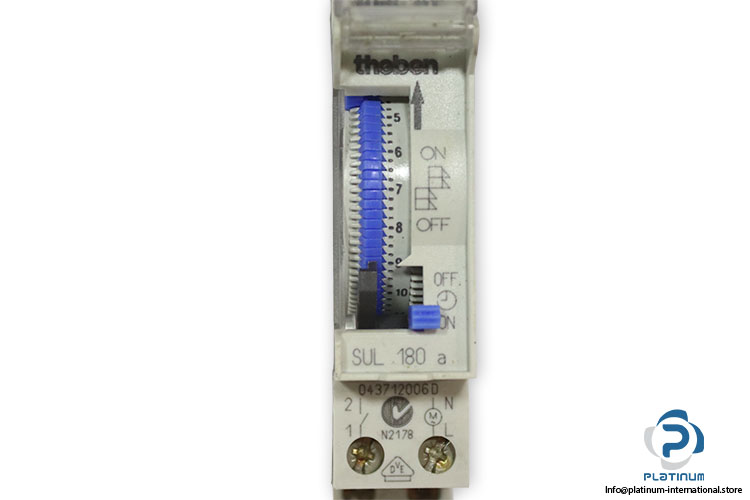

Model: SUL 180 a
Article / Order Code: 043712006D

Technical Information

• Voltage: 230“240 V AC
• Frequency: 50“60 Hz
• Switching Capacity: 16(4) A / 250 V
• Number of Channels: 1
• Width: 1 Module
• Installation Type: DIN Rail
• Type of Connection: Screw Terminals

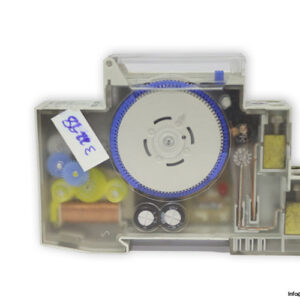

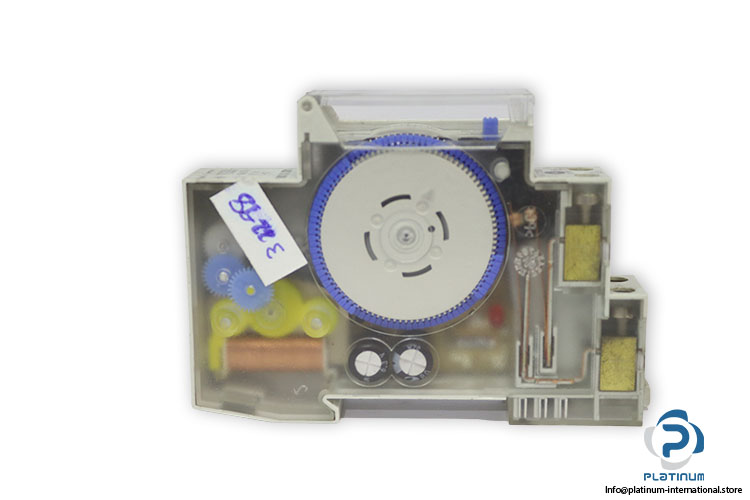

• Drive: Quartz-Controlled Stepper Motor
• Program: Daily Program
• Incandescent/Halogen Load: 1000 W
• Type of Contact: NO
• Switching Output: Potential-Free and Phase-Independent
• Number of Switching Segments: 96
• Stand-by Consumption: 0.5 W
• Test Approval: VDE
• Housing Material: High-Temperature Resistant, Self-Extinguishing Thermoplastic
• Protection Type: IP20
• Ambient Temperature: -10 °C / +50 °C
• Dimensions: 90 x 65.5 x 34 mm
