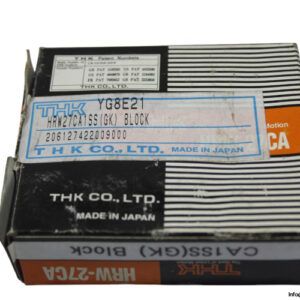

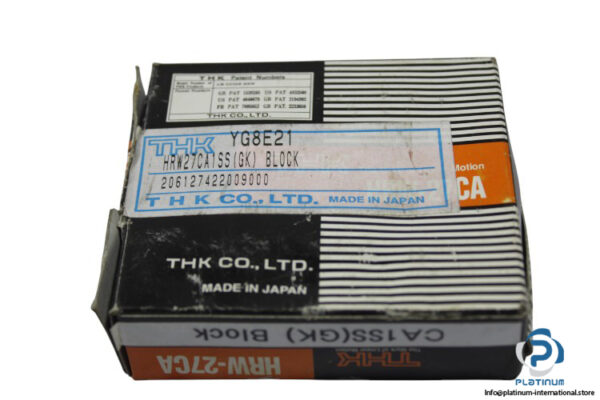

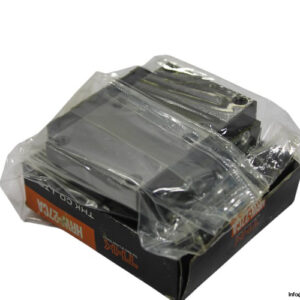

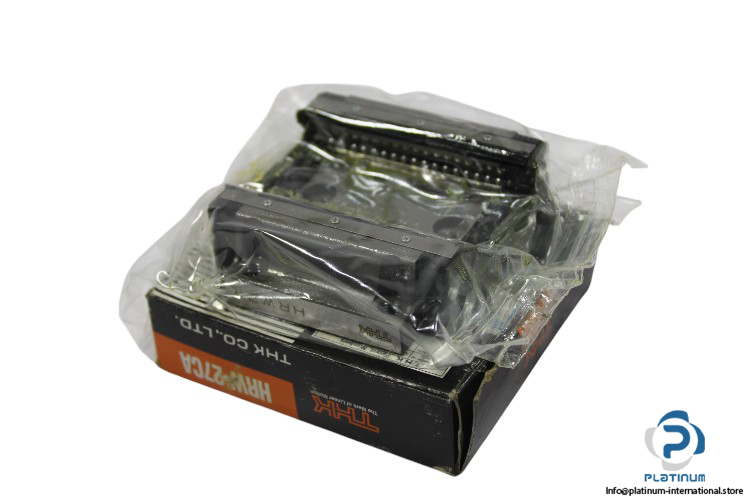

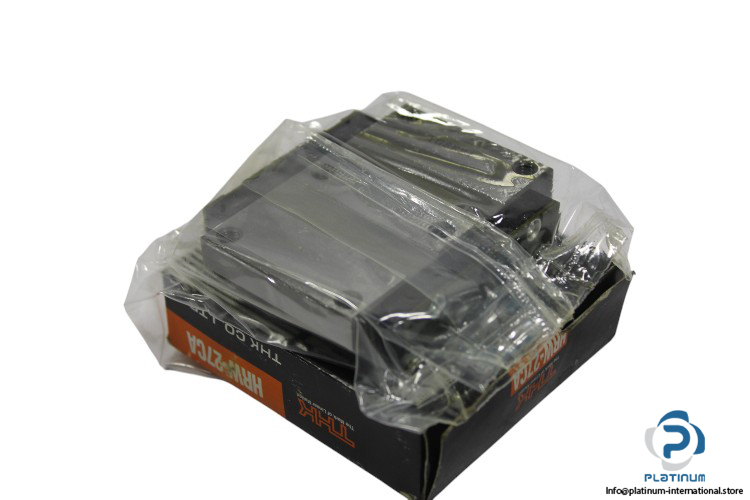

THK HRW27CA1SS Linear Bearing Block

The THK HRW27CA1SS Linear Bearing Block is a high-precision, high-load capacity bearing system designed for smooth linear motion. Engineered for durability and efficiency, it features a flange-type structure with multiple sealing layers to ensure protection against contaminants.

• Manufacturer: THK
• Type: Linear Bearing Block
• Model: HRW27CA1SS

Technical Information

• Size: 27
• Dimensions:
• Total Height (M): 27 mm
• Block Height (K): 24 mm
• Block Width (W): 80 mm
• Block Length (L): 72.8 mm
• L1: 51.8 mm
• B: 70 mm
• C: 40 mm
• Block Type: Flange Type
• Mounting Hole: 6 tapped holes
• Basic Load Ratings:
• Dynamic (C): 14.2 kN
• Static (C0): 21.6 kN
• Sealing: 1SS, with end seal + side seal + inner seal
