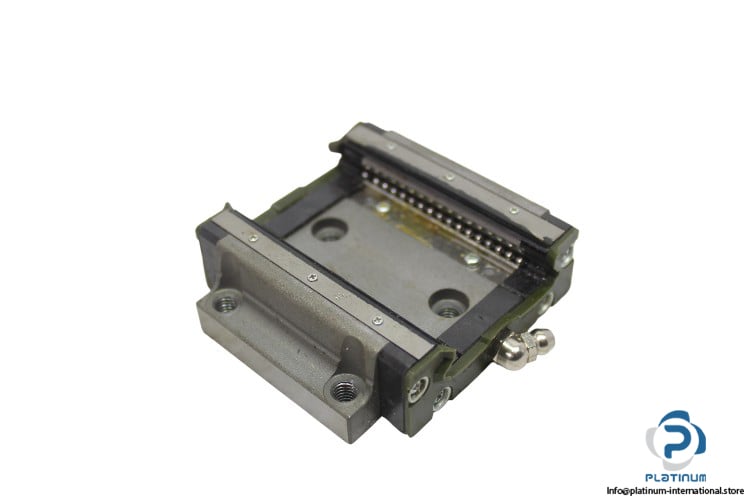

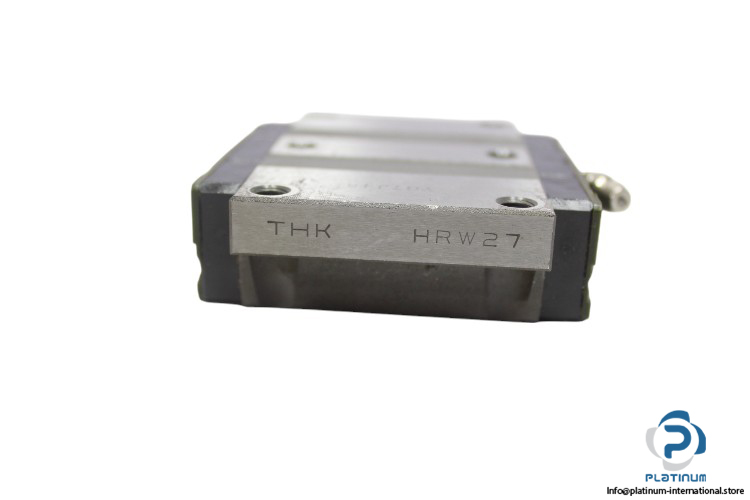

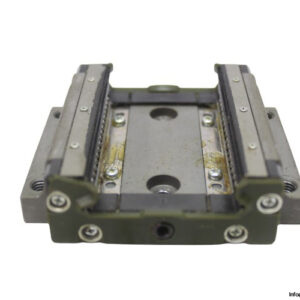

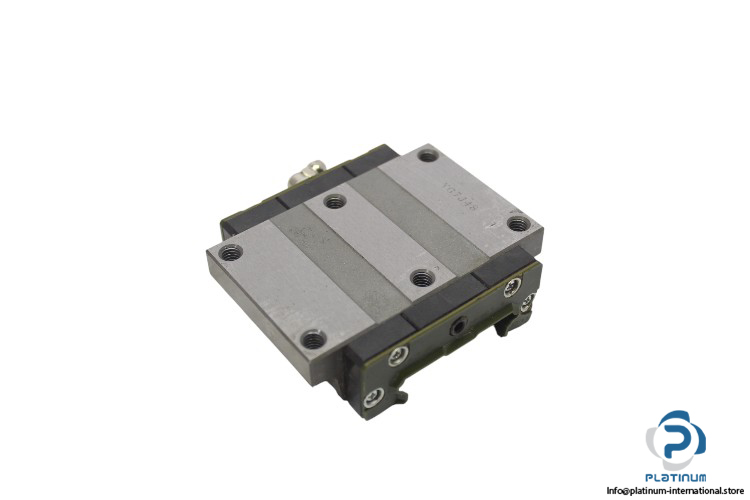

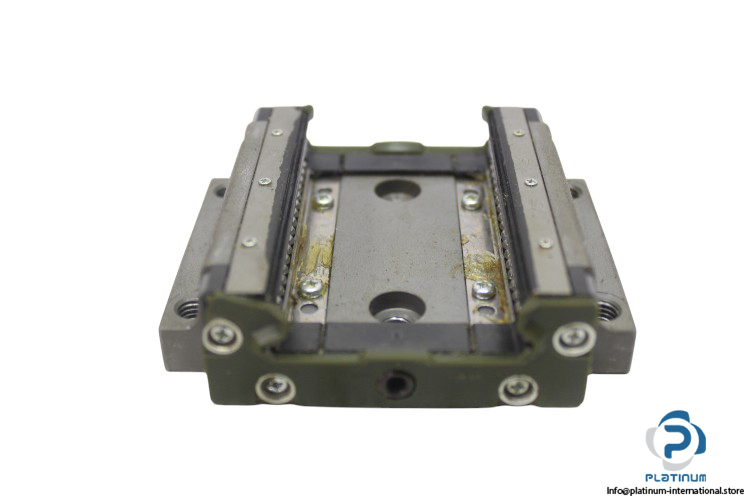

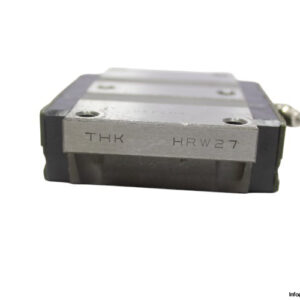

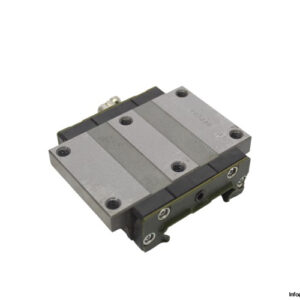

THK HRW27CA1SS Linear Bearing Block
The THK HRW27CA1SS Linear Bearing Block offers precise linear motion with robust dynamic and static load capacities. Ideal for industrial applications requiring high durability and stability.
Manufacturer: THK
Type: Linear Bearing Block
Model: HRW27CA1SS
Technical Information:
- Size: 27
- Total Height (M): 27 mm
- Block Height (K): 24 mm
- Block Width (W): 80 mm
- Block Length (L): 72.8 mm
- L1: 51.8 mm
- B: 70 mm
- C: 40 mm
- Block Type: Flange Type
- Mounting Hole: 6 tapped holes
- Dynamic Load Rating (C): 14.2 kN
- Static Load Rating (C0): 21.6 kN
- Sealing: 1SS, With end seal + side seal + inner seal
