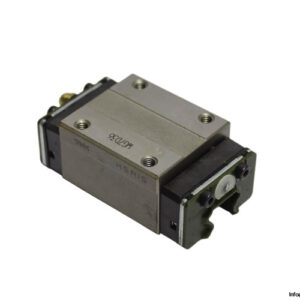

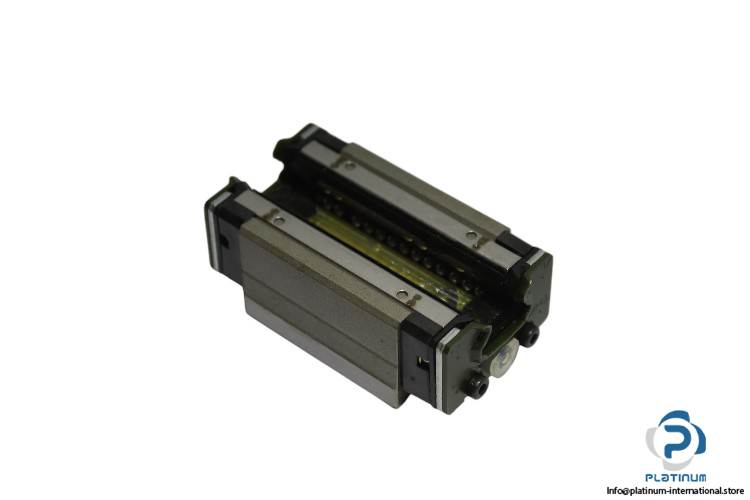

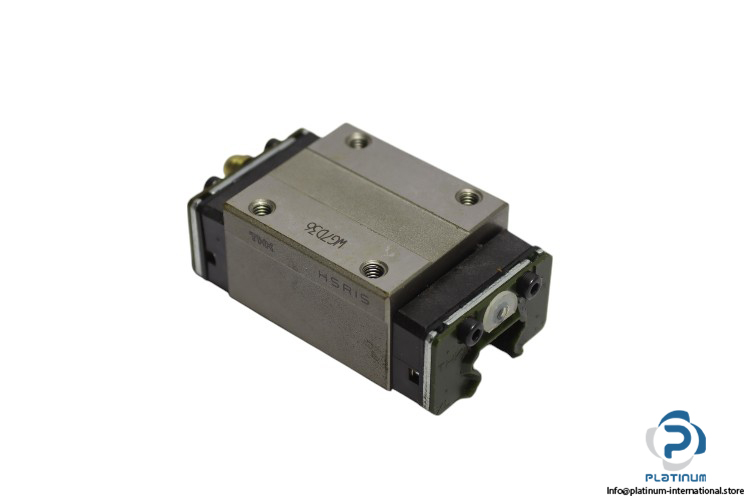

THK HSR15RDD Linear Bearing Block
The THK HSR15RDD is a high-performance linear bearing block designed for precise and smooth motion in linear guide systems. Featuring a square-type block and double seal (DD) + side seal for added protection, this component is ideal for applications requiring accuracy, load capacity, and long service life.
Manufacturer: THK
Type: Linear Bearing Block
Model: HSR15RDD

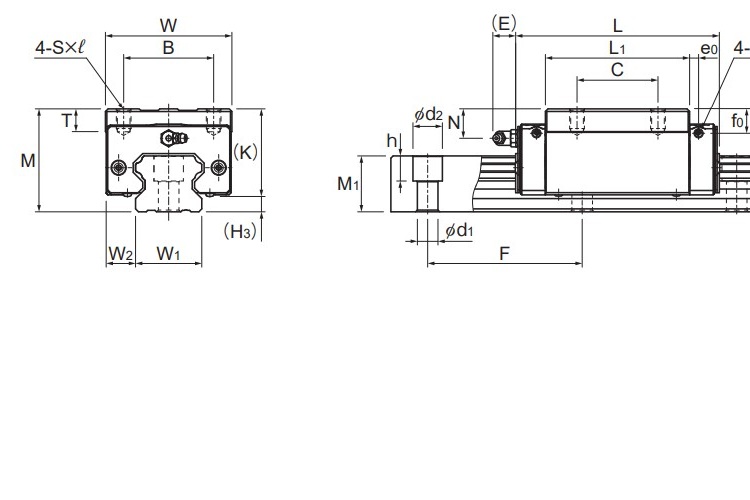

Technical Information:
- Size: 15
- Length: 56.6 mm
- Width: 34 mm
- Height: 28 mm
- Height of Block: 23.3 mm
- Block Type: Square
- Basic Dynamic Load Rating: 10.9 kN
- Basic Static Load Rating: 15.7 kN
- Tapped Holes: 4
- Seal Type: DD (Double Seals) + Side Seal
