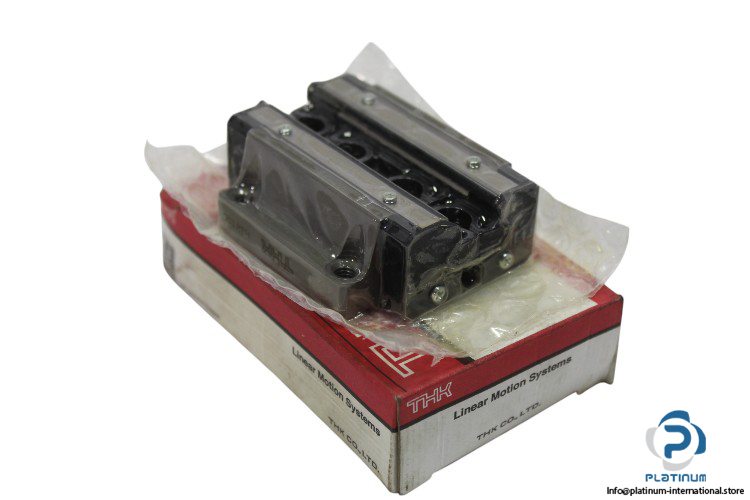

THK HSR20C1SS Linear Bearing Block HSR
The THK HSR20C1SS is a high-performance linear bearing block designed for smooth linear motion and long service life in industrial automation systems. Featuring a compact size, high load ratings, and advanced sealing, this flange type LM block is ideal for precision applications requiring durability and efficiency.
Manufacturer: THK
Type: Linear Bearing Block HSR

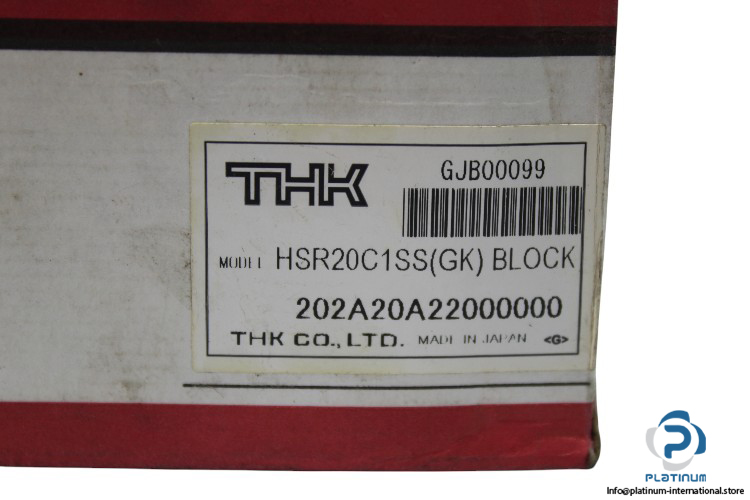

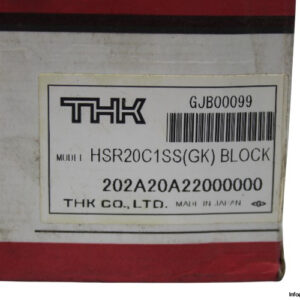

Model: HSR20C1SS

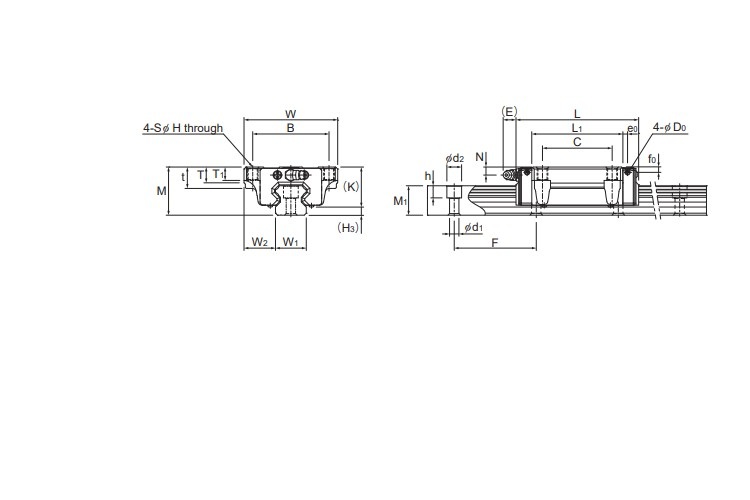

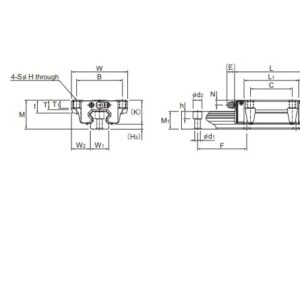

Technical Information:
- Size: 20 mm
- Total Height (M): 30 mm
- Block Width (W): 63 mm
- Block Length (L): 74 mm
- Block Height (K): 26 mm
- Type of LM Block: C
- Number of LM Blocks: 1
- Block Type: Flange Type
- Grease Nipple: B-M6F
- Dynamic Load Rating (C): 19.8 kN
- Static Load Rating (C0): 27.4 kN
- Tapped Holes: 4 tapped holes
- Lubrication & Dust Prevention Accessories: SS (With end seal + side seal + inner seal)
