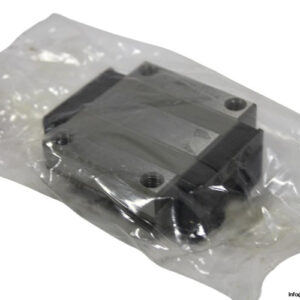

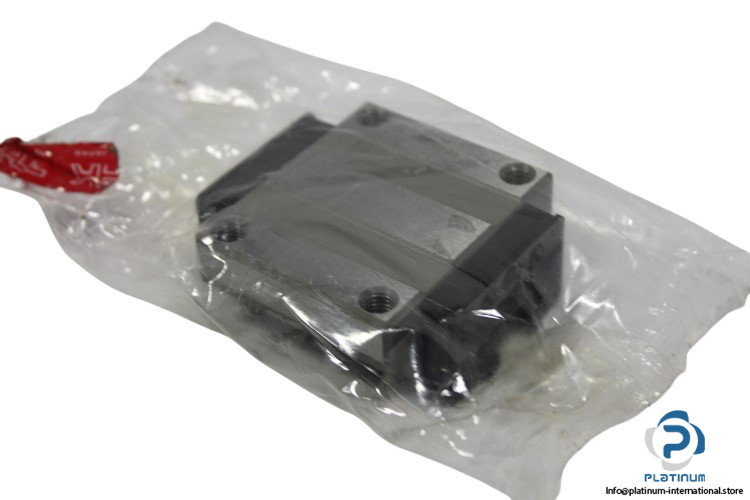

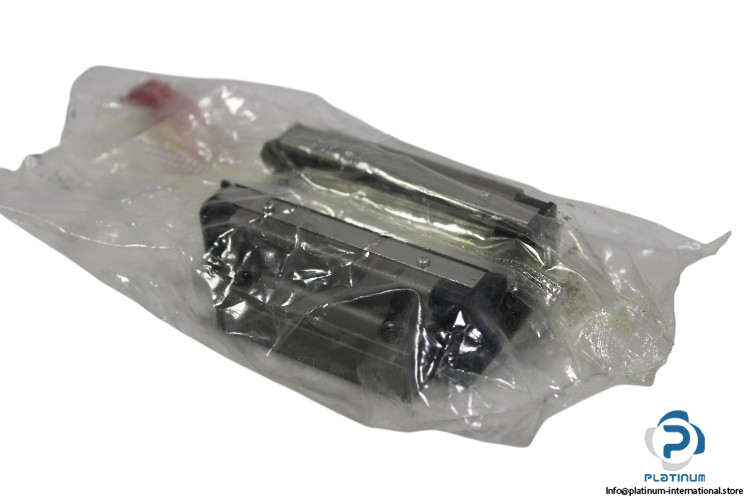

THK HSR25A1SS Linear Bearing Block
The THK HSR25A1SS Linear Bearing Block is designed for precision linear motion applications, ensuring smooth and accurate movement. Engineered with high load capacity and enhanced sealing for protection, this linear guide block is ideal for various industrial automation and machinery applications.
- Manufacturer: THK
- Type: Linear Bearing Block
- Model: HSR25A1SS
Technical Information
- Size: 25
- Dimensions:
- Length: 83.1 mm
- Width: 70 mm
- Height: 36 mm
- Height of Block: 30.5 mm
- Block Type: Flange
- Load Ratings:
- Basic Dynamic Load Rating: 27.6 kN
- Basic Static Load Rating: 36.4 kN
- Mounting Specifications:
- Mounting Hole: M8
- Tapped Holes: 4
- Seal Type: 1SS, with End Seal, Side Seal, and Inner Seal
