Manufacturer: THK

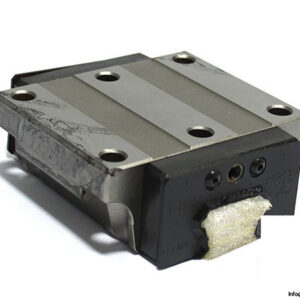

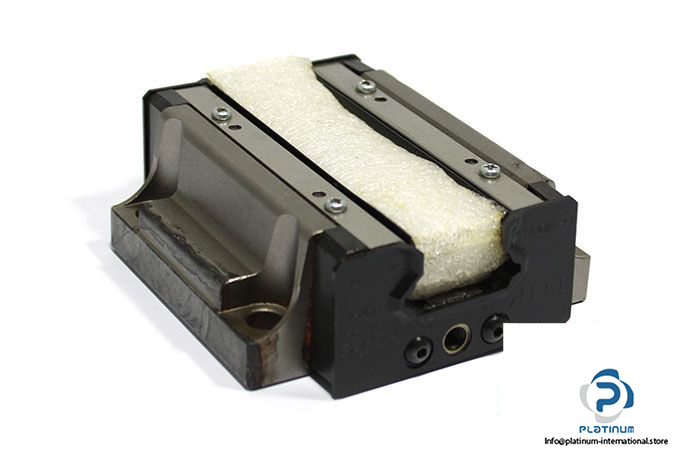

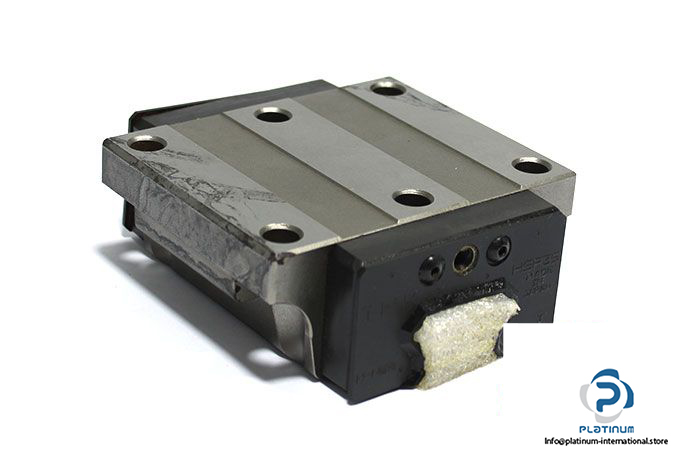

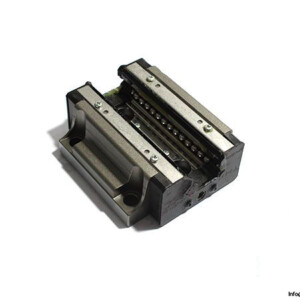

Type: Linear Guideway Block HSR

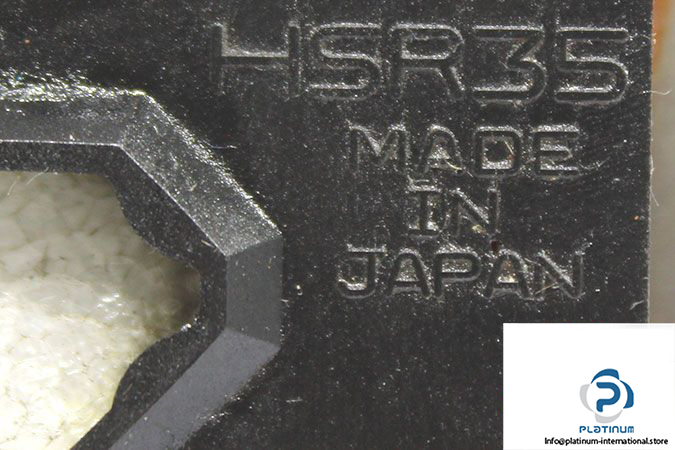

Model: HSR 35CB
Size: 35 mm
Block Type: Flange Type
Basic Load Ratings:
Dynamic C: 37.3 kN
Static C0: 61.1 kN

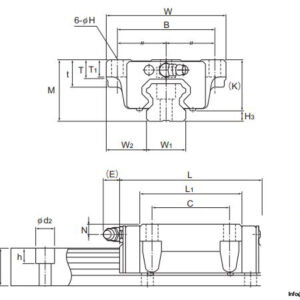

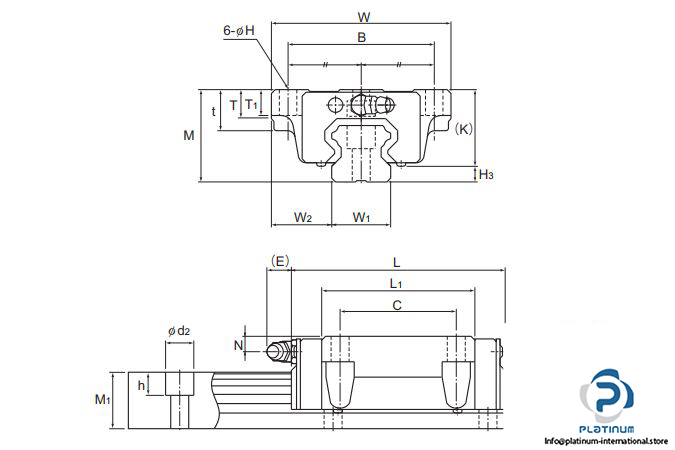

Dimensions
Total Height M: 48 mm
Block Width W: 100 mm
Block Length L: 109.4 mm
Mounting Hole: 6 through holes
Weight: 1.6 kg
