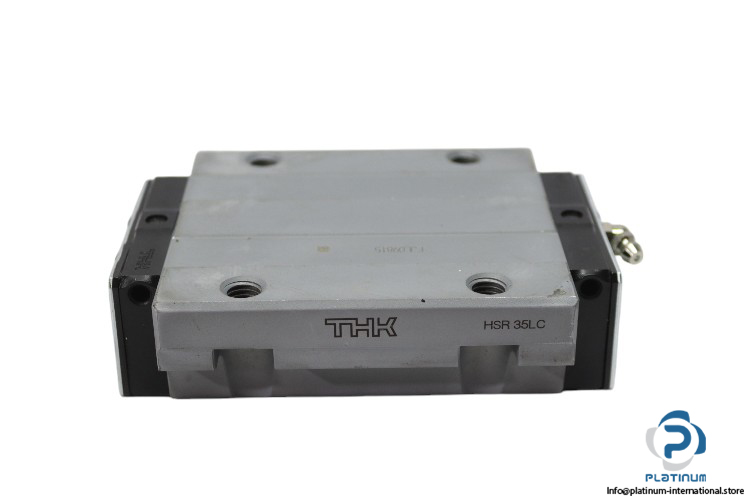

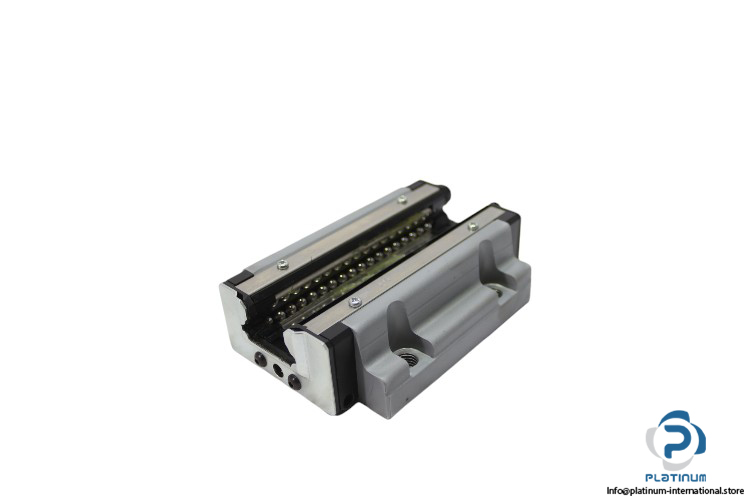

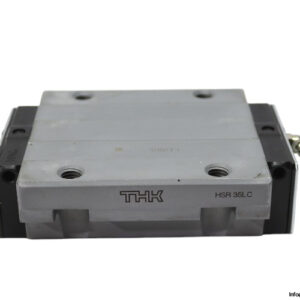

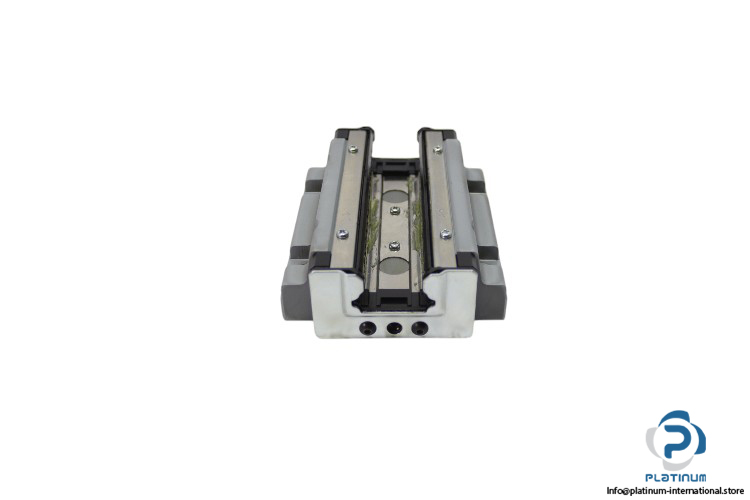

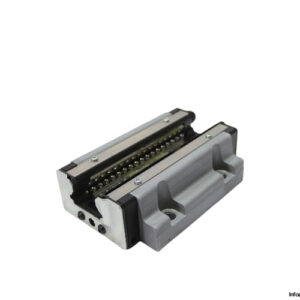

THK HSR35LCZZFM Linear Bearing Block
The THK HSR35LCZZFM is a precision-engineered linear bearing block designed for high-load and high-accuracy linear motion systems. Featuring a flange-type block, advanced sealing, and stainless steel construction, it provides smooth, durable operation in demanding environments.
Manufacturer: THK
Type: Linear Bearing Block
Model: HSR35LCZZFM

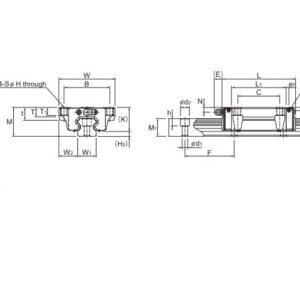

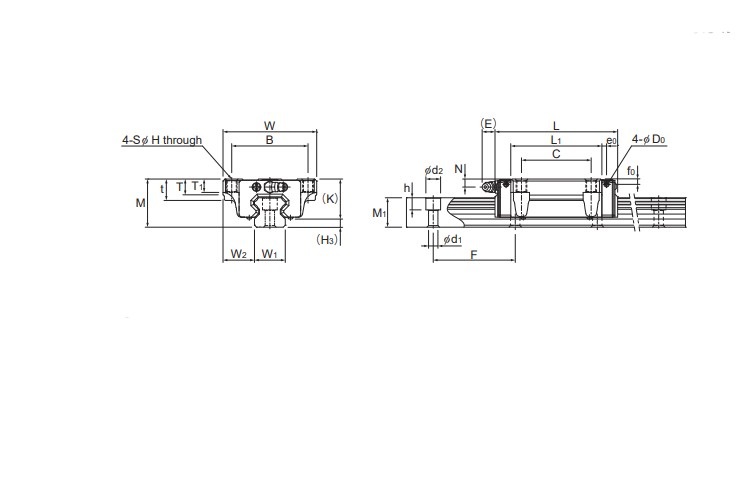

Technical Information:
- Block Type: Flange
- System Height: 48 mm
- Block Width (W): 100 mm
- Length (L): 134.8 mm
- Block Height (K): 40.5 mm
- Basic Dynamic Load Rating: 65 kN
- Basic Static Load Rating: 91.7 kN
- Mounting Holes: 4 tapped holes
- Seal Designation: ZZ (End Seals, Side Seals, Metal Scraper)
- Rail Material: M (Stainless Steel)
