Manufacturer: THK
Type: LINEAR GUIDEWAY BLOCK
Model: HSV30C1SS
Size: 25 mm

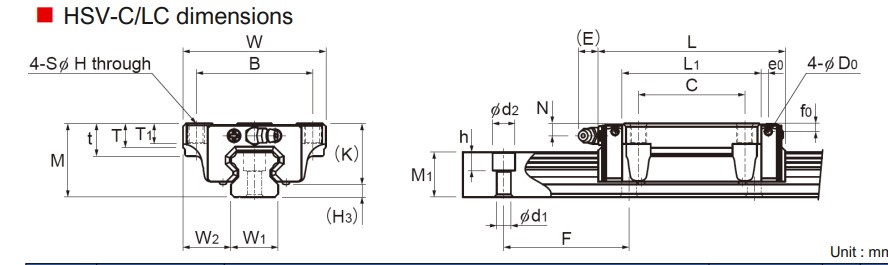

Dimensions
Total Height M: 36 mm
Block Width W: 70 mm
Block Length L: 102.2 mm
Block Height K: 30.5 mm
Seal Symbol: UU, End Seals
No. of LM block: 1
Type of LM Block: LA
Basic Load Ratings:
Dynamic C: 35.2 kN
Static C0: 51.6 kN
