Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: RSR-9KM
Size: 9 mm

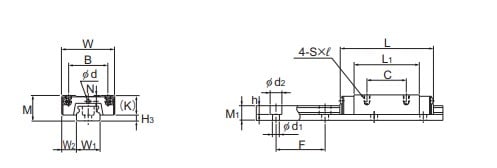

Dimension
Height System M: 10 mm
Length L: 30 mm
Width W: 20 mm
Block Height K: 7.8 mm
B: 15 mm
C: 10 mm
Rail Width W1: 9 mm
Basic Dynamic Load Rating: 1.47 kN
Basic Static Load Rating: 2.25 kN
Mounting hole: M3×3
