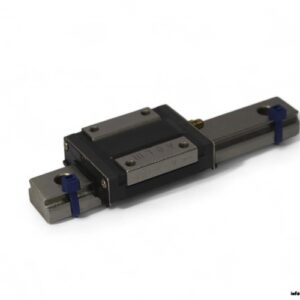

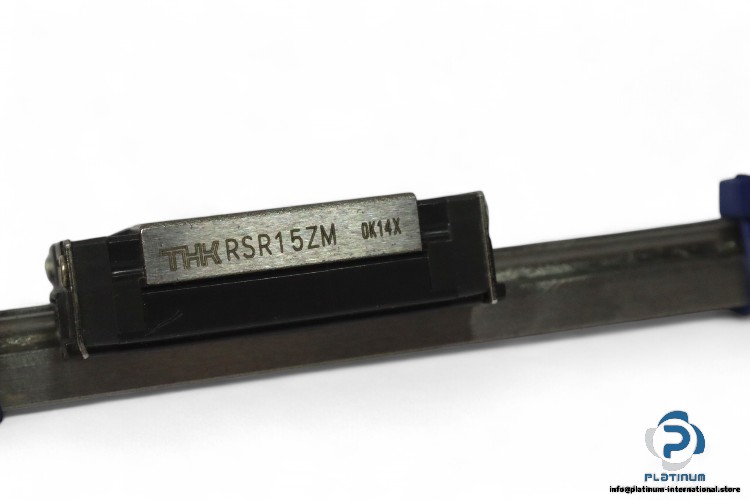

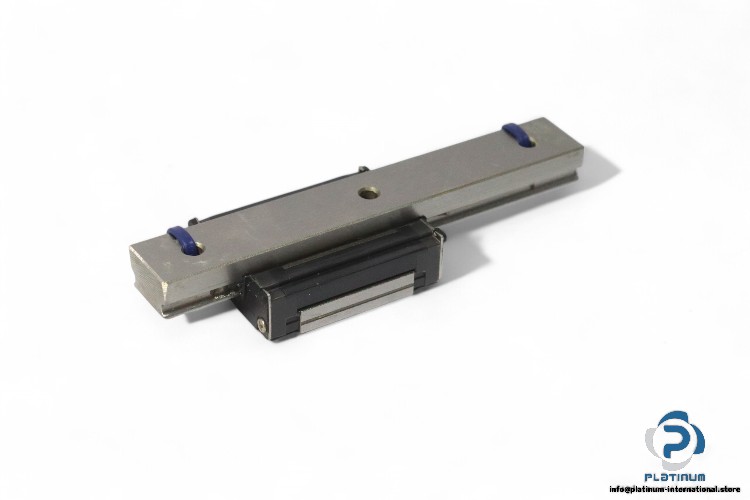

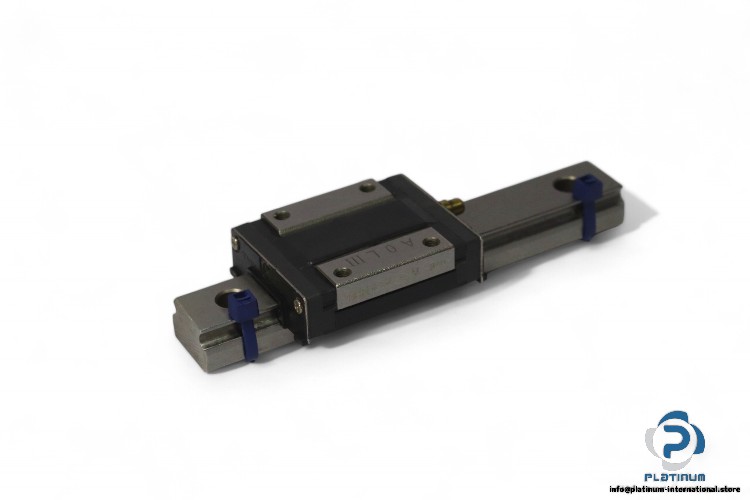

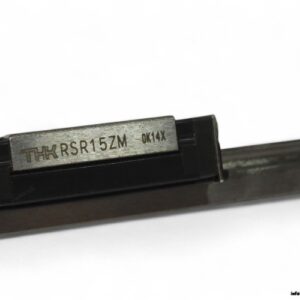

Manufacturer: THK
Type: LINEAR GUIDEWAY BLOCK
Model: RSR15-ZM
Size: 15

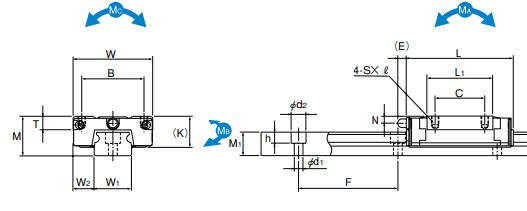

Dimensions
Total Height M: 16 mm
Block Width W: 32 mm
Block Length L: 43 mm
Block height K: 12.6 mm
Rail width: 15 mm
Rail Height: 9.5 mm
B: 25 mm
C: 20 mm
Block Type: Square Type
Basic Load Ratings:
Dynamic C: 4.41 kN
Static C0: 6.57 kN
