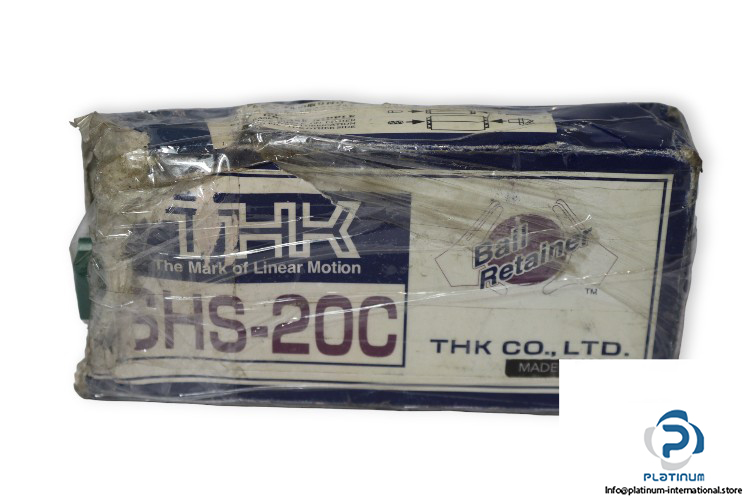

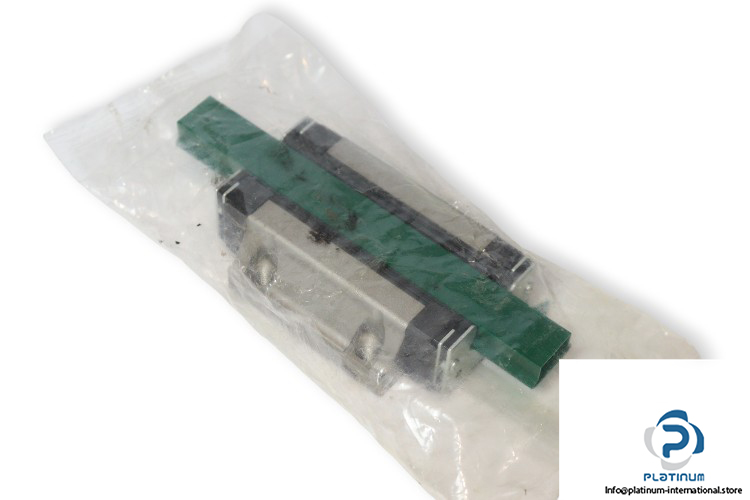

Manufacturer: THK
Type: Linear Guideway Block SHS-C

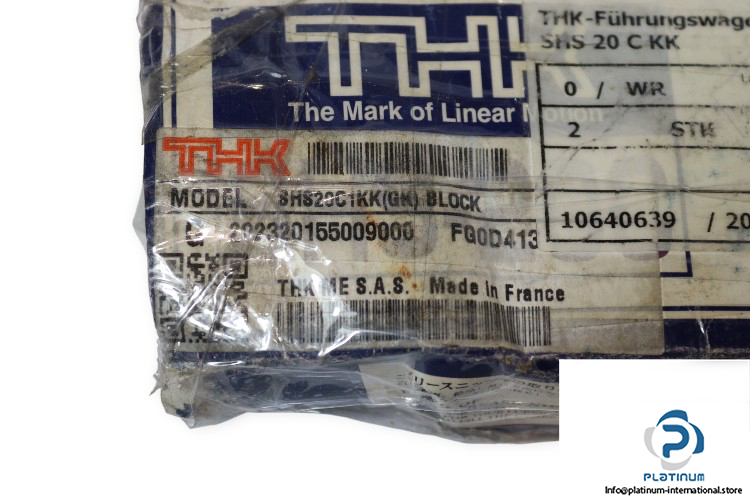

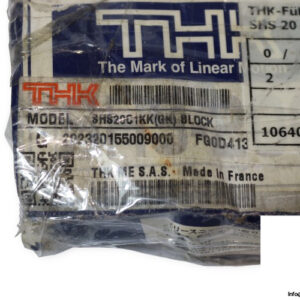

Model: SHS 20C1 KK

Block Type: Flange
No. of LM blocks used on the same rail: 1
Protection accessory: Protection accessory: KK; With double seal + side seal + inner seal + metal scraper
Mounting Hole: 4 tapped holes

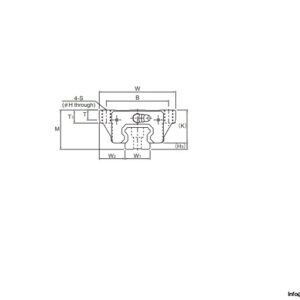

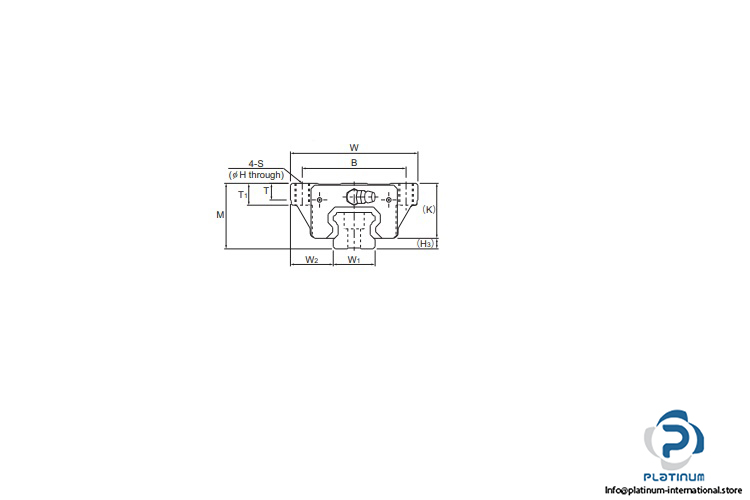

Outer dimensions:
Total Height M: 30 mm
Block Width W: 63 mm
Block Length L: 79 mm
LM block dimensions:
B: 53 mm
C: 40 mm
Height K: 25.4 mm
Grease nipple: B-M6F
Basic Load Rating:
Dynamic C: 22.3 kN
Static C0: 38.4 kN
