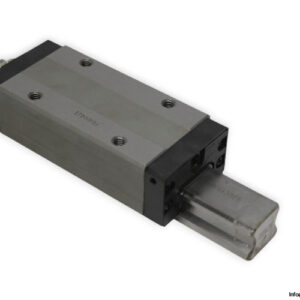

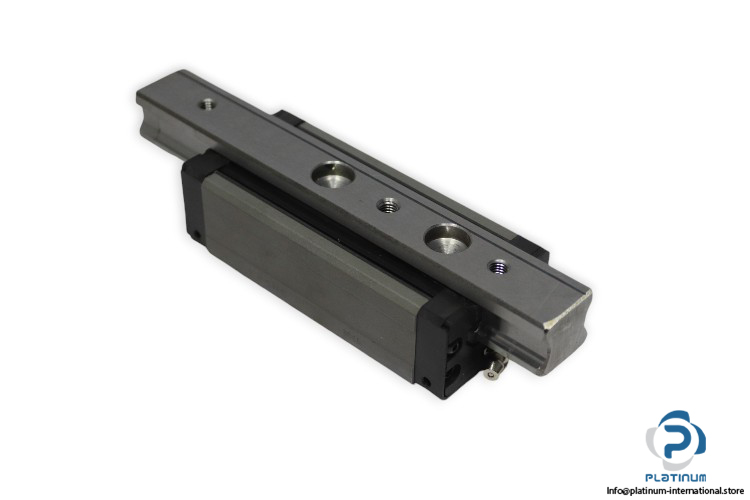

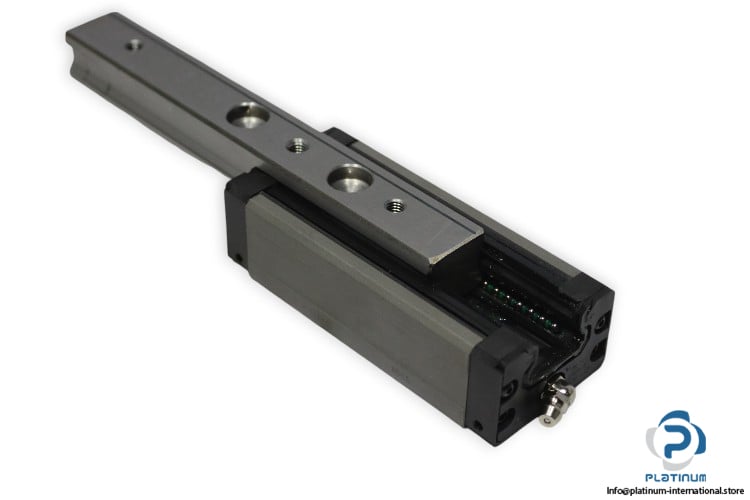

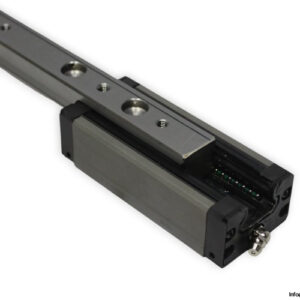

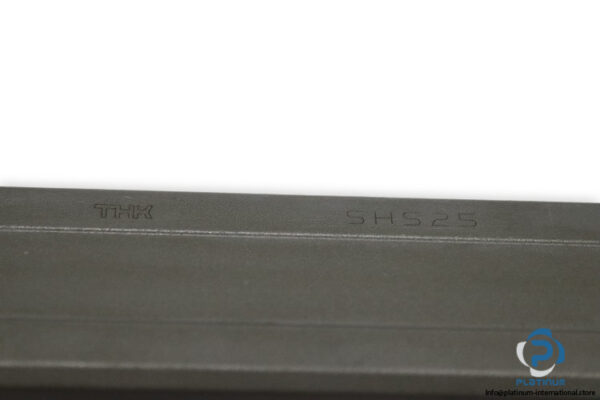

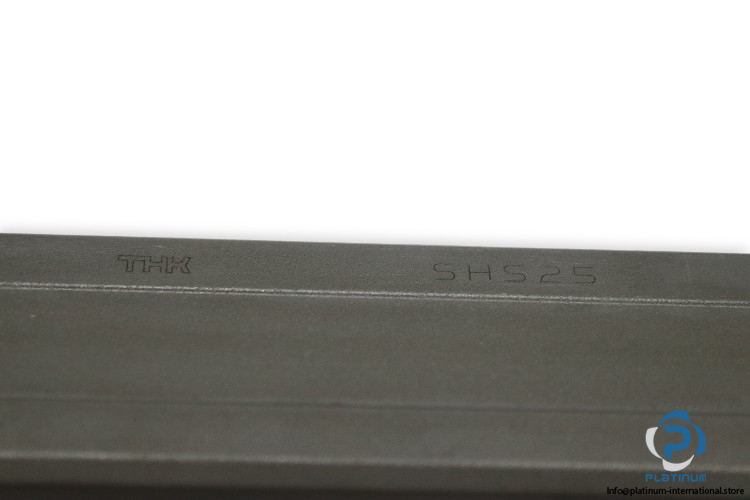

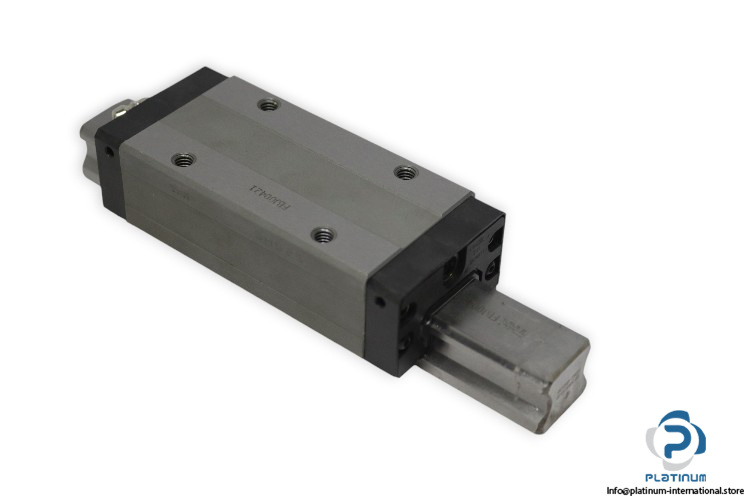

Manufacturer: THK
Type: LINEAR BEARING BLOCK

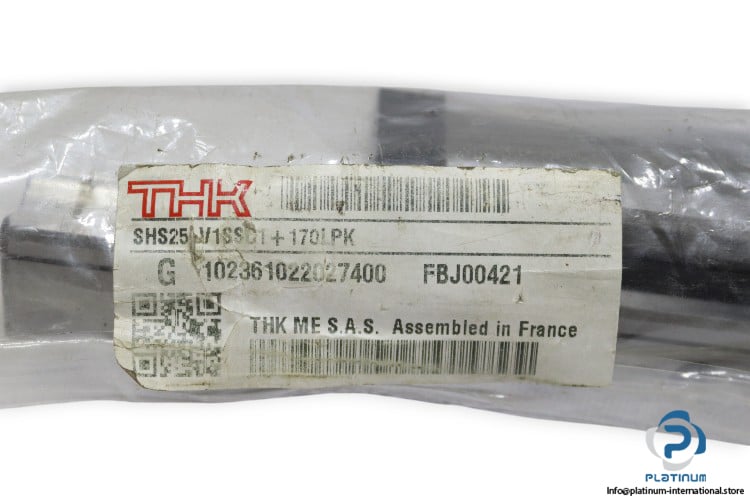

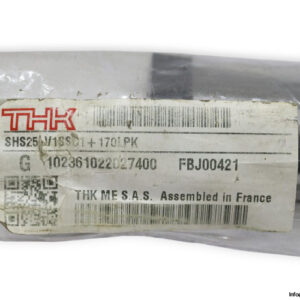

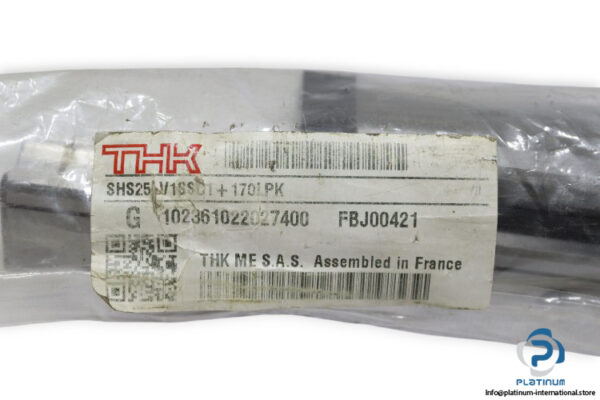

Model: SHS25 LV1SSC1
Size: 25

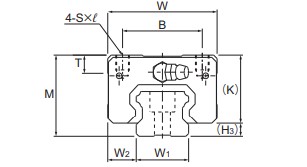

Dimensions
Total Height M: 36 mm
Block Height K: 30.2 mm
Block Width W: 48 mm
Block Length L: 109 mm
L1: 88 mm
B: 35 mm
C: 50 mm

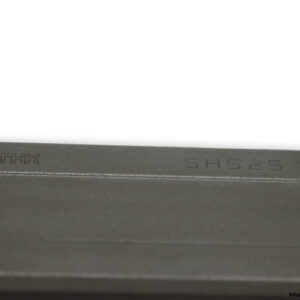

Model number: SHS25
Preload: C1, Light preload
Block Type: Flange Type
Type of LM block: LV
Number of LM block: 1
Mounting Hole: 4 tapped holes
Basic Load Ratings:
Dynamic C: 36.8 kN
Static C0: 64.7 kN
Protection accessory: SS, With end seal + side seal + inner seal
