Manufacturer: THK
Type: Linear Guideway Block
Model: SHS30

Block Type: Flange
Mounting Hole: 4 tapped holes

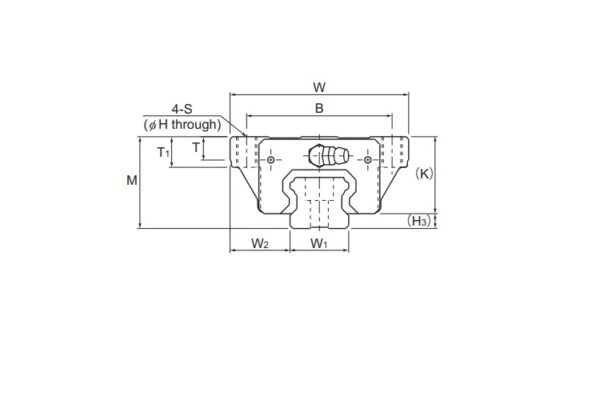

Outer dimensions:
Total Height M: 42 mm
Block Width W: 90 mm
Length L: 106 mm
Total length: 125
LM block dimensions:
B: 72 mm
C: 52 mm
Height K: 35 mm
Basic Load Rating:
Dynamic C: 44.8 kN
Static C0: 66.6 kN
