Manufacturer: THK

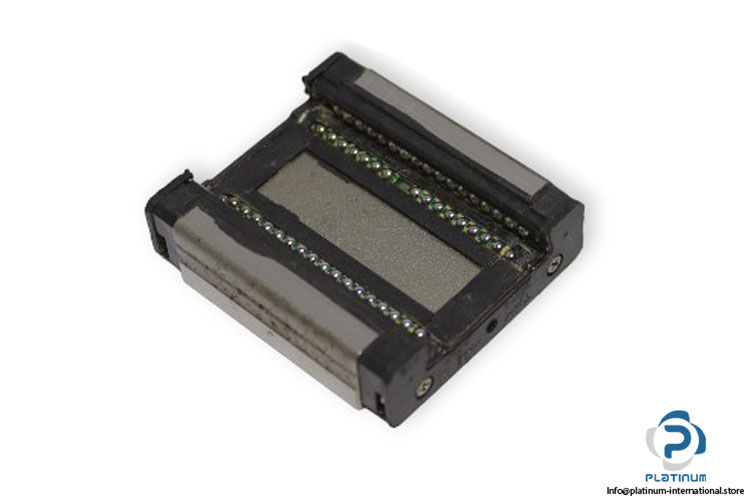

Type: Caged Ball LM Guide – wide, low center ofgravity types

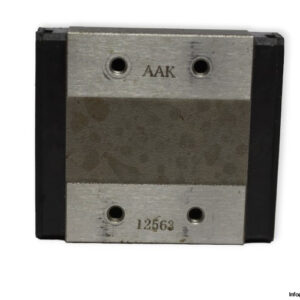

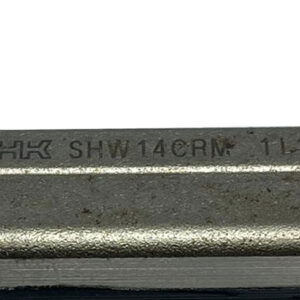

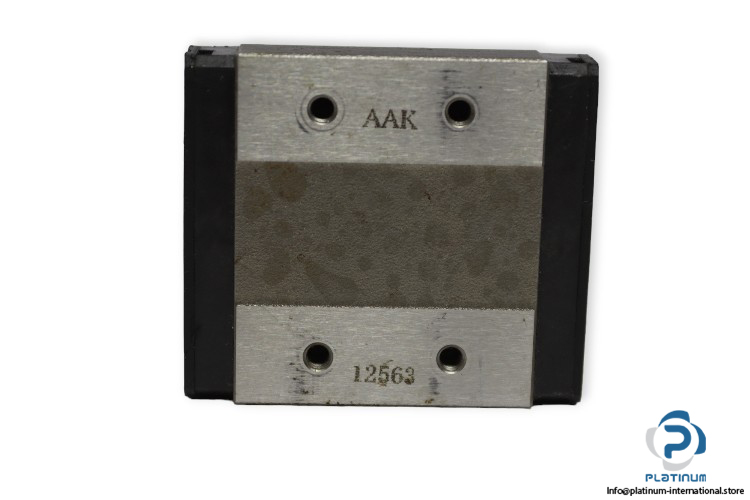

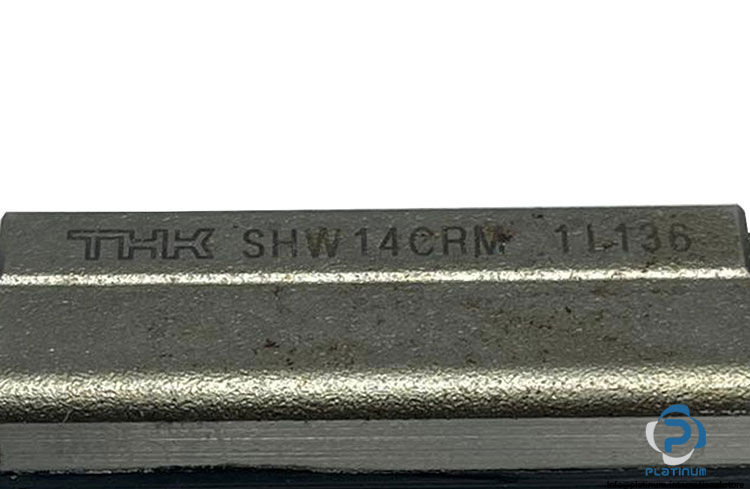

Model: SHW14CRM

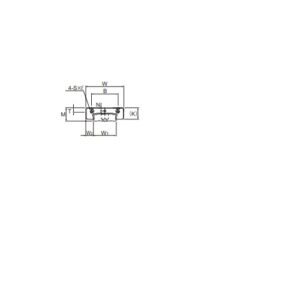

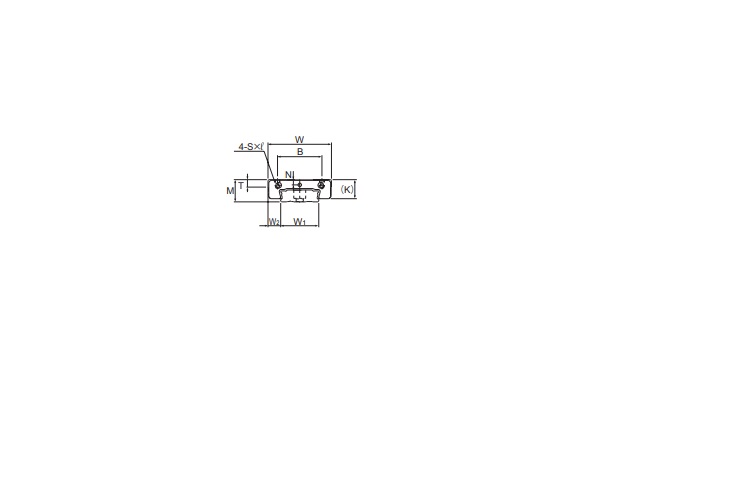

Outer dimensions:
Total Height M: 14 mm
Block Width W: 40 mm
Block Length L: 45.5 mm
LM block dimensions:
B: 28 mm
C: 15 mm
Height K: 12 mm
Basic Load Rating:
Dynamic C: 7.05 kN
Static C0: 8.98 kN
