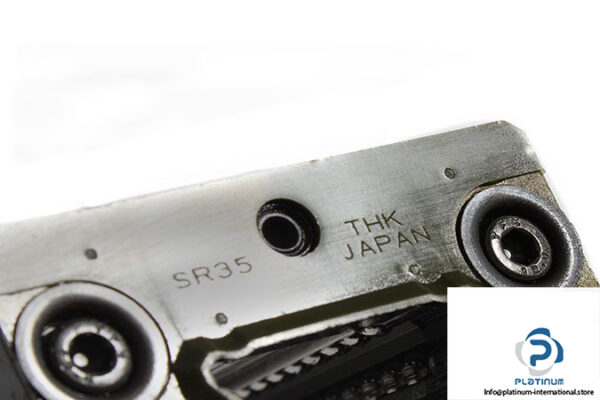

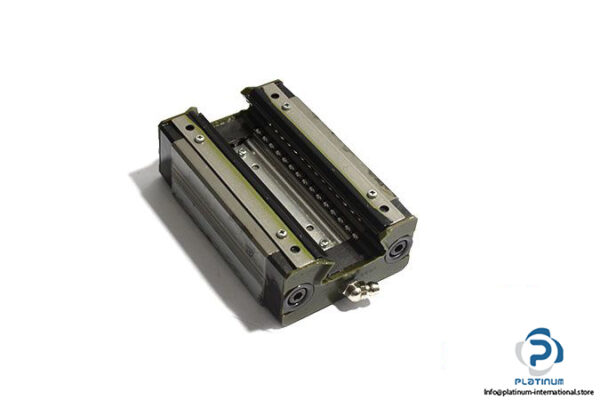

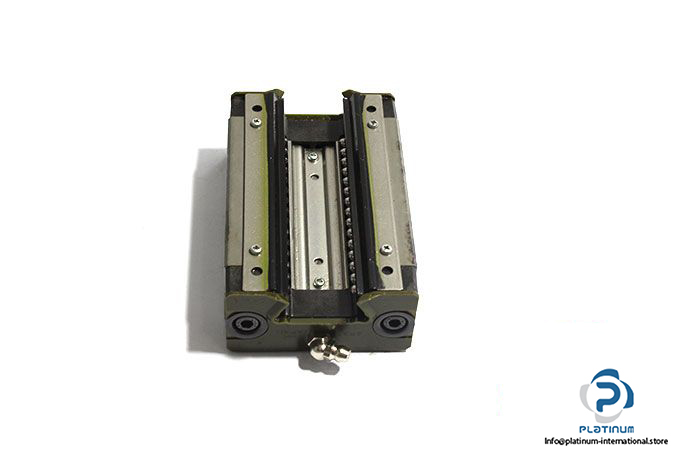

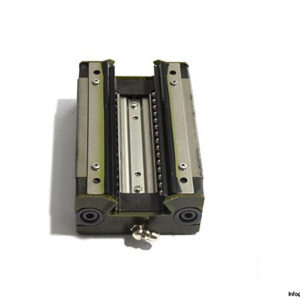

THK SR 35W Linear Guideway Block
The THK SR 35W is a precision linear guideway block engineered for smooth and accurate linear motion. Its robust square-type design ensures high rigidity, load capacity, and long service life, making it ideal for demanding industrial automation and machinery applications.
Manufacturer: THK
Type: Linear Guideway Block SR
Model: SR 35W
Size: 35 mm

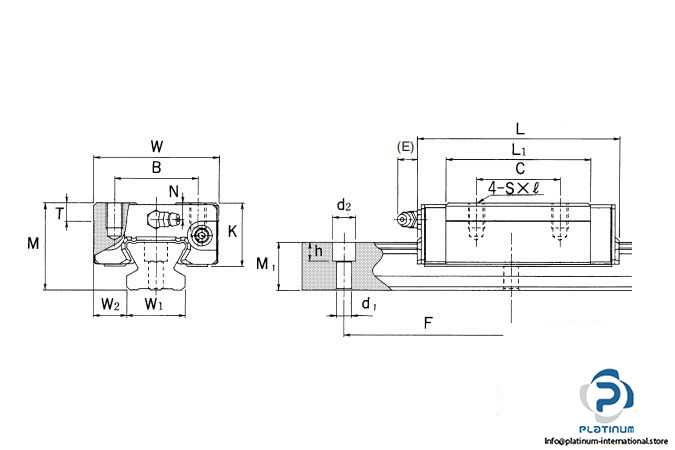

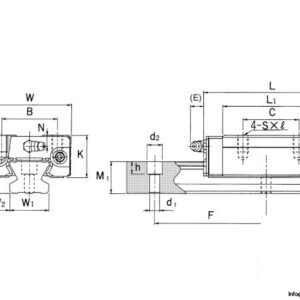

Technical information
- Total Height (M): 48 mm
- Block Width (W): 70 mm
- Block Length (L): 111 mm
- Block Type: Square Type
- Basic Dynamic Load Rating (C): 41.7 kN
- Basic Static Load Rating (C0): 77.2 kN
