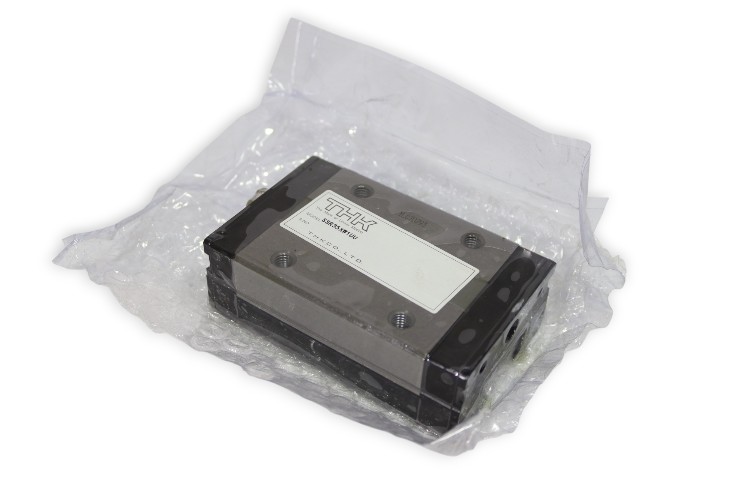

THK SSR35XW1UU LINEAR GUIDE BLOCK

The THK SSR35XW1UU Linear Guide Block is a high-precision component engineered for smooth and accurate linear motion. With excellent load ratings, sealing, and a compact design, it ensures durability and performance in industrial applications.

Manufacturer: THK
Type: Linear Guide Block

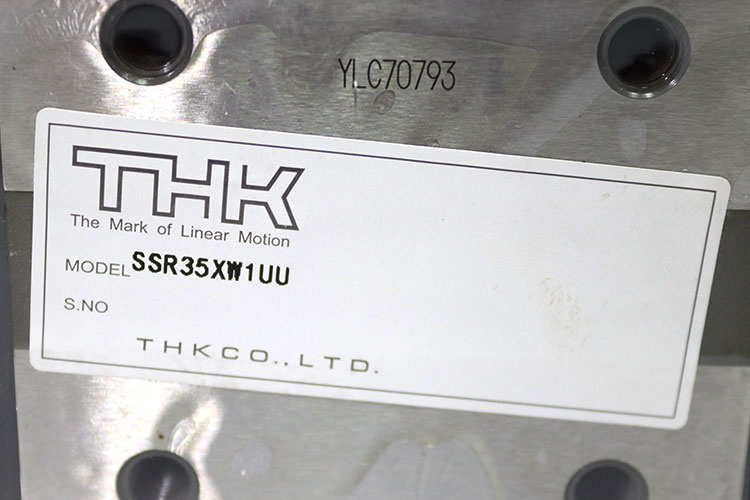

Model: SSR35XW1UU

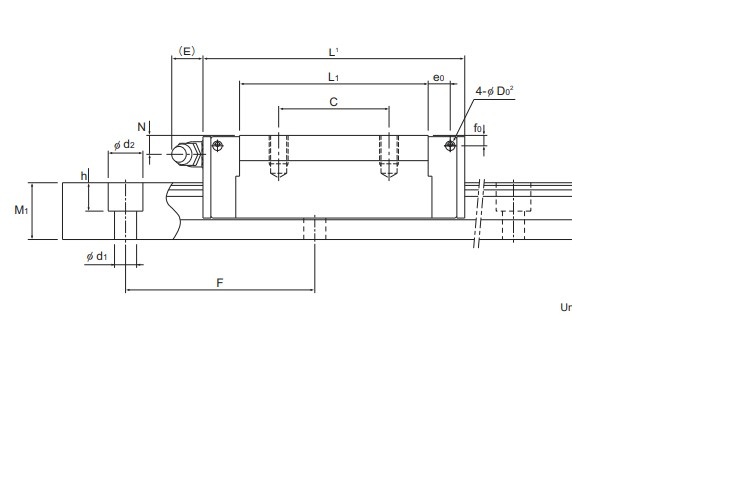

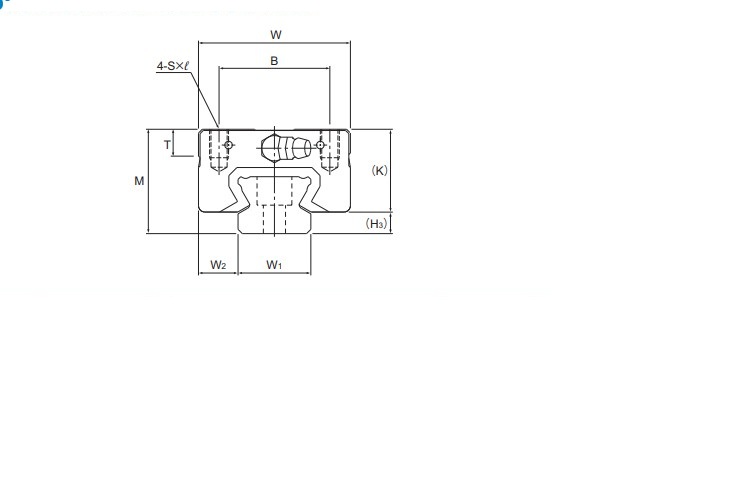

Technical Information

• Size: 35
• Length: 110.9 mm
• Width: 70 mm
• Height of Block: 36.5 mm
• Height of System: 48 mm
• B: 50 mm
• C: 50 mm
• Dynamic Load: 64.6 kN
• Static Load: 71.6 kN
• Tapped Hole: 4
• No. of LM Block: 1
• Sealing: UU (With End Seal)

Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing.
