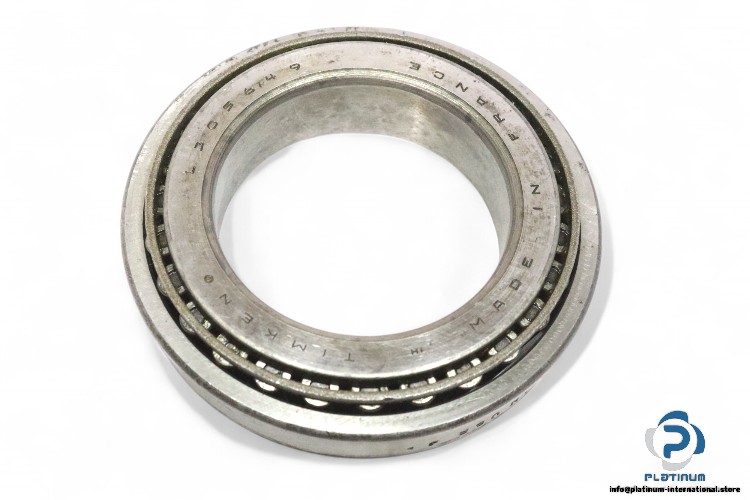

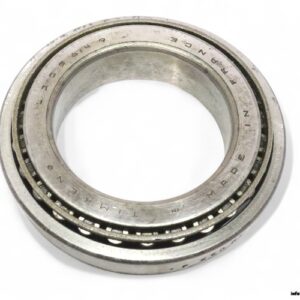

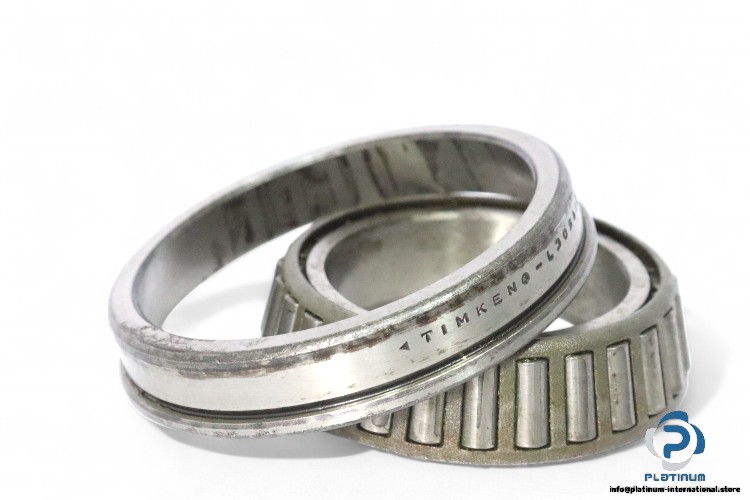

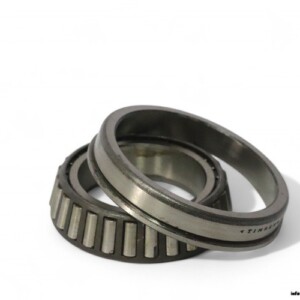

Manufacturer: Timken
Type: TAPERED ROLLER BEARING
Model: L 305649/10 B

Cone Part Number: L305649

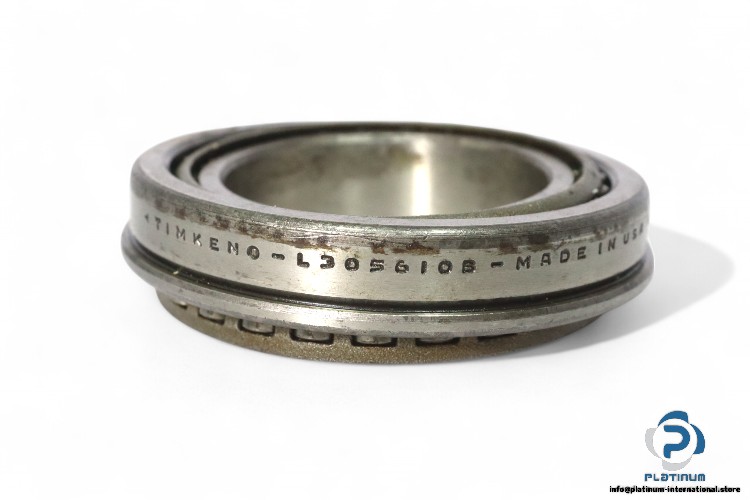

Cup Part Number: L305610 B
Bore Diameter d: 50.8 mm
Cup Outer diameter D: 80.963 mm
Cone Width: 18.258 mm
Cup Width: 14.288 mm
T1 width: 7.145 mm
Outer Ring Flange O.D: 84.036 mm
Flange Width C2: 3.175 mm
C90 – Dynamic Radial Rating (90 million revolutions): 15800 N
C1 – Dynamic Radial Rating (1 million revolutions): 60800 N
C0 – Static Radial Rating: 88800 N
Ca90 – Dynamic Thrust Rating (90 million revolutions): 9590 N
Cage Material: Stamped Steel
Cup design: B, Flanged cup (Non-interchangeable with basic part number)
