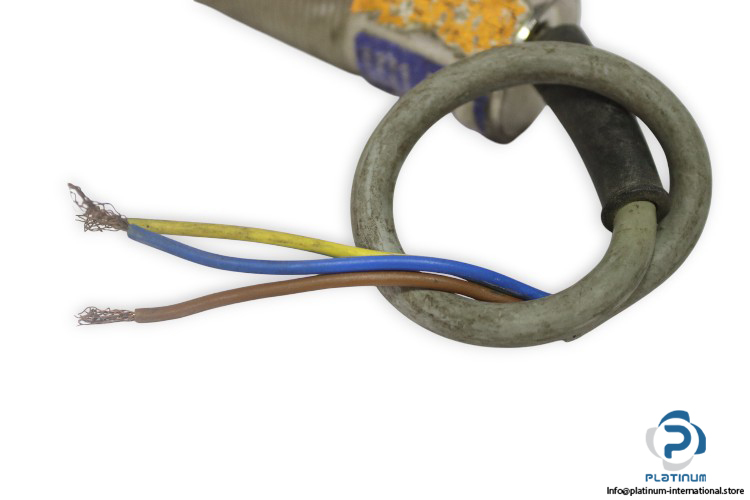

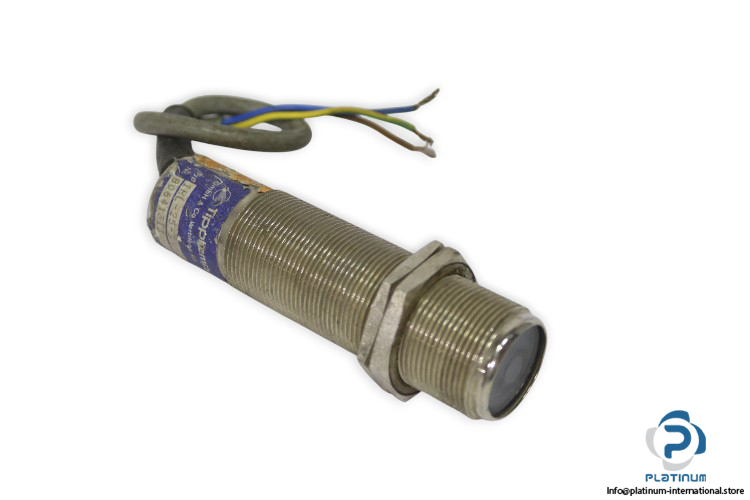

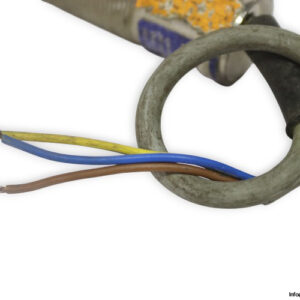

Tippkemper IRL-25-S Light Barrier (Emitter)
The Tippkemper IRL-25-S is a high-quality light barrier emitter designed for precise detection in industrial automation. With infrared sensing, durable housing, and robust protection, it ensures reliable performance in challenging environments.
Manufacturer: Tippkemper
Type: Light Barrier (Emitter)

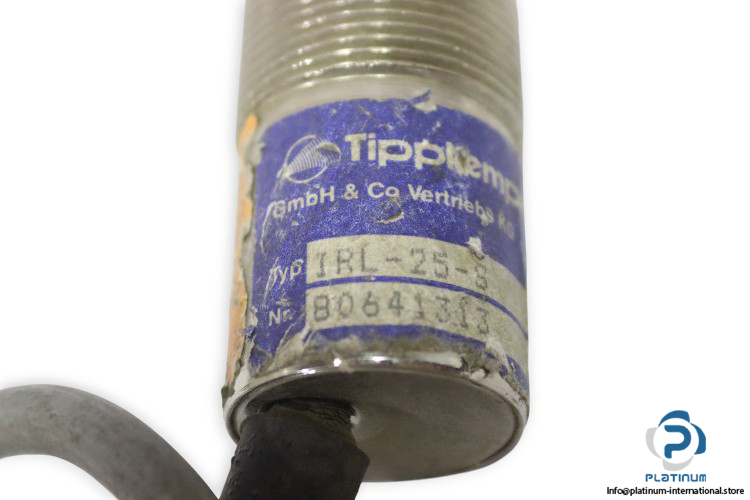

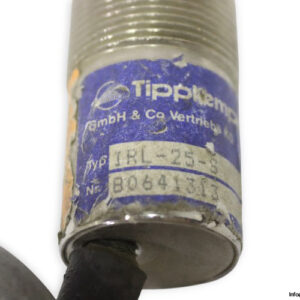

Model: IRL-25-S
Part No.: B0641313
Technical information

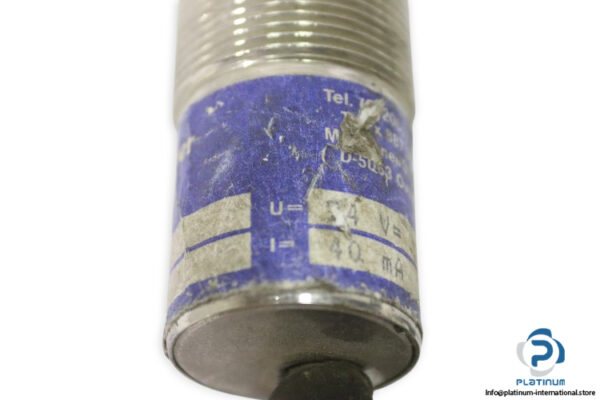

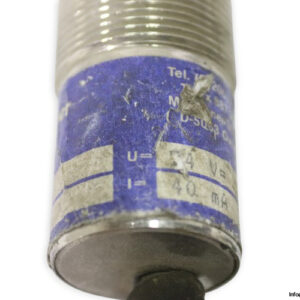

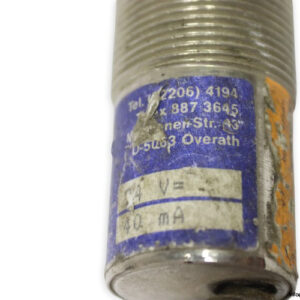

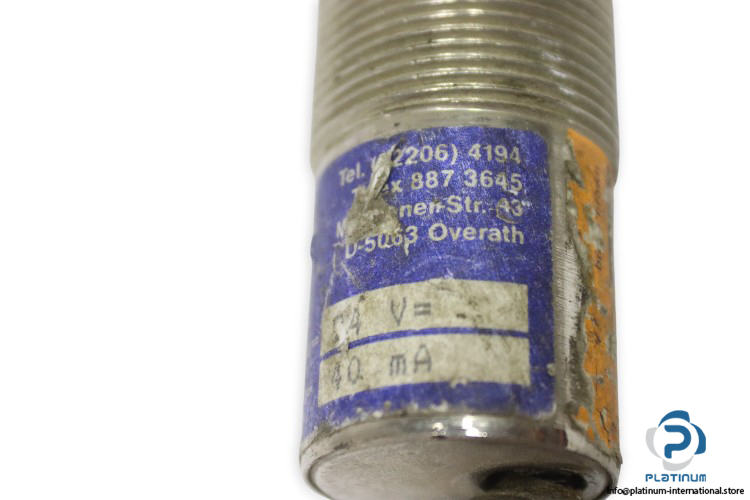

- Voltage: 24 V
- Current: 40 mA
- Sensor Length: 155 mm
- Operating Distance: 25 m
- Response Time: 5 ms
- Light Source: Infrared, 880 nm
- Maximum Power Dissipation Emitter: 1.12 W
- Output: Push-Pull, maximum 100 mA, short circuit protected
- Housing: M30, yellow brass, nickel plated
- Operating Temperature: -20 °C to +50 °C
- Enclosure Rating: IP65
