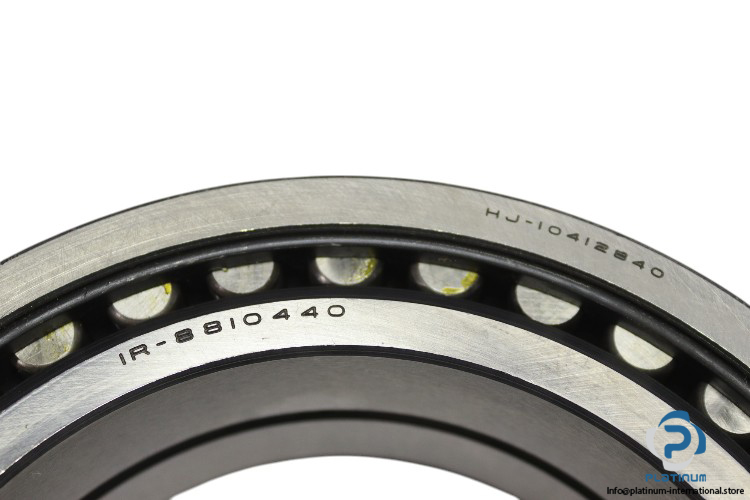

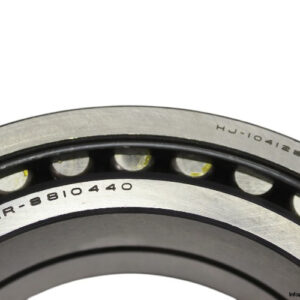

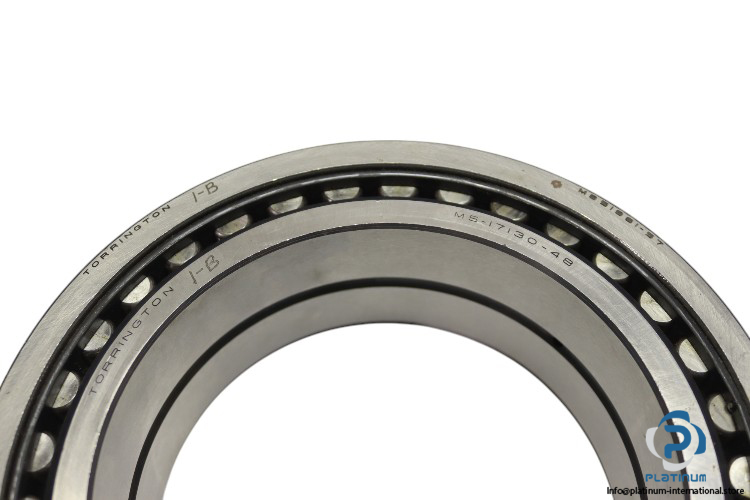

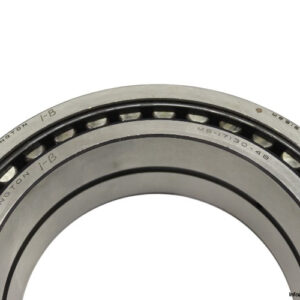

Torrington HJ-10412840 / MS-17130-48 Needle Roller Bearing

The Torrington HJ-10412840 / MS-17130-48 is a high-performance needle roller bearing designed for demanding industrial applications requiring high load capacities and compact design. It is used in combination with the RI-8810440 inner ring and delivers excellent radial load support with minimal cross-section requirements.

Manufacturer: Torrington

Type: Needle Roller Bearing

Model: HJ-10412840 / MS-17130-48

Used with Inner Ring: RI-8810440

Technical Information:

• Shaft Diameter (FW): 165 mm
• Outer Diameter (D): 203 mm
• Width (B): 63.5 mm
• Dynamic Load Rating (Cr): 383 kN
• Static Load Rating (C0r): 850 kN
• Limiting Speed (Grease): 2600 rpm
• Limiting Speed (Oil): 7438 rpm
