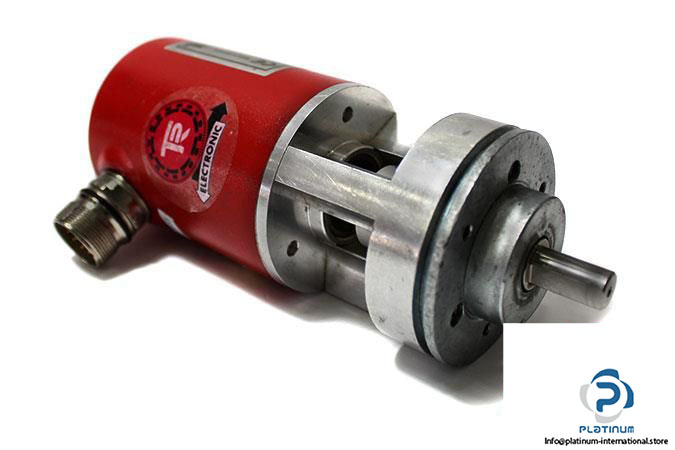

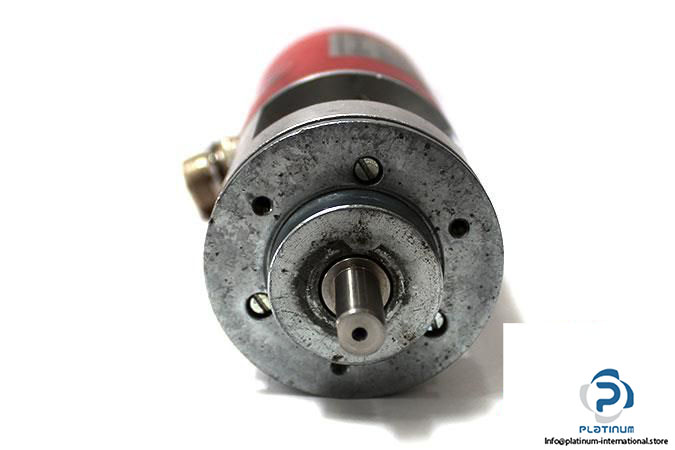

TR ELECTRONIC CE 65M ABSOLUTE ENCODER

The CE 65M Absolute Encoder from TR Electronic delivers high-resolution rotary position feedback with exceptional reliability and precision. Ideal for industrial automation systems, this encoder is programmable and supports SSI output with fast data refresh and robust signal transmission.

Manufacturer: TR Electronic
Type: Absolute Encoder
Model: CE 65M

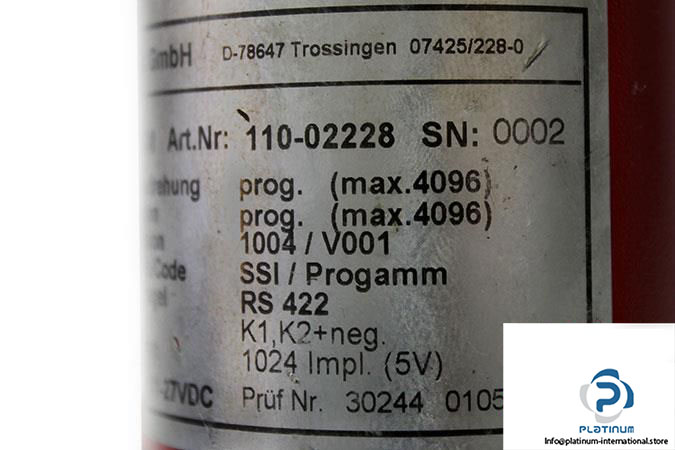

Art. Nr.: 110-02228
Serial No.: 0002
Ref No.: 30244 0105

Technical Information

• Shaft Diameter: 10 mm
• Resolution: 4096 Steps/Rev (12-bit)
• Impulse: 1024
• Version: 1004/v001
• Voltage Supply: 11 / 27 VDC
• Output Code: Programmable (SSI)
• Baud Rate: 300 kbps net
• Encoder Interface: RS 422
• Data Refresh: 0.5 ms
• Temperature Range: 0 / 60 °C
