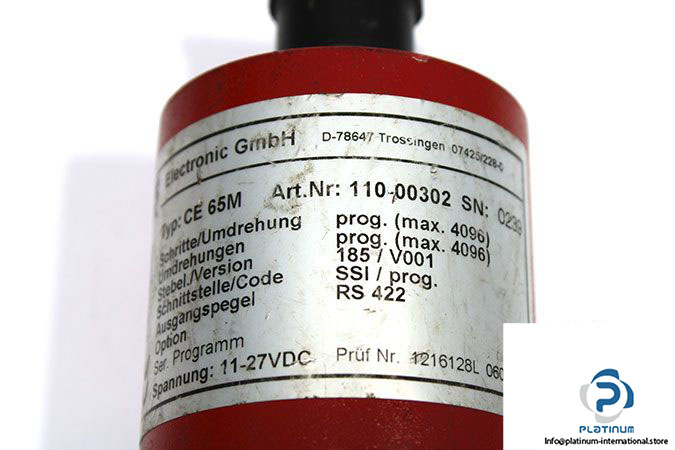

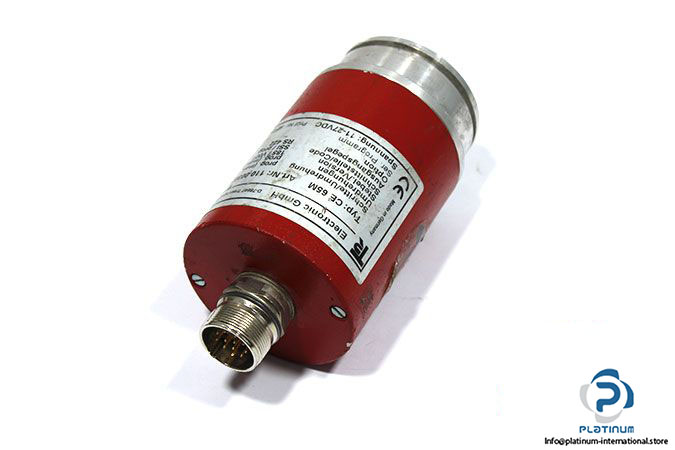

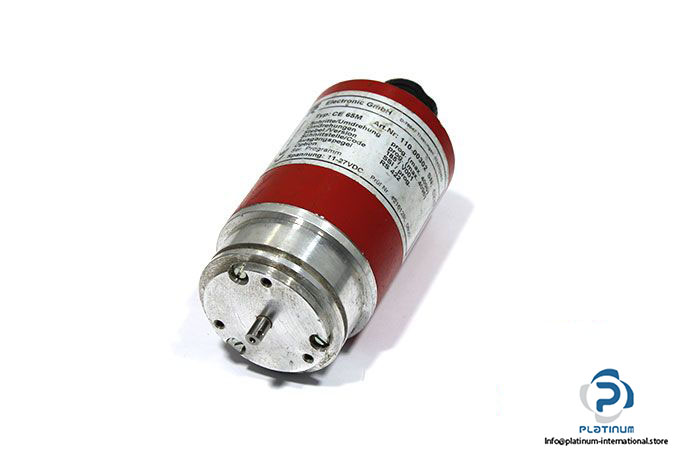

TR ELECTRONIC CE65M ABSOLUTE ENCODER
The CE65M Absolute Encoder from TR Electronic offers reliable, high-resolution positioning for industrial automation systems. Built with precision and durability, this encoder is ideal for applications requiring accurate motion control and programmable output.
Manufacturer: TR Electronic
Type: Absolute Encoder
Model: CE65M
Art. Nr.: 110-00302
S No.: 0239
Technical Information
- Shaft Diameter: 10 mm
- Resolution: 4096 Steps, 19 bit
- Voltage Supply: 11 / 27 VDC
- Output Code: Programmable (SSI)
- Temperature Range: 0 / 60 °C
- Data Output: RS422

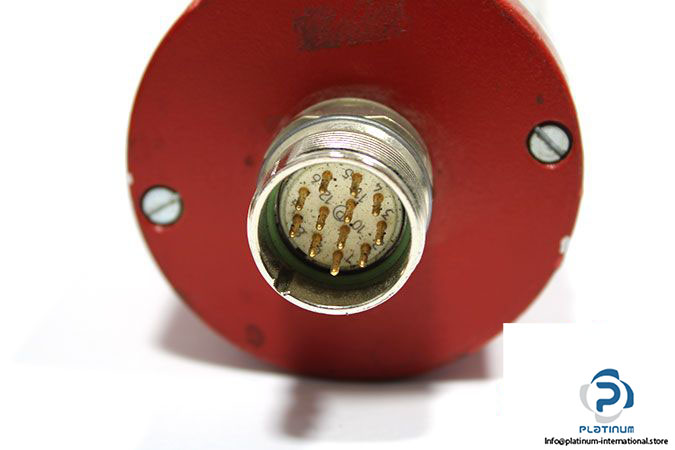

- Connector: 23 mm
