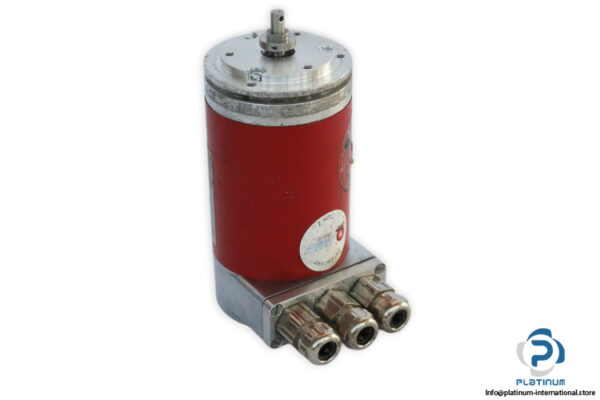

TR ELECTRONIC CE65M ABSOLUTE ENCODER
The TR ELECTRONIC CE65M Absolute Encoder is designed for high-precision industrial motion control applications. Featuring a rugged build and advanced communication interface, it ensures accurate positioning and reliable performance in demanding environments.
Manufacturer: TR ELECTRONIC
Type: Absolute Encoder

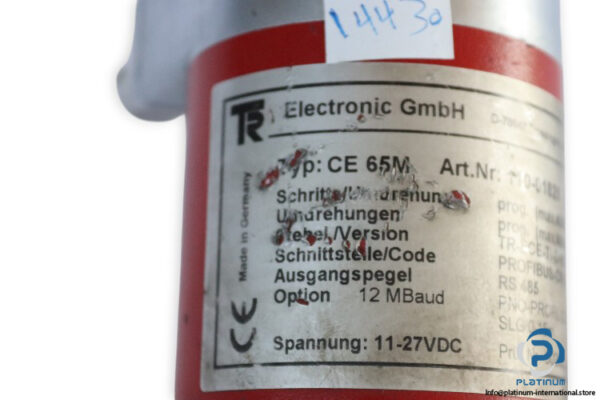

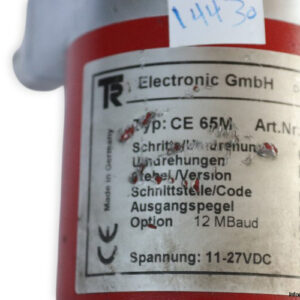

Model: CE65M

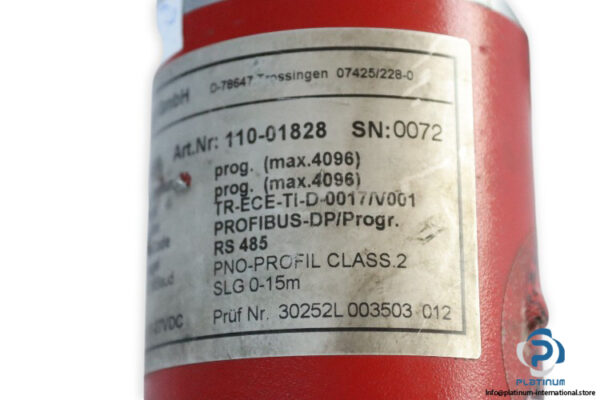

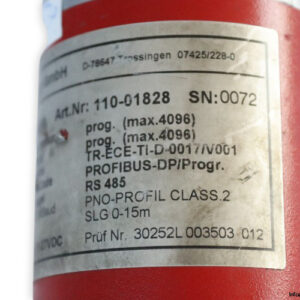

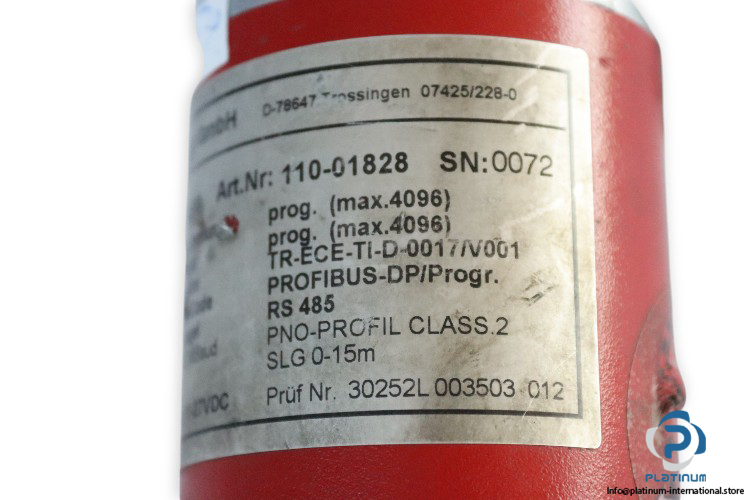

Art No.: 11001828
Serial No.: 0072
Reference No.: 30252L 003503 012
Technical Information
- Series: SRS 50
- Solid Shaft Diameter: 12 mm
- Interface: RS 485
- Steps Per Revolution: 4096 Steps/Rev (12-Bit)
- Maximum Operating Speed: 6000 RPM
- Operating Voltage: 11 / 27 V DC
- Communication Interface: PROFIBUS DP
- Connection: 2xM16x1.5 + 1x8P.M12-ST
- Flange Diameter: 50 mm
- Protection Class: IP65
- Operating Temperature: -20 / 70 °C
- Dimensions: 109 x 65 mm
