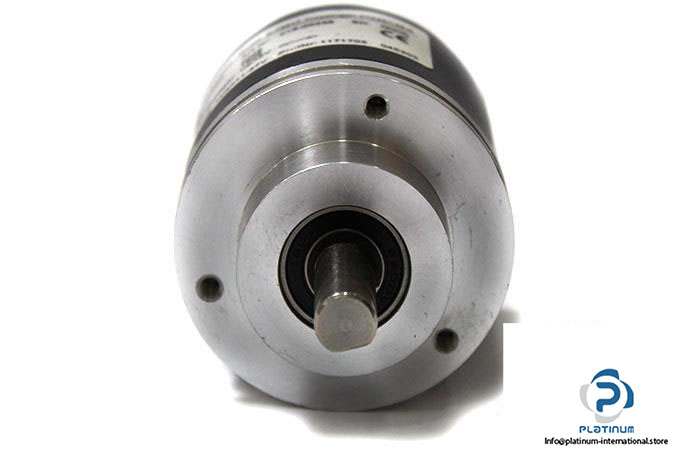

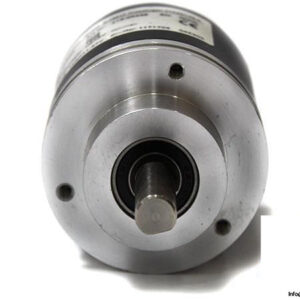

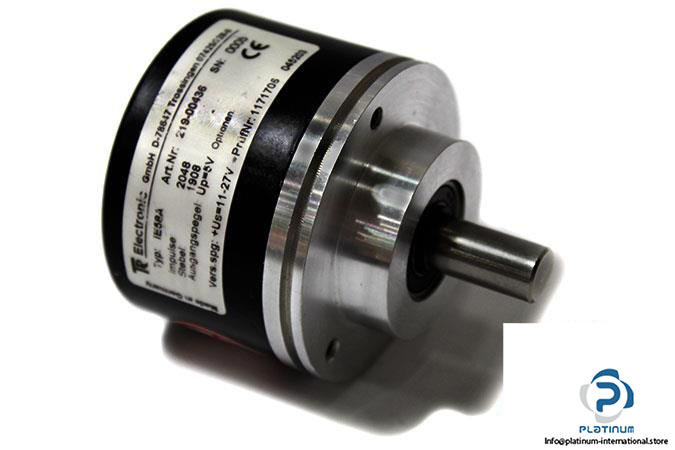

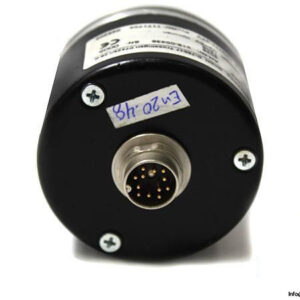

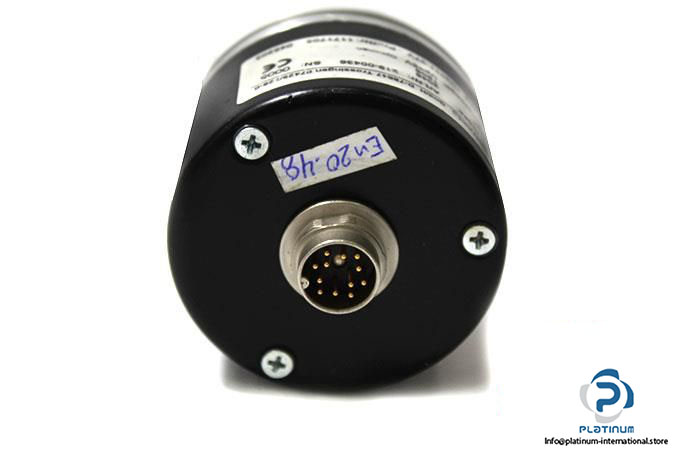

TR ELECTRONIC IE58A INCREMENTAL ENCODER

The TR ELECTRONIC IE58A is a high-precision incremental encoder engineered for reliable signal feedback in automation and industrial control systems. With its robust design and high-resolution impulse output, it ensures consistent performance even in demanding environments.

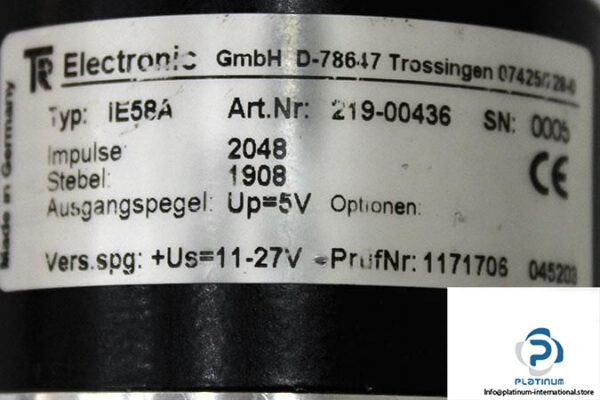

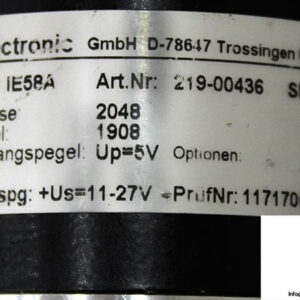

Manufacturer: TR ELECTRONIC
Type: Incremental Encoder
Model: IE58A
Art. Nr.: 219-00436
Ref No.: 1171706 045203 / 1908

Technical Information

• Shaft Diameter: 10 mm
• Impulse: 2048
• Voltage Supply: 11 / 27 VDC
• Output Voltage: 5 VDC
• Output Frequency: 160 kHz
• Protection Class: IP65
• Temperature Range: 0 / 70 °C
