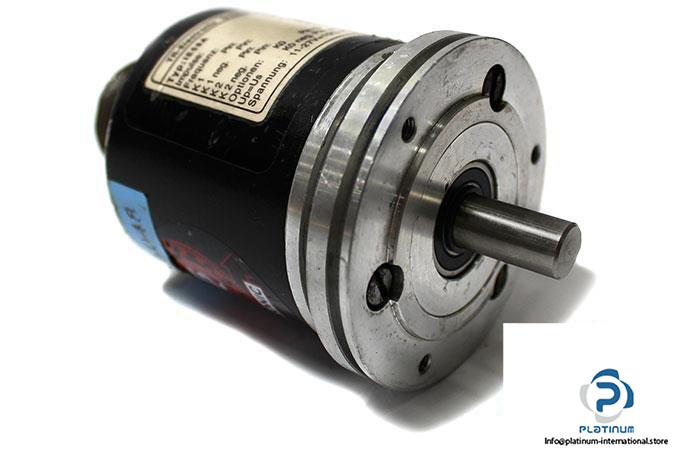

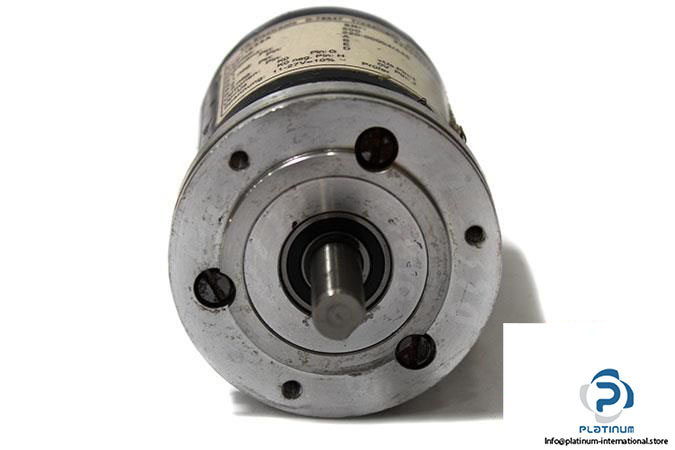

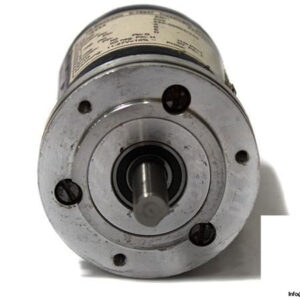

TR ELECTRONIC IE 58 A INCREMENTAL ENCODER

The TR ELECTRONIC IE 58 A is a high-resolution incremental encoder designed for precise motion control and industrial automation. Built to ensure accuracy, efficiency, and long-term reliability, it supports a wide voltage range and offers high pulse output.

Manufacturer: TR ELECTRONIC
Type: Incremental Encoder
Model: IE 58 A

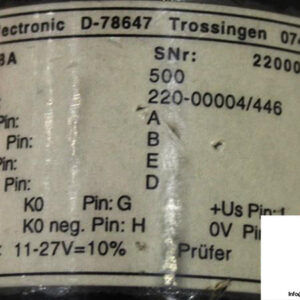

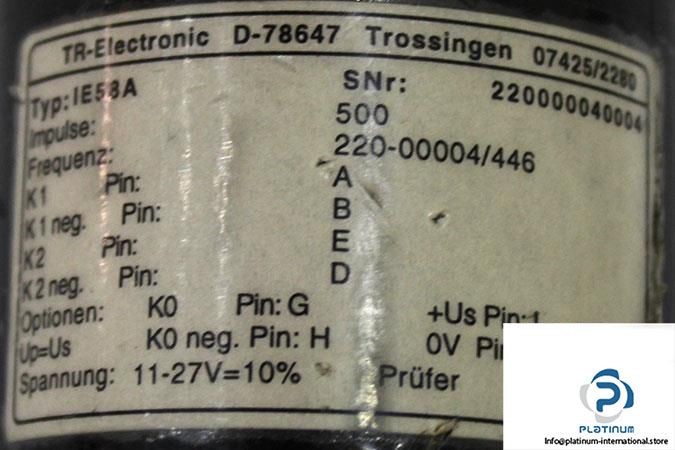

Art. Nr.: 220-00004/446
Serial No.: 220000040004

Technical Information

• Power Dissipation (No Load): 4 Watt
• Output: Push-Pull (11“27 V)
• Maximum Current: max. 30 mA
• Voltage Supply: 11“27 VDC or 5 VDC

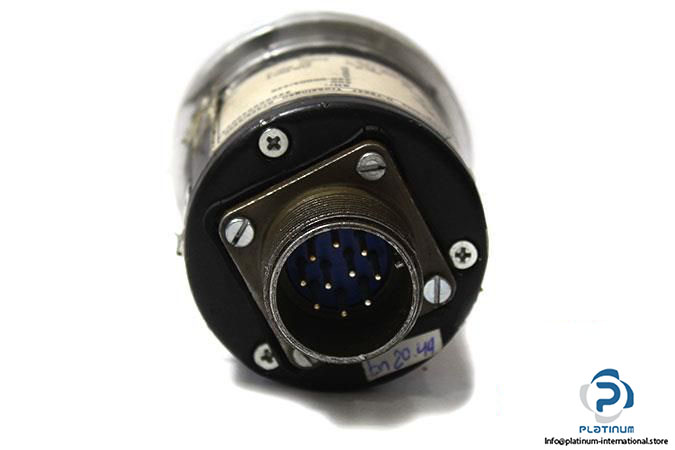

• Connection Type: Axial Connector Output
• Number of Pulses Per Revolution: 1 “ 10,000
• Operational Speed: 3000 RPM
• Operating Temperature: 60 °C
