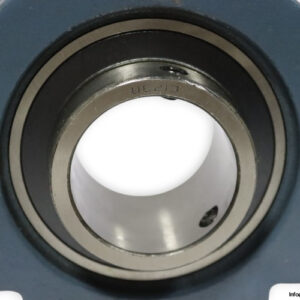

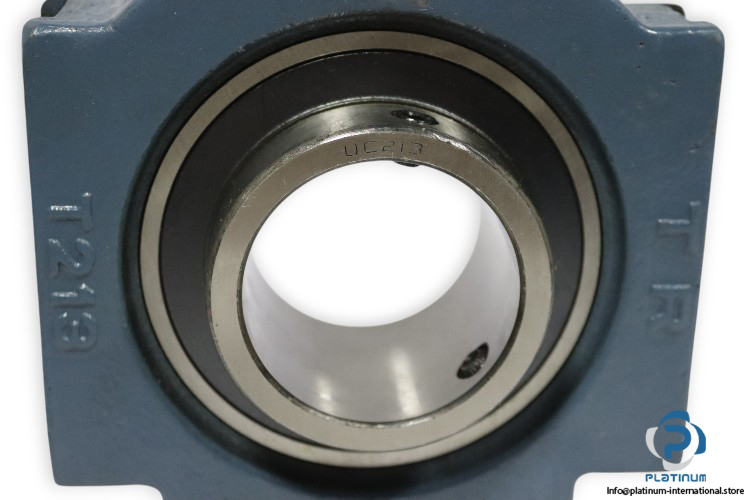

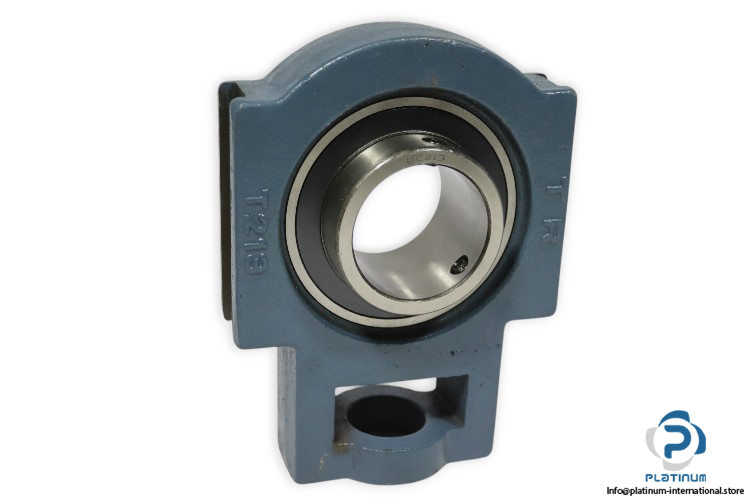

TR Take Up Ball Bearing Unit – UCT 213

The TR Take Up Ball Bearing Unit, Model UCT 213, is a robust and efficient bearing solution. It is ideal for various industrial applications requiring precise shaft alignment and reliable performance. Below are the detailed specifications:

• Manufacturer: TR
• Type: Take Up Ball Bearing Unit
• Model: UCT 213
• Housing No.: T213
• Bearing No.: UC213
• Shaft Diameter: 65 mm
• Overall Width: 70 mm
• Width of Inner Ring: 65.1 mm
• Overall Height: 167 mm
• Height of Attachment End: 111 mm
• Overall Length: 224 mm
• Diameter of Attachment Bolt Hole: 41 mm
