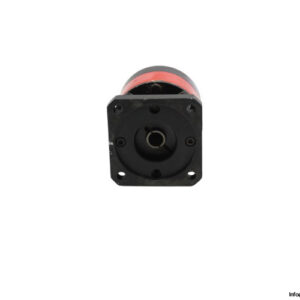

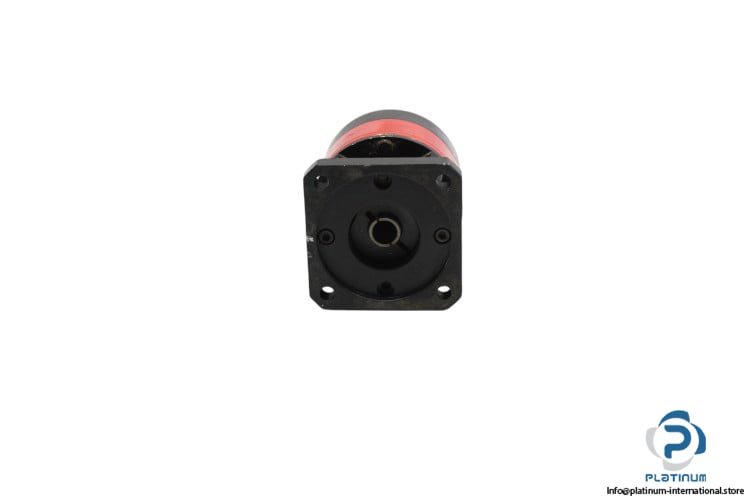

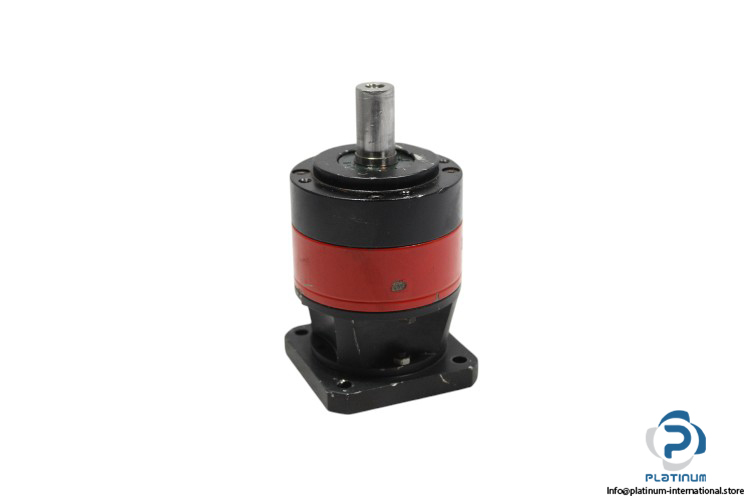

TVT MOTION / TRAMEC PLANETARY GEARBOX
The TVT Motion / Tramec Planetary Gearbox (Model: EP 75/1, Code No.: 2561825304, Ref No.: 60N001) is designed for high-performance applications requiring reliable torque transmission and compact design. With a 4:1 ratio and 1-stage configuration, it offers a maximum torque of 45 Nm and rated torque of 28 Nm, ensuring smooth and efficient operation in various industrial applications.

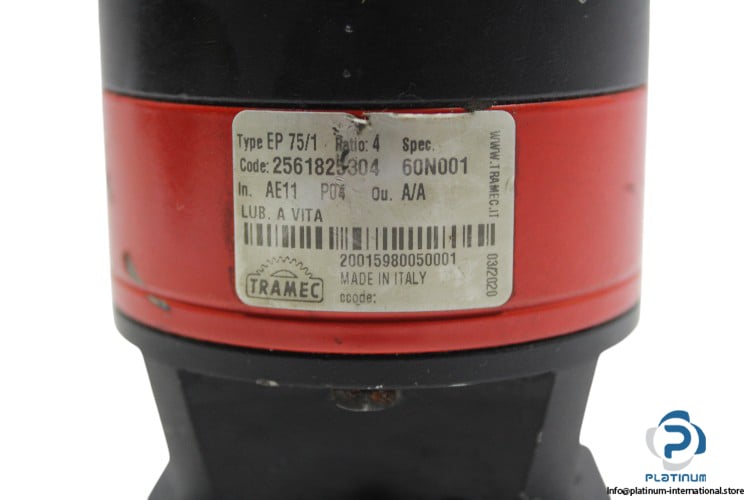

Manufacturer: TVT MOTION / TRAMEC
Type: Planetary Gearbox
Model: EP 75/1
Code No.: 2561825304
Ref No.: 60N001
Technical Specifications
- Ratio: 4
- Size: 75
- Stages: 1-stage
- Max. Torque (T2A): 45 Nm
- Rated Torque (T2N): 28 Nm
- Shaft Diameter: 16 mm
- Hollow Diameter: 11 mm
- Flange Diameter: 70 mm
