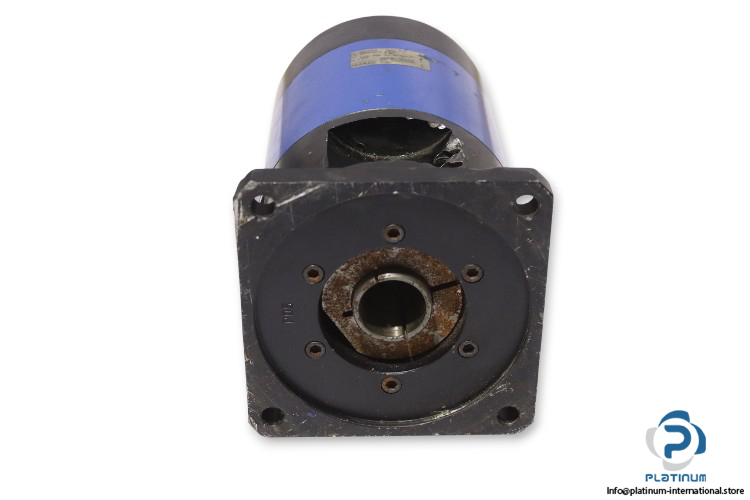

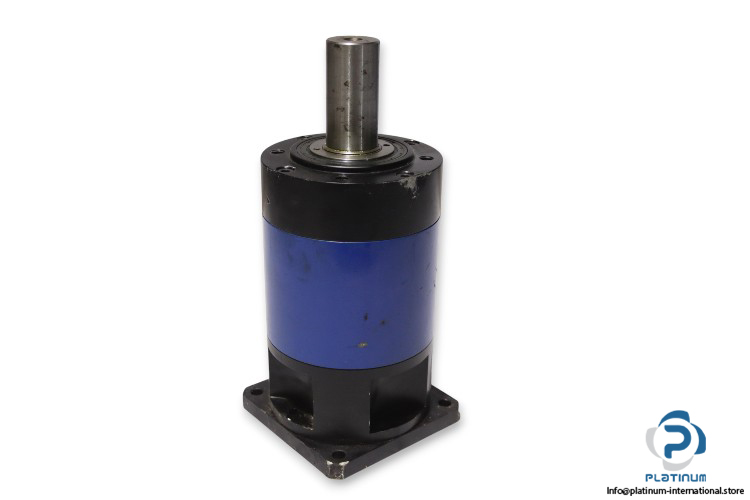

Tramec REP150/2 Planetary Gearbox
The Tramec REP150/2 is a high-performance planetary gearbox designed for precise torque transmission, smooth motion, and long-term reliability. It is built to meet demanding industrial and automation requirements where compact design and durability are essential.

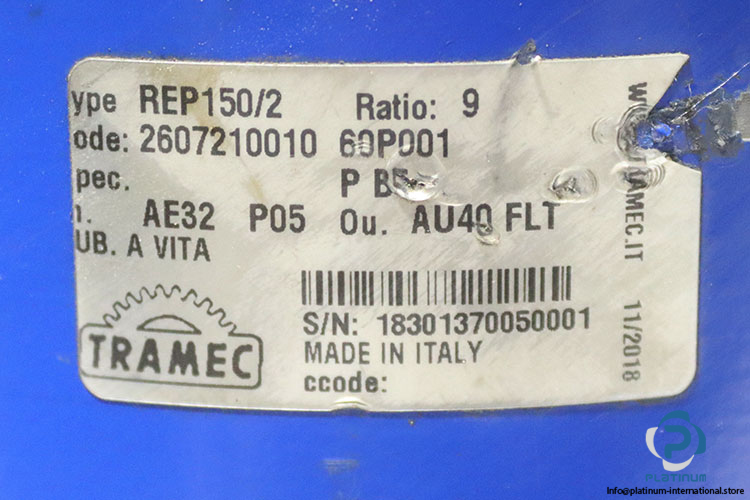

Manufacturer: Tramec
Type: Planetary Gearbox
Model: REP150/2
Code: 2607210010 60P001
Serial No.: 18301370050001
Technical Information
- Size: 150 with 2 reduction stages
- Ratio [i]: 9
- Torque Range T2M: 30 to 600 Nm
- Reduction Range: 3 to 343
- Number of Stages: 2
- Shaft: 40 mm
- Hollow Shaft: 32 mm
- Flange Diameter: 140 mm
Material and Construction
- The housing is made of special nitride steel to ensure strength, high reliability, and long service life.
- Input and output flanges are made of aluminum and available in two output flange types (FLT and FLQ).
- Shafts are manufactured from hardened and tempered alloy steel for superior wear resistance.
- Gears are made of case-hardened and tempered alloy steel with ground toothing for smooth and quiet operation.
- High-quality bearings are used to ensure long life and noiseless performance.
This gearbox offers outstanding precision, low backlash, and high torsional rigidity. It is an excellent choice for servo systems, automation lines, and mechanical drive assemblies where consistent output and reliability are critical. Its compact and robust construction allows easy integration into various applications such as robotics, conveyors, and motion control systems.
