Manufacturer: TRANSLINK

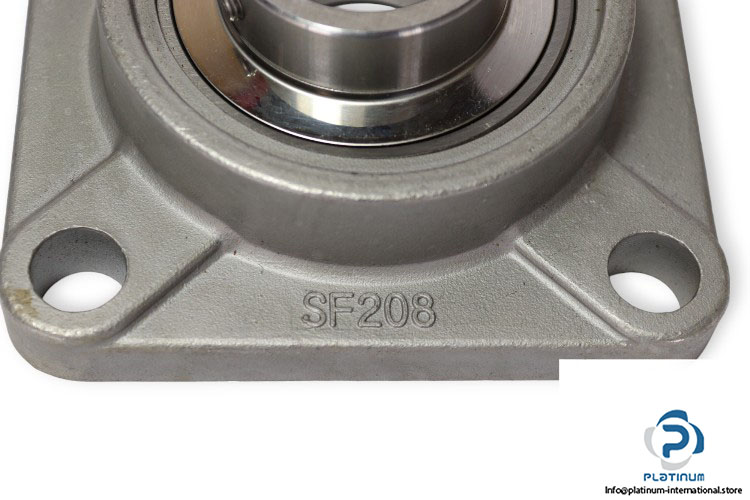

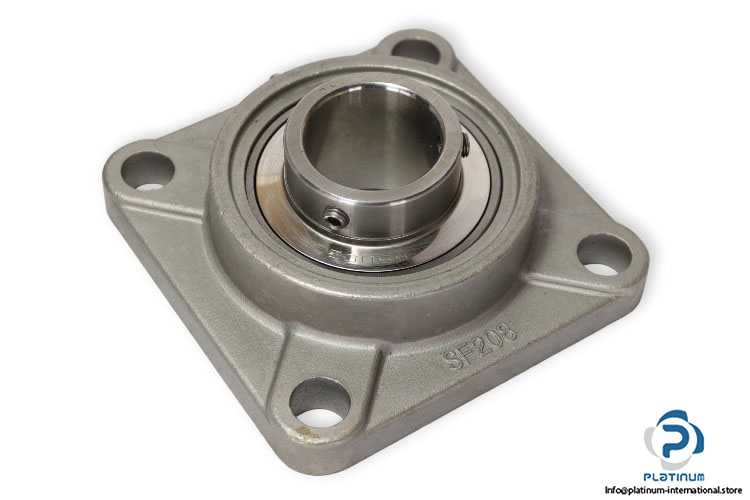

Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SUCSF 208
Housing No.: SF208

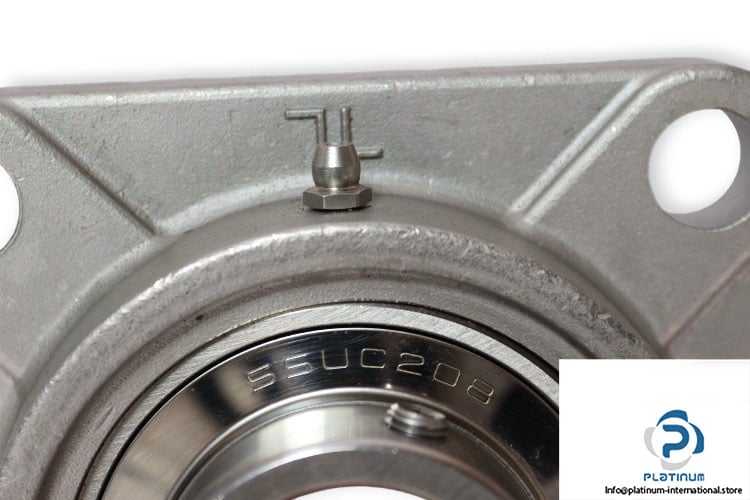

Bearing No.: SSUC208

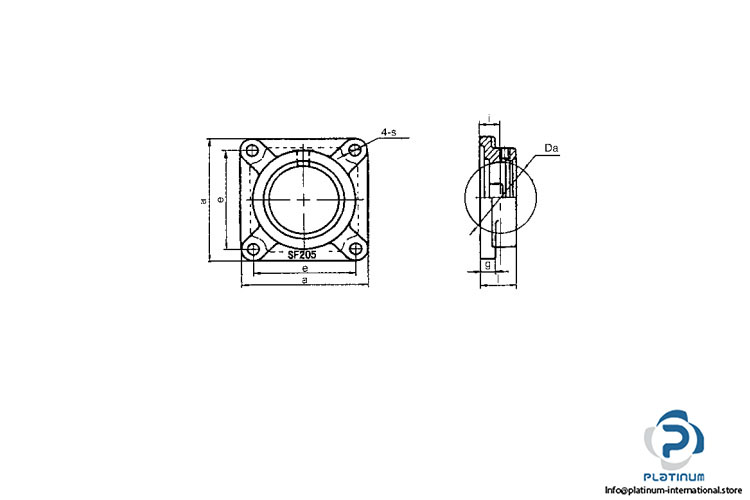

Dimensions
Shaft diameter d: 40 mm
Da: 80 mm
Overall length a: 130 mm
i: 36 mm
Housing foot height / flange height g: 14.3 mm
Overall Width I: 21 mm
Distance Between Attachment Bolts e: 101.6 mm
Mounting hole length s: 16 mm
Mounting: Four-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
