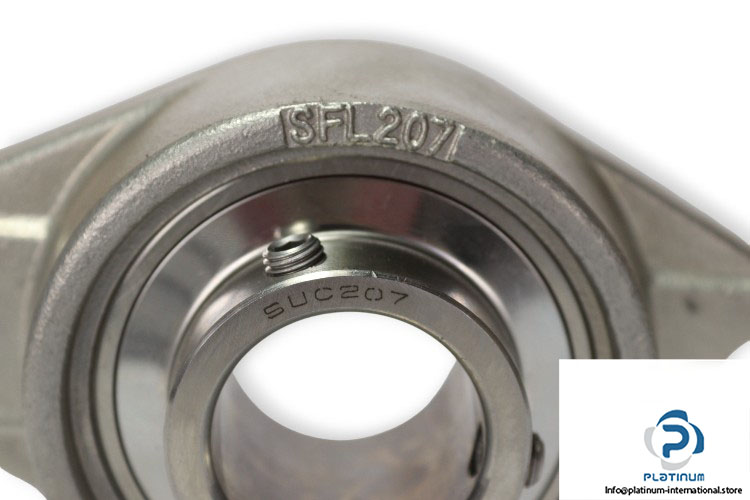

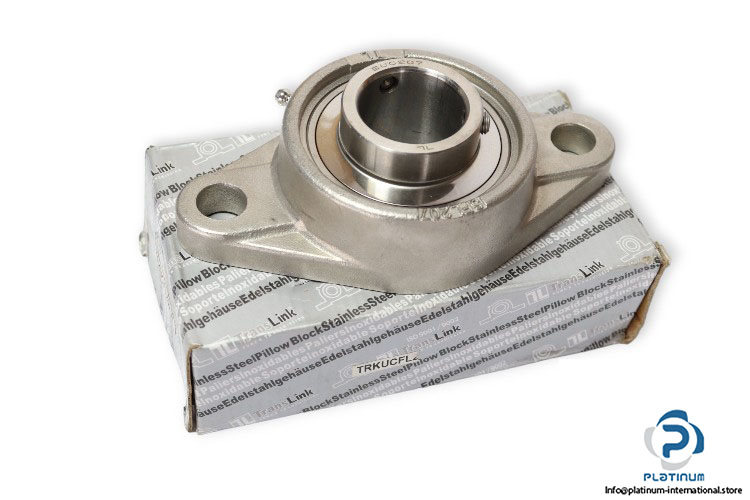

Manufacturer: TRANSLINK
Type: Stainless Steel Oval Flange Housing Unit
Model: SUCSFL 207
Housing No.: SFL207
Bearing No.: SUC207

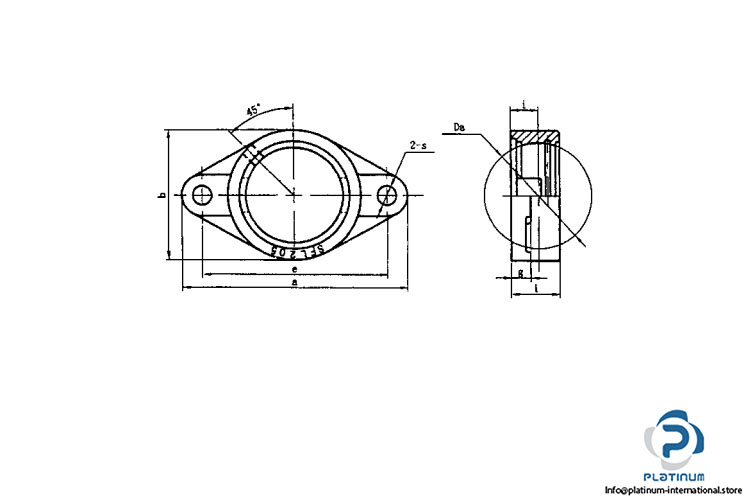

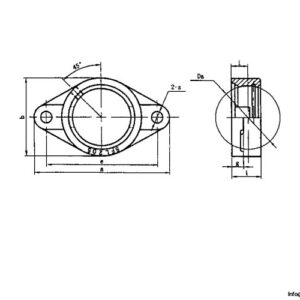

Dimensions
Bore Diameter d: 35 mm
Overall Length b: 90 mm
Overall Height a: 155.5 mm
Distance mounting surface to bearing center g: 14.3 mm
Housing height i: 19.1
Distance Between Attachment Bolts e: 130.2 mm
Mounting: Oval Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
