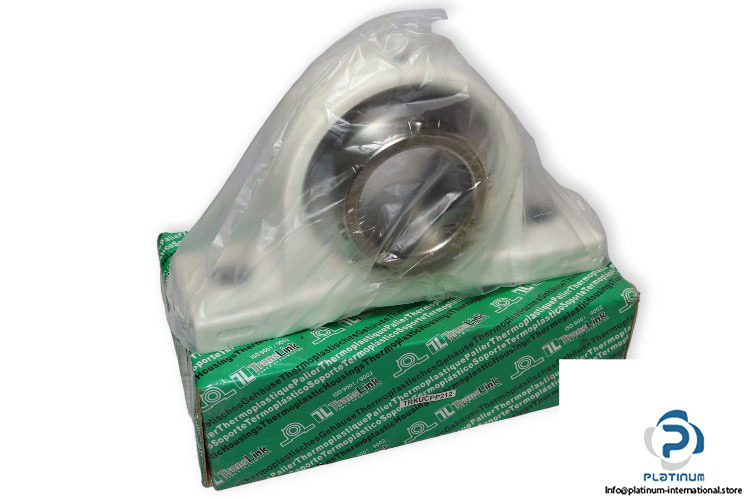

Manufacture: Translink
Type: Plastic Pillow Block Ball Bearing Unit

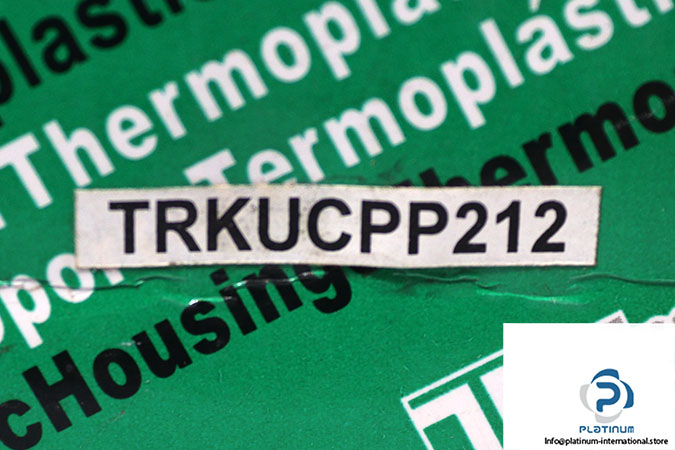

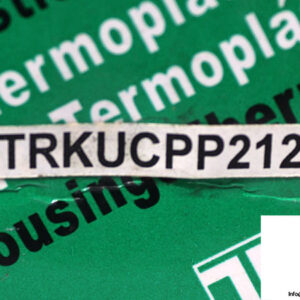

Model: TRK UCPP 212
Housing No.: PP212
Bearing No.: SSUC212

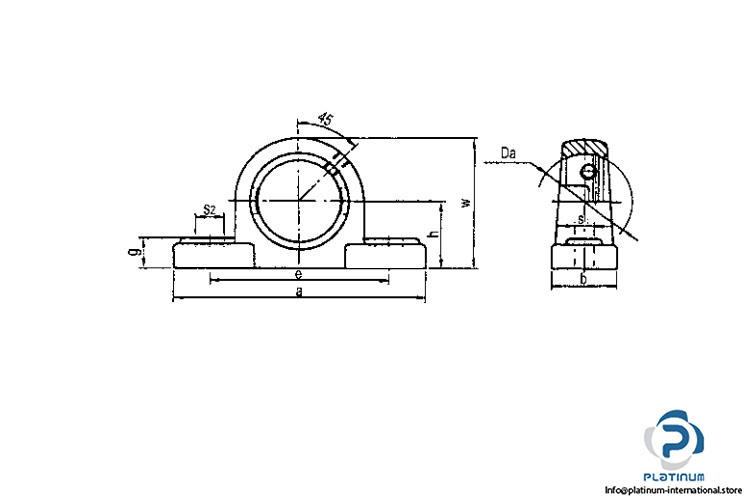

Dimensions
Bore Diameter d: 60 mm
Overall length a: 241 mm
Overall height w: 138 mm
Overall Width b: 70 mm
Distance Between Attachment Bolts e: 184 mm
Mounting hole length s2: 23 mm
Height of spherical seat center h: 69.8 mm
Housing type: Pillow Block
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
