Manufacturer: Trans Link

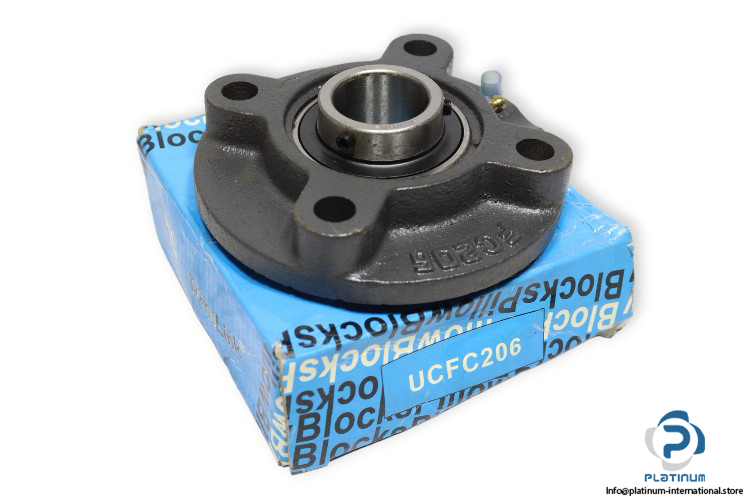

Type: Round flange ball bearing unit
Model: UCFC 206

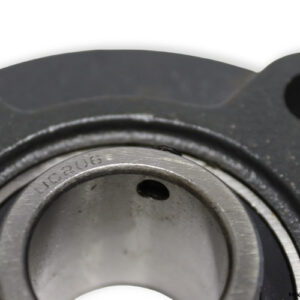

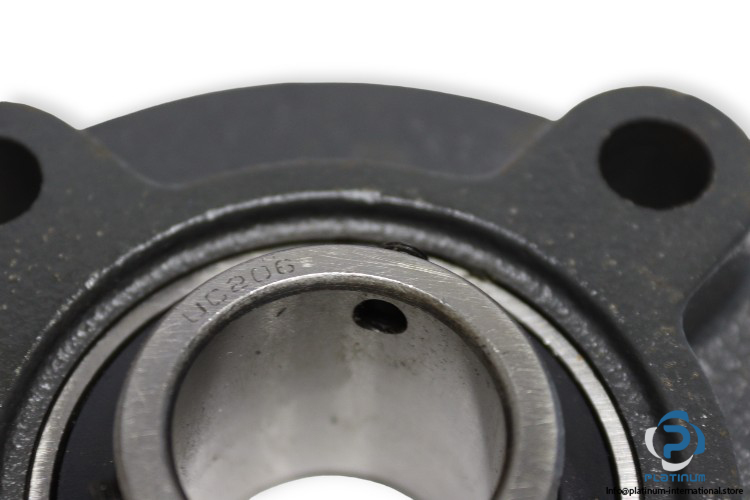

Bearing Number: UC206

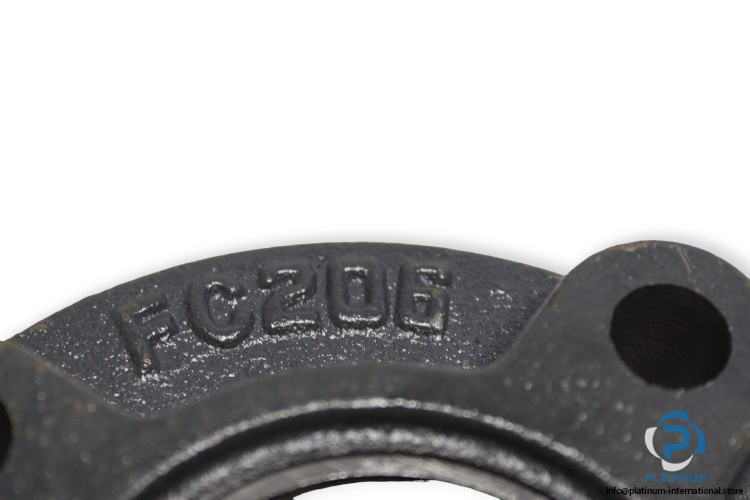

Housing Number: FC206

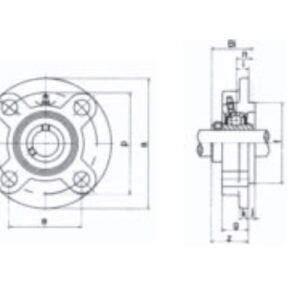

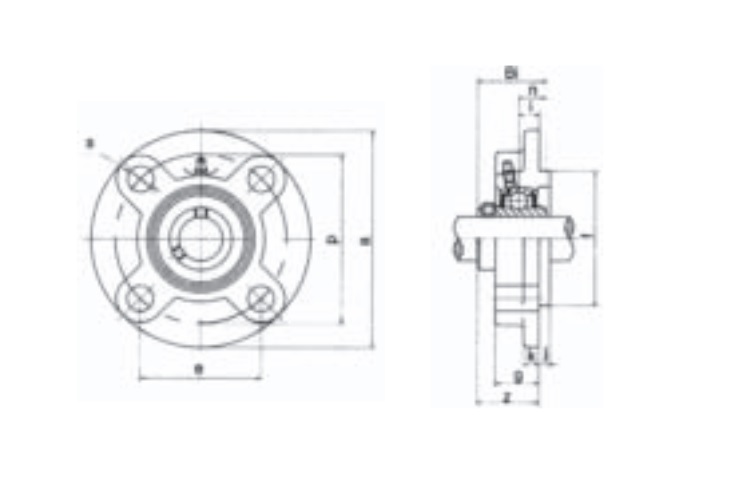

Dimensions
Bore Diameter d: 30 mm
Outside diameter a: 125 mm
Distance between attachment bolts e: 70.7 mm
Pitch diameter of attachment bolts p: 100 mm
Length of attachment bolt hole S: 12 mm
Width of inner ring Bi: 38.1 mm
Overall width Z: 32.2 mm
Locking Device: Set Screw
Material, housing: Cast iron
