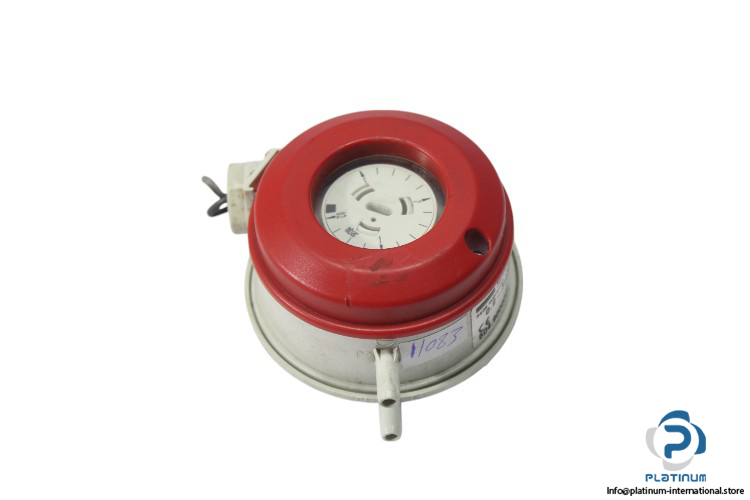

HUBA CONTROL 604.9000002 Relative and Differential Pressure Switch

The HUBA CONTROL 6049000002 Relative and Differential Pressure Switch is a highly reliable and precise switching device designed for monitoring air and neutral gases. It is engineered to handle a broad set point range and high operating pressure, making it ideal for industrial and HVAC applications.

• Manufacturer: HUBA CONTROL
• Type: Relative and Differential Pressure Switch
• Model: 604.9000002

Technical Information

• Series: 604
• Medium: Air and Neutral Gases
• Set Point Range: 0.2 / 3 bar
• Operating Pressure Max.: 75 bar
• Rated Voltage: 250 V AC / 30 V DC
• Rated Current: 5 / 4 A
• Switch Output: Change-Over (CO)
• Wetted Material: PC
• Pneumatic Connection: 5 mm
• Protection Class: IP54/65
• Temperature Range: -30 / 75 °C
• Length, Diameter: 52 x 80.8 mm
